12-tube bundle container ( 20ft ) | |||||
Tube | Item | Data | Cylinder | Item | Data |
Type | GSJ12-1066-CNG-25 | Working pressure | 25MPa | ||
Container weight | 17580Kg | Working temperature | -50~65 | ||
Filling weight | 2900Kg | Main material | 4142 | ||
Rated weight | 20480Kg | cylinder QTY | 12 | ||
Total volume | 12.792 M3 | ||||
Pressure for water pressure test | 37.5MPa | ||||
Rated weight | CNG | Dimension | 559x15.2x5400 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65 | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling volume | 4029 Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension | 6058x2438x2000 | Burst pressure | 37.5MPa | ||
Transporting | Highway combined transport | ||||
Design service life | Twenty years | Bursting disc device discharge aperture | ≥20 | ||
8-tube bundle container | |||||
Execution standard : ISO11120 Cylinder-design , structure and test of seamless and reusable steel tube with a capacity between 150 L to3000 L .ISO 668 Classification , dimensions and ratings of series 1 container | |||||
Tube | Item | Data | Cylinder | Item | Data |
Type | GSJ08-2450-CNG-25 | Working pressure | 25MPa | ||
Container quality | 24240 Kg | Working temperature | -50~65℃ | ||
Filling quality | 4410Kg | Main material | 30CrMoLX | ||
Rated weight | 28650Kg | cylinder QTY | 8 | ||
Major risk category | 2.1 | Total volume | 19.6M3 | ||
UN code | 1049 | Pressure for water pressure test | 37.5MPa | ||
Filling medium | CNG | Dimension(mm) | 559x11570 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65℃ | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling amount | 6174Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension (mm) | 12192x2438x1400 | ||||
Transporting | Highway combined transport | Bursting disc device discharge aperture | ≥20 | ||
Design service life | Fifteen years | ||||
Contactus formore productmodeland parameter details, support customization

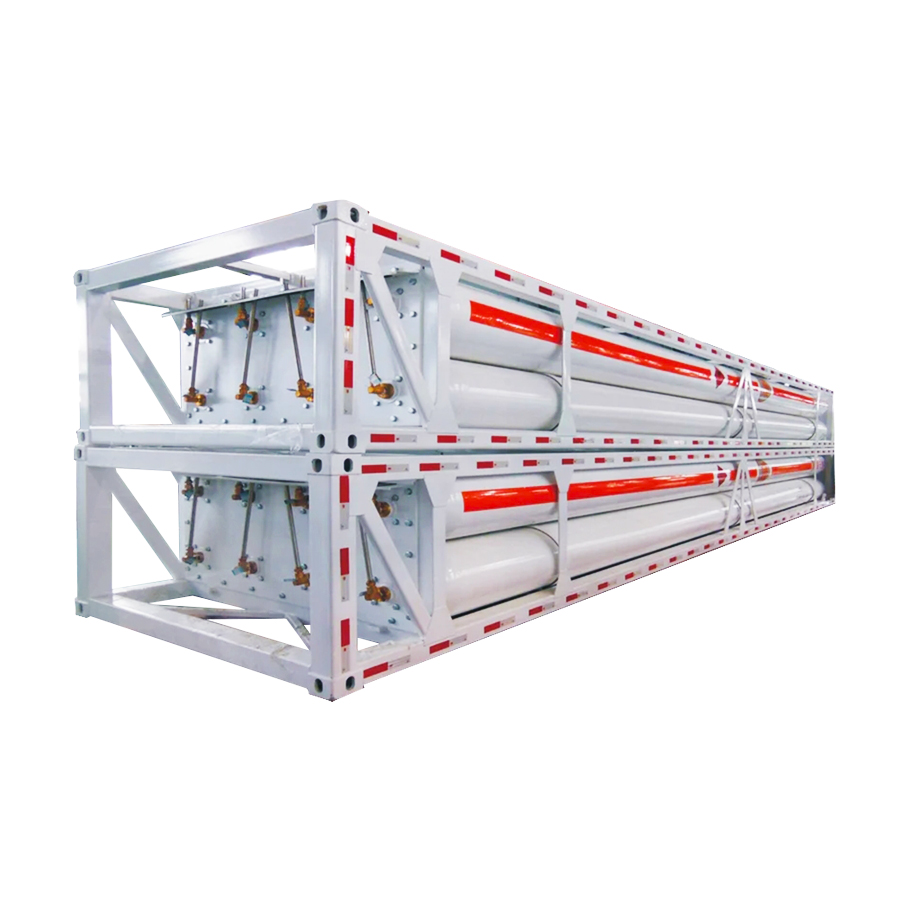

Compressed Natural Gas (CNG/H2) Tube Skid is used to transport large volumes of natural gas to areas where there is a lack of gas piping, CNG Tube Skid can supply CNG
for NGV stations, industry factories, power plants, or family use
High-Pressure CNG Tube Trailer Long-Distance CNG Transport Trailer Efficient Gas Transportation Solution
The CNG/H2 long-tube trailer is the gas source of the CNG filling substation. It also can transport CNG for the civil gas system.
It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It
has the following traits:
1. Import valves with high quality;
2. Advanced technology, fine manufacturing equipment, and a feasible quality insurance system.
3. Scientific design and logical load-bearing structure.
4. It can realize various combinations with CNG storage cylinder groups and can satisfy different requirements of customers.
Multi supporting Parts
It includes as belowEmergencyValvePressure GaugeDischarge valveThermometerSafety valveManhole cover
Painting
Surfaces Cleaned By Shot Blasting. oneEpoxy Coating And Acrylic FinishCoating.Durable Against Rust, SupportLonger, GoodLooking, and Service Life.
Automatic Welding
Submerged arc automatic weldingconstruction, key point reinforcement,and purposeful welding avoid someparts easier loss weldingaccording to experience supportvehicle
longer working withoutrepairing.
Our customers
About us
Jiangsu Huayan is a professional manufacturer of semi-trailer committed to improving quality and insisting on the principles of innovation, quality, professionalism, and mutual
benefit to satisfy customers. Strong technical force, superb manufacturing technology, equipment, and professional production team provide a solid backing quality assurance
for product innovation development and production.We have more than 20 years of export experience, we guarantee the highest quality by having control and supervision over
every single detail.
Advantage
1. Large filling capacity, lightweight, cost-effective;
2. High safety: the bottle material is prime quality, uniform force, and reasonable stress distribution;
3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;
4. A safety discharge device provides Both ends of the bottle body. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work
automatically to ensure the safety of property and personnel.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.
Packing & Delivery
FAQ
1. What are the main components of a CNG long tube trailer?
trailer
framework
large-cubage seamless steel cylinders
for safety cabin
back operation cabin
2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN.
5. What's the delivery time?
If they are standard models, then we can ship them out within 60 days after payment.
If customized, 110 days can be ready for shipment.
