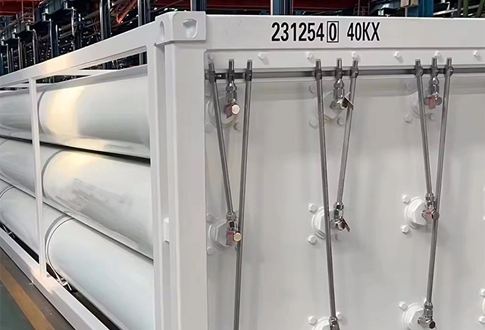

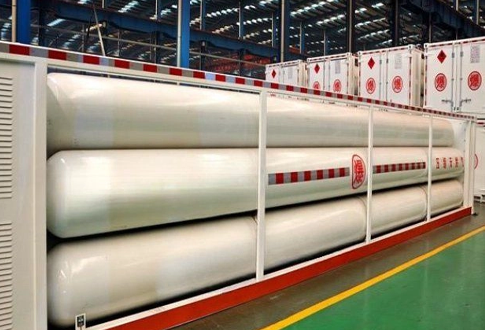

In the transition toward cleaner energy solutions, compressed natural gas (CNG) has become a widely adopted alternative to traditional fossil fuels. Its relatively low carbon footprint, abundant supply, and economic benefits have made it an attractive option for transportation, industrial processes, and domestic energy needs. However, delivering CNG from production sources to end users, especially in areas lacking pipeline infrastructure, presents two fundamental challenges: how to transport it safely and how to do so efficiently. Enter the CNG skid tube trailer—a specialized transport system engineered to carry high-pressure natural gas in large volumes. These trailers are not only designed to maximize gas payload but also to maintain the highest levels of operational safety under demanding conditions.
CNG is typically stored and transported at pressures of up to 25 megapascals (MPa), equivalent to over 3600 pounds per square inch (psi). This level of compression significantly increases the energy density of the gas, allowing for more compact transportation. However, it also introduces substantial risks, including:
Explosion hazards due to accidental leakage or structural failure
Over-pressurization caused by temperature fluctuations or mechanical defects
Environmental threats in the event of uncontrolled gas discharge
Physical danger to personnel from sudden pressure release or equipment malfunction
Transporting CNG without robust safeguards can be catastrophic. As such, the design and engineering of the transport container must anticipate and mitigate every possible point of failure.
Meeting safety standards is essential, but a transport solution also needs to be practical, cost-effective, and efficient. A well-designed CNG skid tube trailer should:
Maximize payload per trip, reducing the number of deliveries required
Allow for quick and safe loading/unloading, improving turnaround time
Adapt to harsh environmental conditions such as extreme temperatures or rugged terrain
Minimize maintenance and downtime, lowering total cost of ownership
Balancing these priorities requires a combination of high-performance materials, intelligent layout, precision manufacturing, and rigorous testing—all of which are embedded into the latest generation of CNG skid tube trailers.
To ensure secure and stable gas transportation, CNG skid tube trailers are equipped with multiple built-in safety features. These systems work in tandem to prevent pressure build-up, detect leaks, resist environmental degradation, and withstand mechanical stress during transit.
One of the key safety elements is the integration of redundant pressure control valves. Each gas cylinder is typically outfitted with:
Burst discs that rupture at a pre-set pressure to prevent catastrophic failure
Pressure relief valves that release excess gas in a controlled manner
Emergency shut-off valves to isolate sections in case of malfunction or fire
This layered approach ensures that even if one safety mechanism fails, others are ready to take over. Such systems greatly reduce the risk of gas leakage or explosion during transport, loading, or unloading.
Before a CNG trailer ever leaves the factory, it undergoes comprehensive quality assurance procedures, including:
Hydrostatic pressure testing, where each cylinder is filled with water and subjected to 1.5x its rated working pressure (usually up to 37.5 MPa)
Air-tightness testing, using precision leak-detection methods to ensure perfect sealing at all joints and valve connections
Only trailers that pass 100% of these tests are approved for sale. This rigorous process ensures that the end user receives a product that performs reliably in real-world conditions.
External corrosion can weaken the steel structure of the gas cylinders over time. To counter this, each CNG skid trailer is treated with a multi-layer coating process:
Sandblasting removes surface impurities and roughens the steel for better adhesion
Epoxy primer coating provides a corrosion-resistant base
Acrylic or polyurethane topcoat enhances UV resistance and weather durability
In addition, the trailer is mounted on a shock-absorbing skid structure designed to handle the dynamic forces encountered during road transport. This includes vibrations, sudden braking, or impact from road obstacles—all of which can threaten the integrity of the trailer if not properly absorbed.
The materials used in constructing CNG trailers play a critical role in their safety, durability, and performance.
The cylinders used in CNG skid trailers are commonly made from 30CrMo alloy steel. This material offers:
High tensile strength, allowing it to resist rupture under high pressure
Excellent fatigue resistance, ensuring long service life under cyclic loading
Superior weldability and machinability, allowing for precise manufacturing
Resistance to corrosion and chemical degradation
Unlike welded tubes, seamless steel cylinders eliminate weak points along the body, reducing the risk of crack propagation or failure under extreme pressure.
The operating environment for gas trailers can vary significantly—from freezing tundra to desert heat. CNG skid tube trailers are designed to function in a temperature range from –50°C to +65°C, ensuring performance in:
Arctic regions, where brittle materials would otherwise crack
Tropical or desert climates, where excessive heat can increase internal pressure
Materials and seals are selected for thermal expansion compatibility and elasticity at extreme temperatures, preventing pressure build-up or seal failure.
To enhance structural integrity during handling and transport, each trailer is equipped with:
Crash-resistant outer frames to protect gas cylinders from impact or rollover
Integrated lifting lugs and corner blocks, facilitating safe crane loading and stacking
Skid-mounted base that distributes weight evenly and prevents cylinder slippage
These features reduce mechanical strain on critical components and enable safer logistics during storage, transit, and deployment.
While safety is the top priority, efficiency is what makes CNG skid trailers practical and cost-effective for large-scale fuel distribution.
The internal layout of the cylinders follows a fluid dynamics-optimized configuration, reducing pressure drop and improving fill/discharge efficiency. Gas flow is directed through:
Manifolds with minimal dead space, allowing even pressure distribution
Streamlined piping and reduced resistance, shortening refueling time
Balanced inlet/outlet paths, avoiding turbulence and flow restrictions
This results in faster refueling and discharge operations, saving valuable time in high-demand environments such as commercial fleet depots or industrial refueling stations.
To further enhance operational efficiency, modern trailers come equipped with:
Quick-connect couplings that reduce hose attachment time
Multiport manifold systems enabling simultaneous discharge or refueling
Standardized interface fittings compatible with a wide range of equipment
These features are particularly valuable in mobile refueling stations, where uptime and speed directly impact productivity.
For ease of logistics and inventory management, the trailer’s skid frame is built to ISO container dimensions. This allows:
Stacking for storage or shipping, maximizing space utilization
Easy transport via ship, rail, or flatbed truck
Modular deployment, enabling users to add or remove units based on demand
Bulk purchasing and transportation become more economical, making it easier for gas suppliers to scale operations quickly.
The demand for clean, compressed natural gas continues to grow, especially in regions where pipeline infrastructure is limited or non-existent. The CNG skid tube trailer addresses this need by offering a high-capacity, high-safety, and highly efficient transport solution.
With its seamless high-strength cylinders, comprehensive safety mechanisms, thermal stability, and advanced fluid design, it stands as a modern engineering answer to the dual challenge of gas logistics: how to move gas safely—and how to do it efficiently.
For fleet operators, energy suppliers, and industrial users, investing in a proven CNG transport platform like those offered by Jiangsu Huayan International Trade Co., Ltd. is a strategic move toward safer and more sustainable fuel delivery.
