High-pressure gas tube bundle vehicle: mainly used to transport high-pressure gases such as compressed natural gas (CNG), hydrogen, and helium. For example, the CNG tube bundle vehicle is equipped with a gas storage cylinder, a decompression system and an anti-static device, which meets safety standards such as TSG R0005.

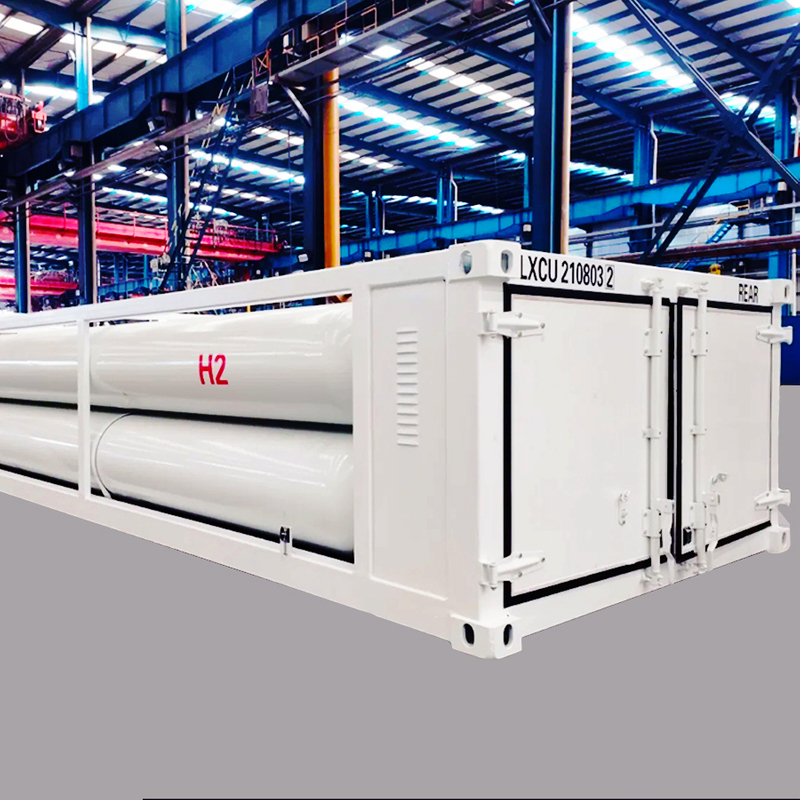

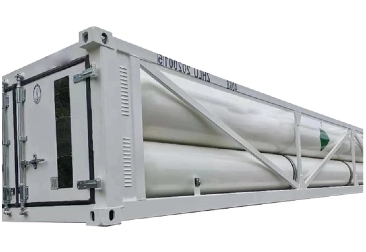

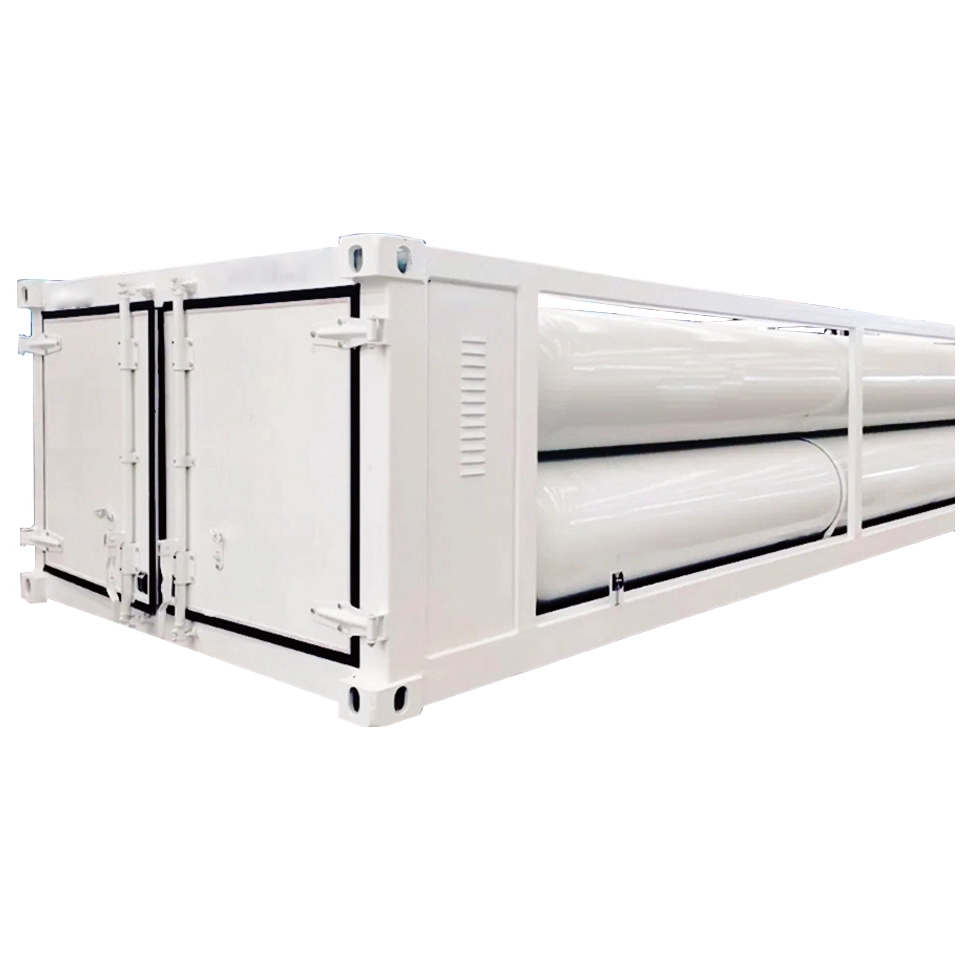

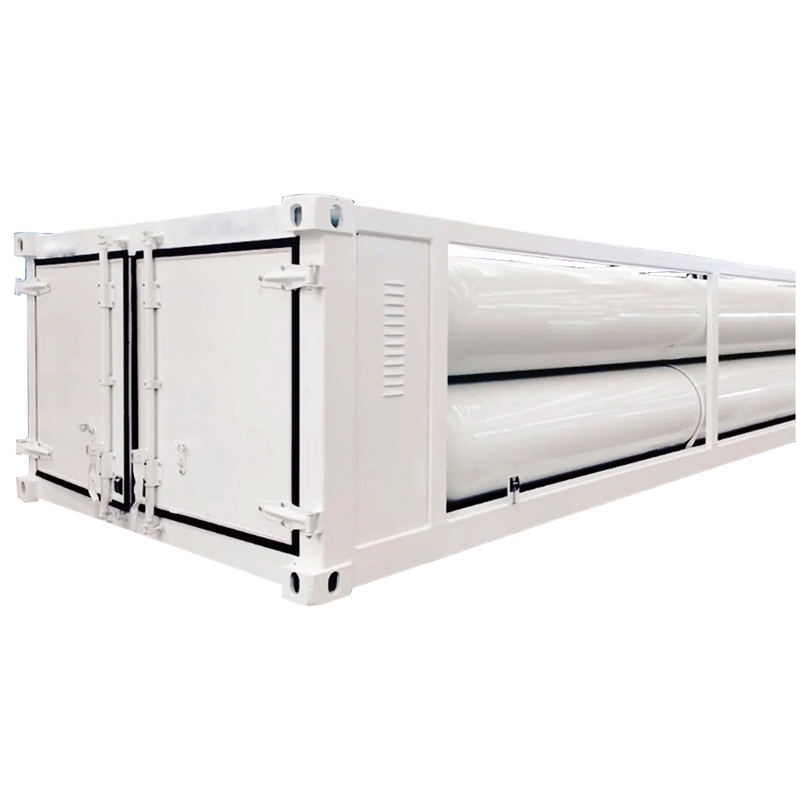

Compressed Natural Gas (CNG/H2) Tube Skid is used to transport large volumes of natural gas to areas where there is a lack of gas piping, CNG Tube Skid can supply CNG for NGV stations, industry factories, power plants, or family use
High-pressure CNG long-distance transport trailers are efficient natural gas transportation solutions
The CNG/H2 long-tube trailer is the gas source of the CNG filling substation. It also can transport CNG for the civil gas system. It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It has the following traits:
1. Import valves with high quality.
2. Advanced technology, fine manufacturing equipment, and a feasible quality insurance system.
3. Scientific design and logical load-bearing structure.
4. It can realize various combinations with CNG storage cylinder groups and can satisfy different requirements of customers.
Multi supporting Parts It includes as below:EmergencyValvePressure GaugeDischarge valveThermometerSafety valveManhole cover
Painting Surfaces Cleaned By Shot Blasting.OneEpoxy Coating And Acrylic FinishCoating.Durable Against Rust, Support
Longer, GoodLooking, and Service Life.
Automatic Welding Submerged arc automatic weldingconstruction, key point reinforcement,and purposeful welding avoid someparts easier loss weldingaccording to experience supportvehicle longer working withoutrepairing
The tube skid is made by 8-16（20FT 40FT） jumbo tubes, they are different weights and capacity.All products can be customized as required please contact us
9-tube skid container | |||||
Execution standard: | |||||
Tube | Item | Data | Cylinder | Item | Data |
Type | GSJ9-2450-CNG-25 | Working pressure | 25MPa | ||
Container weight | 27020 Kg | Working temperature | -50~65ºC | ||
Filling weight | 4961 Kg | Main material | 4142 | ||
Rated weight | 31981 Kg | Cylinder Q.ty | 9 | ||
Major risk category | 2.1 | Total volume | 22.05 M3 | ||
UN code | 1049 | Pressure for water pressure test | 37.5 MPa | ||
Filling medium | CNG | Dimension(mm) | 559x11,570 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65ºC | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling amount | 6495 Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension (mm) | 12192x2438x1890 | ||||
Transporting | Highway combined transport | Bursting disc device discharge aperture | ≥20 | ||
Design service life | Fifteen years | ||||
14-tube skid container | |||||
Execution standard: | |||||
Tube | Item | Data | Cylinder | Item | Data |
Type | GSJ14-2450-CNG-25 | Working pressure | 25MPa | ||
Container weight | 39,100 Kg | Working temperature | -50~65ºC | ||
Filling weight | 7,714 Kg | Main material | 30CrMoLX | ||
Rated weight | 46,814 Kg | Cylinder Q.ty | 14 | ||
Major risk category | 2.1 | Total volume | 39.2 M3 | ||
UN code | 1049 | Pressure for water pressure test | 37.5 MPa | ||
Filling medium | CNG | Dimension(mm) | 559x11,570 | ||
Gas tightness test pressure | 25MPa | Design temperature | 65ºC | ||
Pipeline water pressure test pressure | 37.5MPa | Medium property | Explosive | ||
Filling amount | 10,718 Nm3 | Bursting discs | Burst pressure | 37.5MPa | |
Dimension (mm) | 12192x2438x2591 | ||||
Transporting | Highway combined transport | Bursting disc device discharge aperture | ≥20 | ||
Design service life | Fifteen years | ||||
ABOUT US
Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (hydraulic modular trailers,gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers(heavy-duty low-bed,) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than 30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.
Cooperative Brand
Our Customers
Core Technology Team
Cooperation Process
After order
Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FAQ
1. What are the main components of a CNG long tube trailer?
trailer , framework , large-cubage seamless steel cylinders ,for safety cabin ,back operation cabin
2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models are in stock, we can ship them out within 10 -15 days after payment.
If customized, 15-20 days can be ready for shipment.
