HUAYAN
of single-bin carbon steel powder tank semi-trailer:
The design concept of short tank body, large tank body inclination angle, light weight, and minimum cross-sectional arc radius ensures better unloading performance, lighter weight, better tank pressure bearing, and special-shaped structure integral stamping forming head to reduce fluidization area. While increasing the tank body inclination angle, the volume is maximized, and the safety and reliability are high.
The tank body adopts high-quality high-strength plate specially used for tank trucks, taking into account strength and toughness, and has higher pressure resistance than other materials of competing products.
The frame adopts high-performance carbon steel plate to maximize the strength of the frame.
It is suitable for commercial mixing stations to transport cement, fly ash, and mineral powder, cement plants to transport cement, power plants to transport fly ash, and some other building materials companies to transport desulfurized gypsum powder and double powder.
| Single warehouse carbon steel powder tank semi-trailer | ||||||
| Basic parameters | Announcement model | AKL9400GFLD | AKL9400GFLC5 | AKL9401GFLB2 | AKL9400GFLC2 | AKL9400GFLC2 |
| bestsellers | ★★★★ | ★★★★★ | ★★★ | ★★★★★ | ★★★★★ | |
| Transportable goods | Cement, fly ash, mineral powder, lime powder, etc. | |||||
| Conveying distance | Level ≤ 10m, height ≤ 30m | |||||
| Length×width×height (mm) | 8520x2550x4000 | 8520x2550x3995 | 8700x2500x4000 | 8520x2550x4000 | 8800*2550*4000 | |
| Volume(m³) | 35 | 35 | 38 | 38 | 38 | |
| Reference weight (Kg) | 5900 | 6150 | 6480 | 6300 | 6300 | |
| tank | Tank material | high strength steel | ||||
| manhole cover | Carbon steel inner buckle type 2 pieces | |||||
| Tank top pressure relief valve | 1.5 inch ball valve | |||||
| Frame | Frame material | carbon steel | ||||
| traction pin | 50 swap | |||||
| Lifting cylinder | / | |||||
| Discharge pipeline | Discharge valve | 5 inch carbon steel butterfly valve 1 piece | ||||
| Discharge joint | 1 factory standard connector | |||||
| Discharge hose | 7 meters, 102 1 at both ends | |||||
| air intake pipeline | intake valve | 2 2-inch inlet balloon valves | ||||
| safety valve | DN40 full lift safety valve 2 pieces | |||||
| External air source | 1 piece of 2-inch male end quick connector | |||||
| appendix | pedal | Double side to end, carbon steel pattern plate | ||||
| lifting armrest | none | |||||
| Outrigger | Carbon Steel 24T Single Action Outrigger | |||||
| Spare tire rack | 1 piece, side type | |||||
| toolbox | Rear tool box | |||||
| side protection, rear protection, rear ladders, fenders | carbon steel | |||||
| Power form | Main vehicle takes power | |||||
| Electrical System | Electrical circuit | Standard seven-pin socket, 24V, red and yellow handshake, LED lamp | ||||
| ABS/relay valve | Factory standard 4S/2M / Factory standard 1:1.1 | |||||
| sub-pump | Four pairs and two odd | |||||
| Air tank | Aluminum alloy 2 pieces | |||||
| Running gear | suspension | Light steel plate suspension | ||||
| leaf spring | 3 pieces (90*24.5) | 4 pieces (90*22) | ||||
| bridge axis | Kaile 13T (220 brake) automatic arm equipped with alarm device | |||||
| tire | Factory standard 12R22.5, 10 pieces | Factory standard 12R22.5, 12 pieces | ||||
| steel ring | Factory standard 9.00X22.5, 10 pieces | Factory standard 9.00X22.5, 12 pieces | ||||
| Safety standards | Standard safety configuration | |||||

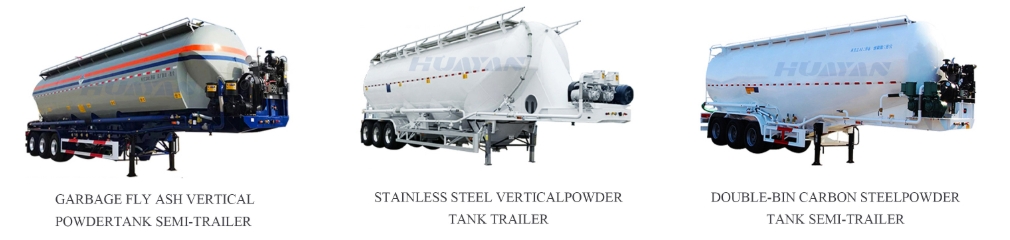

Advantages of vertical powder tank semi-trailer for garbage fly ash:
Safety design: lightweight perspective window + protective cover, top unloading structure reduces the probability of blockage, and meets the 9 types of hazardous dust transportation specifications; customized configuration: increase the tank inclination angle to match the fly ash repose angle, the spherical crown head improves pressure resistance, and the conical bottom structure optimizes space utilization and reduces material residue.
Core advantages of stainless steel vertical powder tank semi-trailer:
Lightweight perspective window + protective cover, top unloading structure reduces the probability of blockage and meets the 9 types of hazardous dust transportation regulations; the tank body inclination angle is increased to match the fly ash repose angle, the spherical crown head improves the pressure resistance, and the conical bottom structure optimizes space utilization and reduces material residue.
Advantages of double-compartment carbon steel powder tank semi-trailer:
Material upgrade: Food-grade The double-compartment design (51/56 cubic meters) and 12-meter wheelbase balance the volume and flexibility, with a small turning radius on narrow roads and no slipping when climbing in mountainous and sloped scenes; the suspension and leaf springs are specially strengthened, and the high-strength steel is compressive and load-bearing, with a low failure rate to ensure a high attendance rate.

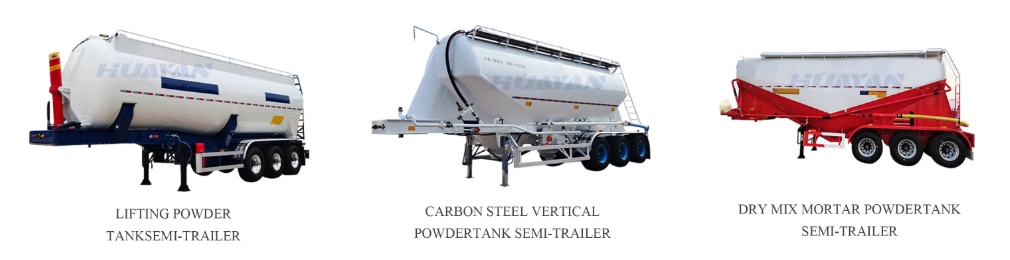

Advantages of lifting powder tank semi-trailer:
The lightest 45 cubic meter all-aluminum powder tank weighs only 6.6 tons. The tank body is made of 5083 aluminum alloy plate, which takes into account both strength and toughness. The frame is made of high-performance aluminum alloy extrusion profiles and a steel-aluminum hybrid structure to adapt to harsh road conditions. Later maintenance is simple and fast. It is suitable for chemical fiber enterprises to transport PTA powder, polyethylene, polypropylene, DP-based powder, PVC powder, and PA6/PE/PA66 particles and other materials.
Advantages of carbon steel vertical powder tank semi-trailer:
Short tank body + minimum cross-sectional arc radius design, fast unloading speed and less residue, special-shaped integrated stamped head reduces fluidization area and has better pressure bearing capacity than similar products; high-strength plate, with both strength and toughness, is suitable for the transportation of conventional building materials such as cement and fly ash.
Advantages of dry-mixed mortar powder tank semi-trailer:
The large-angle tank optimizes material flow, ensures stable mortar performance, and is compatible with a variety of aggregates; the ceramic lining in the vulnerable parts of the discharge pipe extends its service life by 50%, and its deadweight is 300-500kg lighter than similar products, with lower fuel consumption.

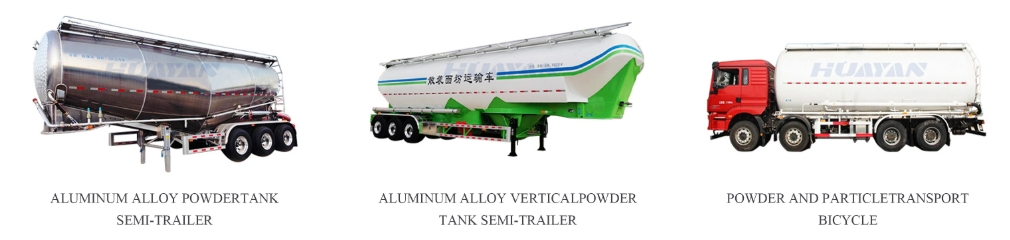

Advantages of aluminum alloy powder tank semi-trailer:
The tank body is made of 5083 aluminum alloy plate, and the frame is a steel-aluminum hybrid structure. Its deadweight is as light as 6.6 tons, and its compressive resistance is better than that of traditional carbon steel. The automated production line ensures welding accuracy, and the modular design facilitates later maintenance, making it suitable for the efficient transportation of conventional materials such as cement and mineral powder.
Advantages of aluminum alloy vertical powder tank semi-trailer:
The dead weight is 7.4 tons, the standard load capacity is 32.6 tons, and the volume is 1 cubic meter larger than that of competing products of the same size; the steel-aluminum hybrid frame is connected by Hake rivets, which can adapt to harsh road conditions and is widely used in the transportation of materials such as flour and polyethylene granules.
Advantages of Powder and Granule Transport Bikes:
Compact wheelbase + small turning radius, easy to enter and exit narrow scenes such as rural roads and construction sites; circular section tank + high-strength plate, strong pressure bearing capacity, excellent climbing ability, suitable for high-density materials such as sand, gravel, mineral powder, etc.
We provide the following services:
Service&Solution for unconventional transport equipment
One-stop Service includes consultation, design, production, training, and operational support for solving abnormal transport issues.
Outsourcing of operators is available.
Our commitment extends beyond being just a manufacturer of heavy transport equipment. We aspire to be your long-term partner,offering top-notch products and services, accompanied by extensive technical training and ongoing assistance.
No matter where you are, we ensure access to a diverse selection of specialized transport equipment, delivering cost-effective solutions tailored to your requirements.

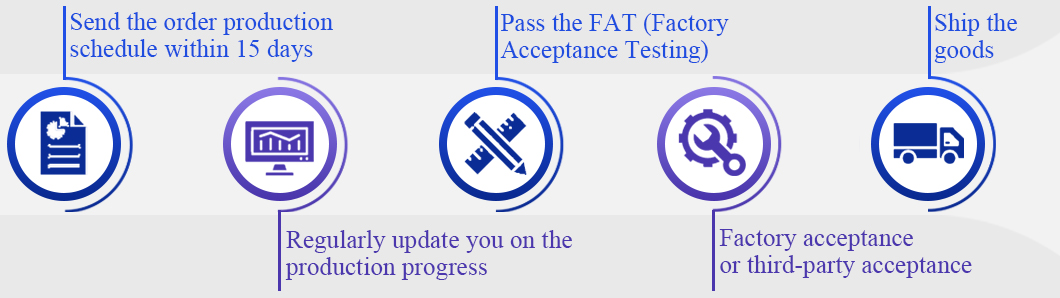

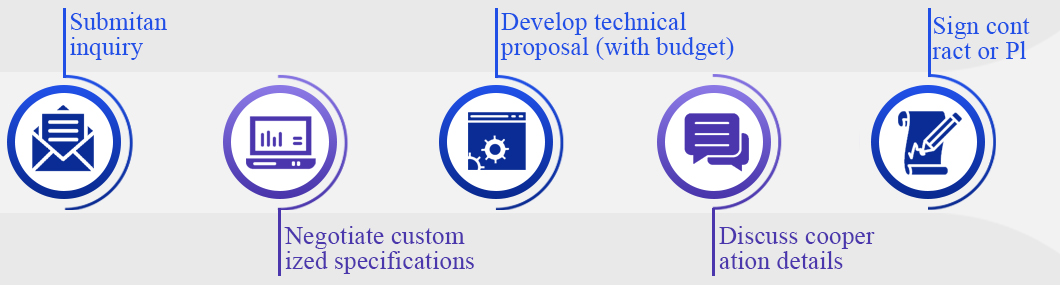

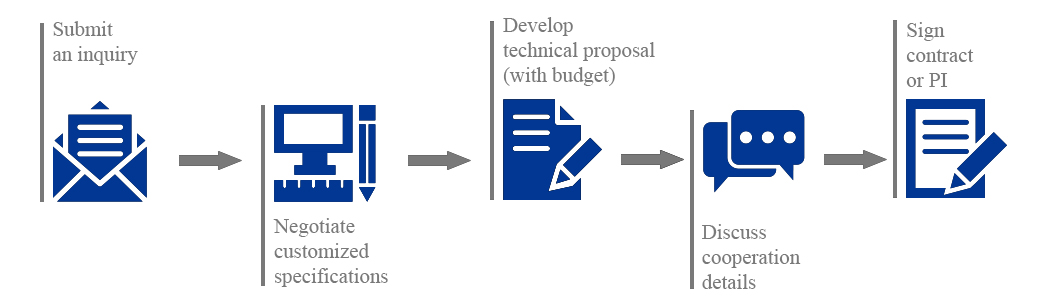

Cooperation Process

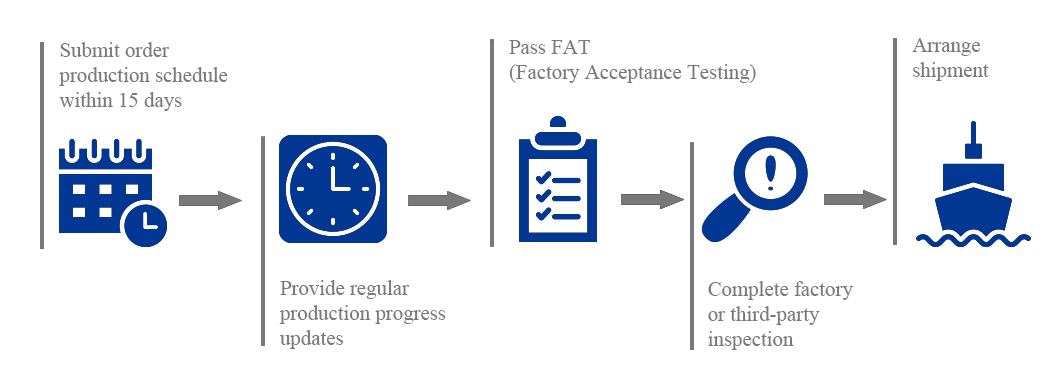

After order

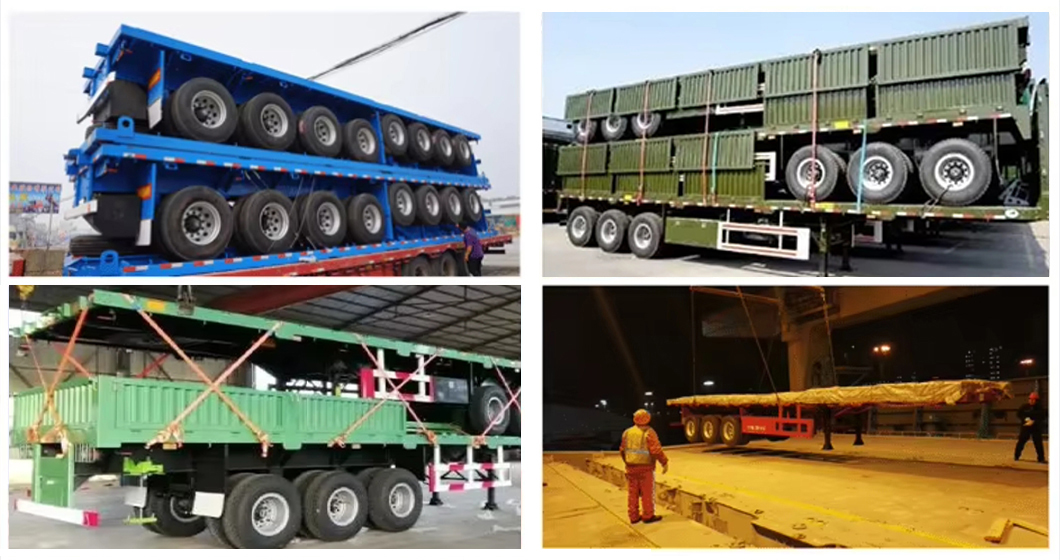

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FQA
1. What are the main components of a CNG long tube trailer?
trailer
framework
large-cubage seamless steel cylinders
for safety cabin
back operation cabin
2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN.
5. What's the delivery time?
If they are standard models, then we can ship them out within 60 days after payment.
If customized, 110 days can be ready for shipment.
