| Quantity: | |
|---|---|

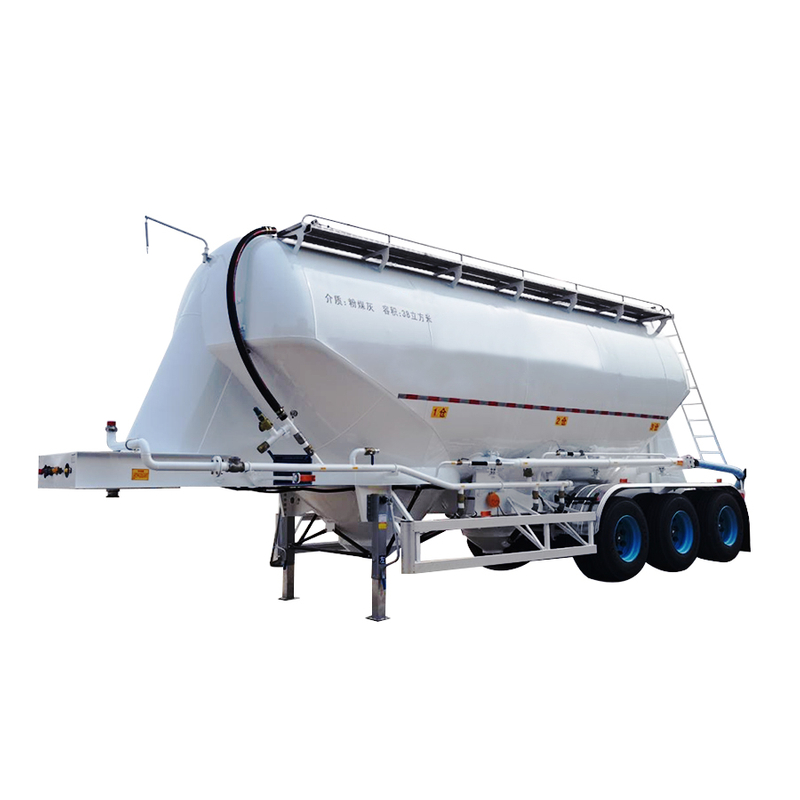

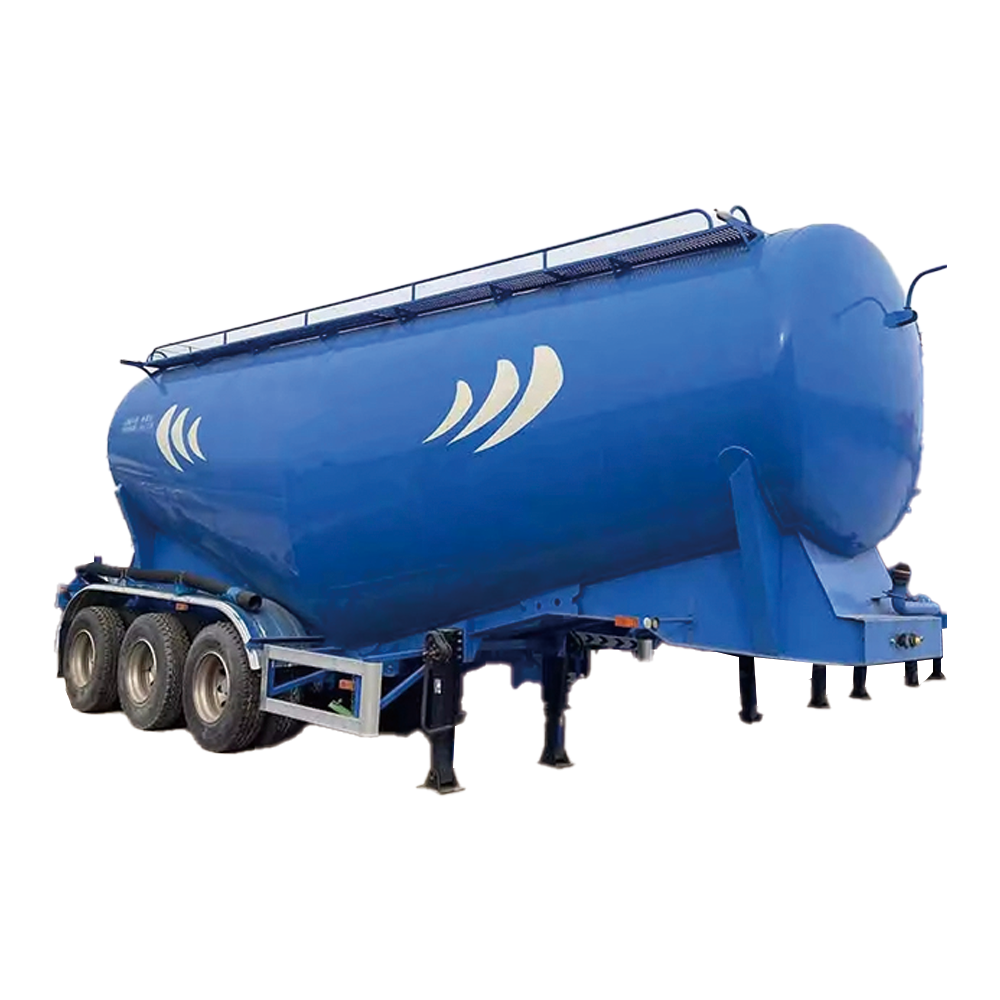

Single warehouse carbon steel powder tank semi-trailer | ||||||
Basic parameters | Announcement model | AKL9400GFLD | AKL9400GFLC5 | AKL9401GFLB2 | AKL9400GFLC2 | AKL9400GFLC2 |
bestsellers | ★★★★ | ★★★★★ | ★★★ | ★★★★★ | ★★★★★ | |
Transportable goods | Cement, fly ash, mineral powder, lime powder, etc. | |||||
Conveying distance | Level ≤ 10m, height ≤ 30m | |||||
Length×width×height (mm) | 8520x2550x4000 | 8520x2550x3995 | 8700x2500x4000 | 8520x2550x4000 | 8800*2550*4000 | |
Volume(m³) | 35 | 35 | 38 | 38 | 38 | |
Reference weight (Kg) | 5900 | 6150 | 6480 | 6300 | 6300 | |
tank | Tank material | high strength steel | ||||
manhole cover | Carbon steel inner buckle type 2 pieces | |||||
Tank top pressure relief valve | 1.5 inch ball valve | |||||
Frame | Frame material | carbon steel | ||||
traction pin | 50 swap | |||||
Lifting cylinder | / | |||||
Discharge pipeline | Discharge valve | 5 inch carbon steel butterfly valve 1 piece | ||||
Discharge joint | 1 factory standard connector | |||||
Discharge hose | 7 meters, 102 1 at both ends | |||||
air intake | intake valve | 2 2-inch inlet balloon valves | ||||
safety valve | DN40 full lift safety valve 2 pieces | |||||
External air source | 1 piece of 2-inch male end quick connector | |||||
appendix | pedal | Double side to end, carbon steel pattern plate | ||||
lifting armrest | none | |||||
Outrigger | Carbon Steel 24T Single Action Outrigger | |||||
Spare tire rack | 1 piece, side type | |||||
toolbox | Rear tool box | |||||
side protection, rear protection, rear ladders, fenders | carbon steel | |||||
Power form | Main vehicle takes power | |||||
Electrical System | Electrical circuit | Standard seven-pin socket, 24V, red and yellow handshake, LED lamp | ||||
ABS/relay valve | Factory standard 4S/2M / Factory standard 1:1.1 | |||||
sub-pump | Four pairs and two odd | |||||
Air tank | Aluminum alloy 2 pieces | |||||
Running gear | suspension | Light steel plate suspension | ||||
leaf spring | 3 pieces (90*24.5) | 4 pieces (90*22) | ||||
bridge axis | Kaile 13T (220 brake) automatic arm equipped with alarm device | |||||
tire | Factory standard 12R22.5, 10 pieces | Factory standard 12R22.5, 12 pieces | ||||
steel ring | Factory standard 9.00X22.5, 10 pieces | Factory standard 9.00X22.5, 12 pieces | ||||
Safety standards | Standard safety configuration | |||||
Contactus formore productmodeland parameter details, support customization
WE OFFER THE FOLLOWING SERVICES:
* Service&Solution for unconventional transport equipment
* One-stop Service includes consultation, design, production, training, and operational support for solving abnormal transport issues.
* Outsourcing of operators is available.
Our commitment extends beyond being just a manufacturer of heavy transport equipment. We aspire to be your long-term partner,offering top-notch products and services,
accompanied by extensive technical training and ongoing assistance.
No matter where you are, we ensure access to a diverse selection of specialized transport equipment, delivering cost-effective solutions tailored to your requirements.
This series of cement tank trucks adopts a lightweight design (self-weight 6.6-7.7 tons), and maximizes the volume through a short wheelbase, a large-angle tank body and a
special-shaped stamped head. The improved fluidization angle allows the unloading speed to reach 2 tons/minute with a low residual rate. The tank body is made of
high-strength steel/stainless steel, with ceramic lined pipes and mirror polishing technology, and has wear-resistant and anti-wall properties. The vehicle optimizes load
distribution through a low center of gravity design, a steel-aluminum hybrid frame and a multi-cone layout, improving driving stability and adaptability to complex road
conditions. The patented structure enables one vehicle to be used for multiple purposes, and can transport media such as mortar/mineral powder/flour. The short wheelbase
allows for flexible turning, and the standard mixing device ensures continuous operation efficiency.
Our customers

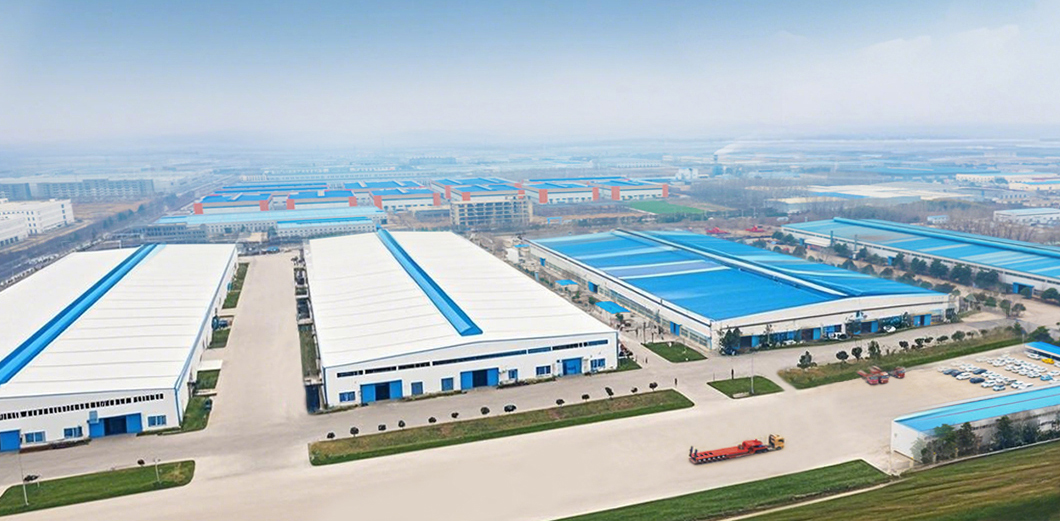

About us
Jiangsu Huayan is a professional manufacturer of semi-trailer committed to improving quality and insisting on the principles of innovation, quality, professionalism, and mutual
benefit to satisfy customers. Strong technical force, superb manufacturing technology, equipment, and professional production team provide a solid backing quality assurance
for product innovation development and production.
We have more than 20 years of export experience, we guarantee the highest quality by having control and supervision over every single detail.
Advantage
1. Large filling capacity, lightweight, cost-effective;
2. High safety: the bottle material is prime quality, uniform force, and reasonable stress distribution;
3. Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;
4. A safety discharge device provides Both ends of the bottle body. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work
automatically to ensure the safety of property and personnel.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.

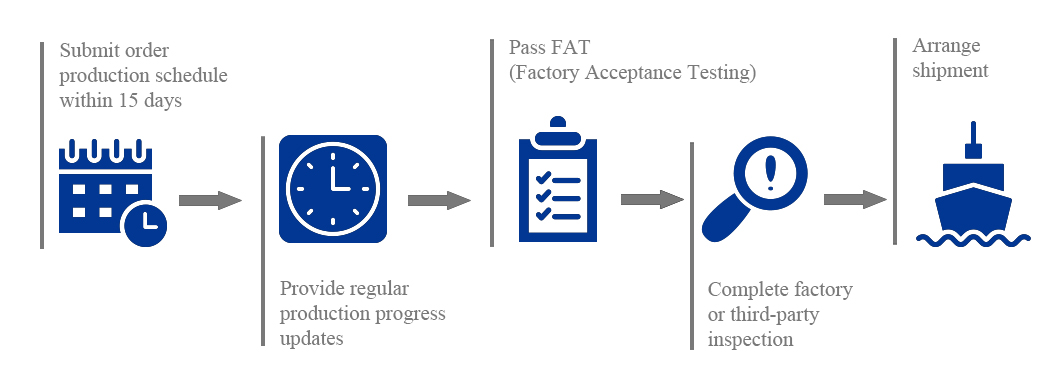

Packing & Delivery
FAQ
1. What are the main components of a CNG long tube trailer?
trailer
framework
large-cubage seamless steel cylinders
for safety cabin
back operation cabin
2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN.
5. What's the delivery time?
If they are standard models, then we can ship them out within 60 days after payment.
If customized, 110 days can be ready for shipment.
