Brand: Huayan
Origin： China
Capacity: 500Nm3/h ~ 3000Nm3/h
Medium: Natural Gas
Inlet Pressure: 3-20MPa
Outlet pressure: ≤25Mpa
Control method: PLC+ touch screen+ soft start
Storage Capacity: ≥1.8m3
Installation Type: Skid-mounted
Advantages: Mobile, Containerized and integrated,
Easy to transport
Application: It supplies vehicle fuel,
reducing strain on urban gas networks
| Quantity: | |
|---|---|
HUAYAN

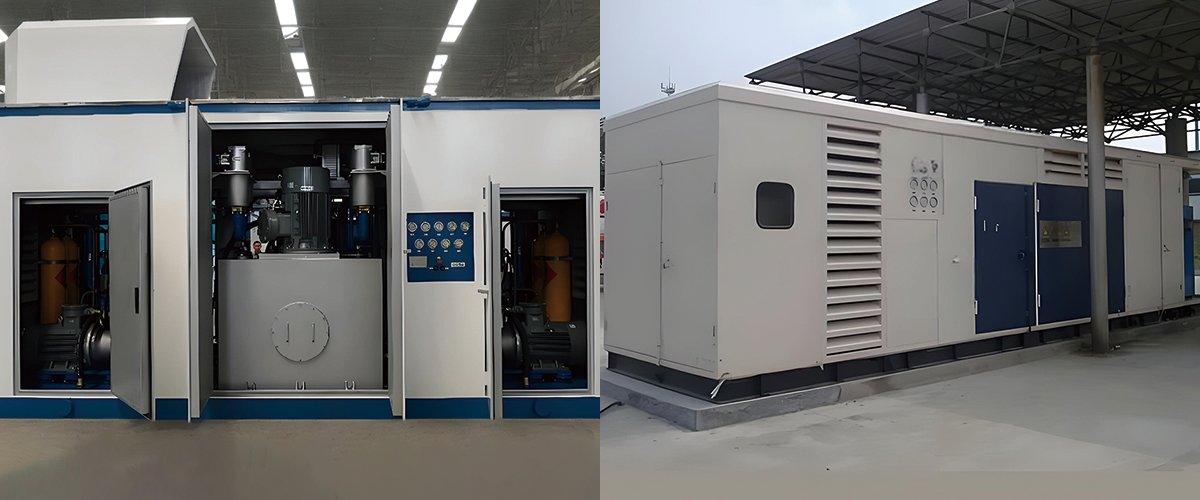

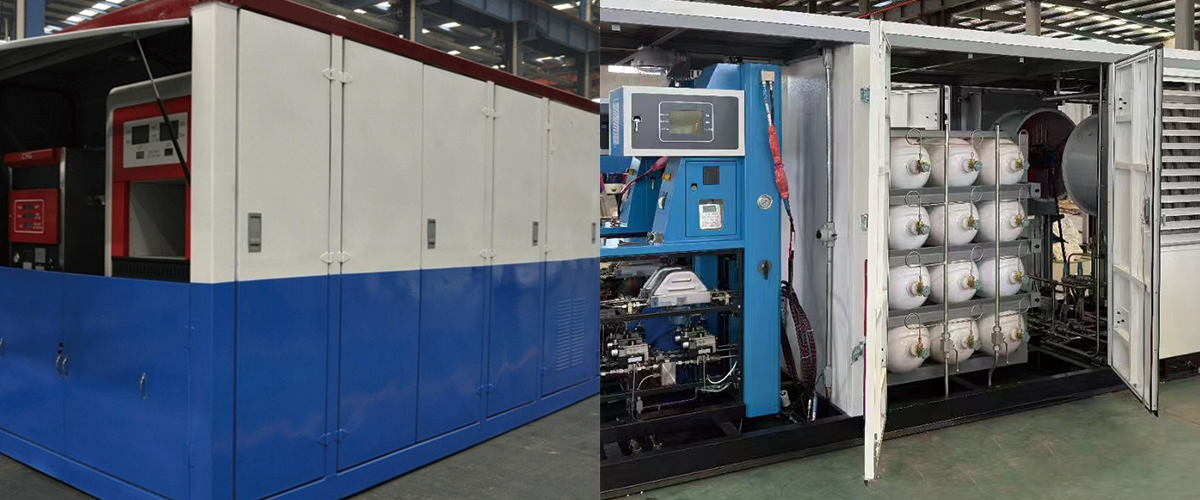

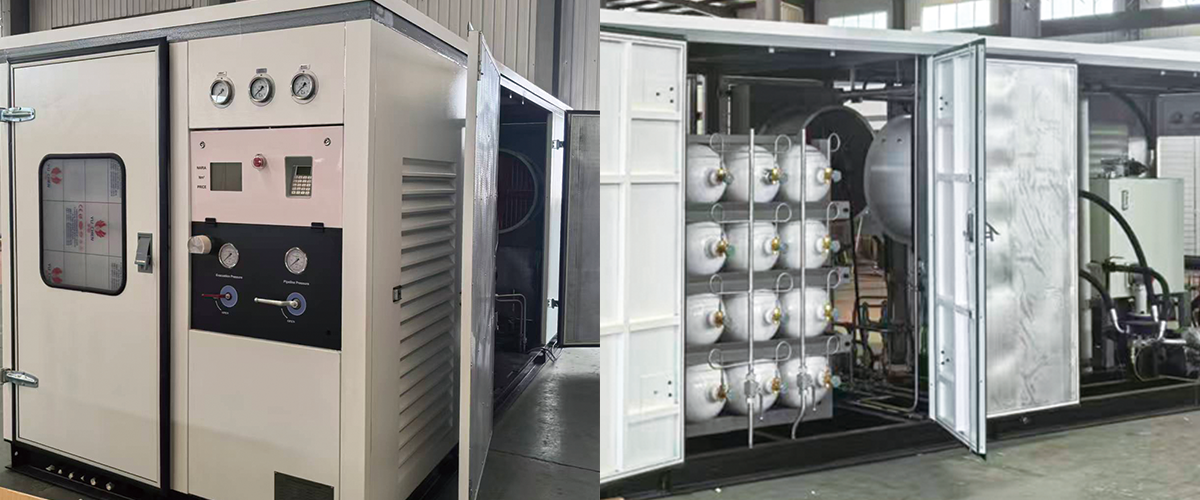

CNG INTEGRATED STATION ONE-STOP SERVICE
Our company has the design & fabrication capacity of Hydrogen stationary storage tanks, including above-ground, underground, mounded, etc. All kinds of tanks could be customized according to the customers' requirements.

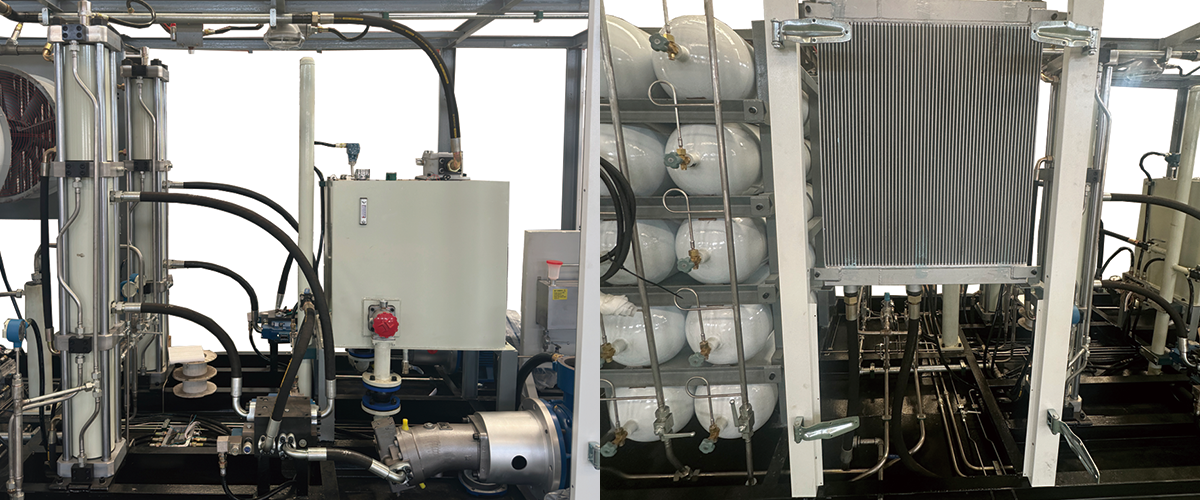

An integrated skid is an integration of a hydrogen refueling station, such skid integrates the hydrogen compressor, cooling system, buffer tank and refueling/metering/control systems, thus achieving hydrogen energy compression, metering, and refueling. With an adoption of modular and integrated design, the hydrogen refueling station with integrated skid can facilitate equipment's overall transportation and installation, thus effectively saving costs for station establishment. Integrated skids of 200 kg/d or 500 kg/d can be manufactured according to customers' demands.
The compressed natural gas is transported to the CNG filling station by the CNG transfer trailer. First, the natural gas in the cylinder of the tanker enters the sale machine through the low-pressure pipeline bundle for charging. When the tank pressure is lower than the charging pressure of the vehicle, the high-pressure gas in the mediumpressure cylinder group is started
to enter the gas dispenser through the mediumpressure pipeline bundle for charging. When the pressure in the medium pressure pipeline bundle is lower than the charging pressure of the vehicle, the high- pressure gas in the high-pressure cylinder group is entered into the gas dispenser through the high- pressure pipeline bundle for charging; and when the pressure in the high pressure cylinder group is lower than 20MPa (adjustable), the compressor automatically starts to charge the high-pressure cylinder group.
1.Portability and Flexibility
Our Mobile CNG refilling stations are designed for easy transportation and quick deployment, making them ideal for locations with limited access to traditional refueling infrastructure.
2.Cost-Effective
By eliminating the need for permanent infrastructure, our mobile stations offer a more affordable solution for areas with fluctuating or low fuel demand, significantly reducing installation and maintenance costs.
3.Quick and Easy Setup
These stations can be set up and operational within a short period, providing immediate access to compressed natural gas (CNG) in various locations without requiring extensive groundwork.
4.Reliable Power Supply
Our mobile CNG refilling stations are equipped with high-quality compressors and dispensers, ensuring reliable and efficient refueling for vehicles.
5.Environmentally Friendly
By promoting the use of compressed natural gas, which produces lower emissions than gasoline and diesel, our stations support cleaner, greener energy solutions.
6.Low Operational Costs
The mobile units are designed for efficiency, reducing fuel consumption and maintenance needs, leading to lower long-term operating costs.
7.Scalability and Adaptability
Our mobile stations can be customized to meet the specific needs of different locations, offering scalable solutions for various vehicle fleets, from small urban fleets to large industrial operations.
8.Versatile Applications
These stations are suitable for a wide range of industries, including transportation, logistics, public transportation, and more, enabling companies to fuel their CNG-powered vehicles wherever needed.
9.Easy Operation and Maintenance
Designed for user-friendly operation, these stations feature intuitive controls, making them easy to manage, while our full range of support services ensures efficient maintenance and operation.
10.Safety and Compliance
Our mobile CNG refilling stations are built with safety features and comply with international standards, ensuring secure and reliable operation for all users.
| ltem | Technical Parameters | |||||
| Model | HYCZ-JS-500 | HYCZ-JS-1000 | HYCZ-JS-1000 | HYCZ-JS-1500 | HYCZ-JS-2000 | HYCZ-JS-3000 |
| Capaclty | 500Nm3/h | 1000Nm3/h | 1000Nm3/h | 1500Nm3/h | 2000Nm3/h | 3000Nm3/h |
| Motor Power | 15kw | 30kw | 30Kw | 55Kw | 75kw | 75+30kw/55+55kw |
| Total power | ≤25kw | ≤40kw | ≤40Kw | ≤64Kw | ≤83Kw | ≤115Kw |
| Working medium | Compressed Natural Gas (CNG) | |||||
| dimensions | 8100x2430x2590(mm) | 8100x2430x2590(mm) | 8100x2430x2590(mm) | 8100x2430x2590(mm) | 8100x2430x2590(mm) | 8100x2430x2590(mm) |
| Gross weight | 14000kg | 18500kg | 6100kg | 6500kg | 6900kg | 7300kg |
All products can be customized as required please contact us
ABOUT US
Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (hydraulic modular trailers,gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers(heavy-duty low-bed,) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than 30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements
Cooperative Brand
Our Customers
Core Technology Team
Cooperation Process
After order
Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FAQ
1. What are the main components of a cNG mobile station?
1.CNG unloading system
2.CNG compressor system
3.CNG storage system
4.Safety system
5.Water-proof and noise-reduction system
2. What products can you provide?
Heavy equipment trailers (Hydraulic modular trailers, wind blade trailers, gooseneck low-bed trailers, etc.)
High-pressure gas bundle trailer(CNG/hydrogen tube trailer...)
Gas Equipment(CNG PRMS, LNG Storage Tank, Vaporizer, LNG vaporizer skid, LNG station...)
Gas compressors(we have been a professional manufacturer of compressors for 40 years)
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness
4. Do you provide a one-stop service so l can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5.What's the delivery time?
If the standard models are in stock, we can ship them out within 70 days after paymentIf customized. 60 days can be ready for shipment.
