Brand: Huayan
Origin： China
Product type: CNG container skid
Single cylinder capacity: 2000L-3000L(customized)
Working pressure: 20 MPa/25 MPa
specifications: Ф356mm and Ф559mm etc
Number of gas cylinders: 8-12 per bundle, customized
| Quantity: | |
|---|---|
HUAYAN
ABOUT US

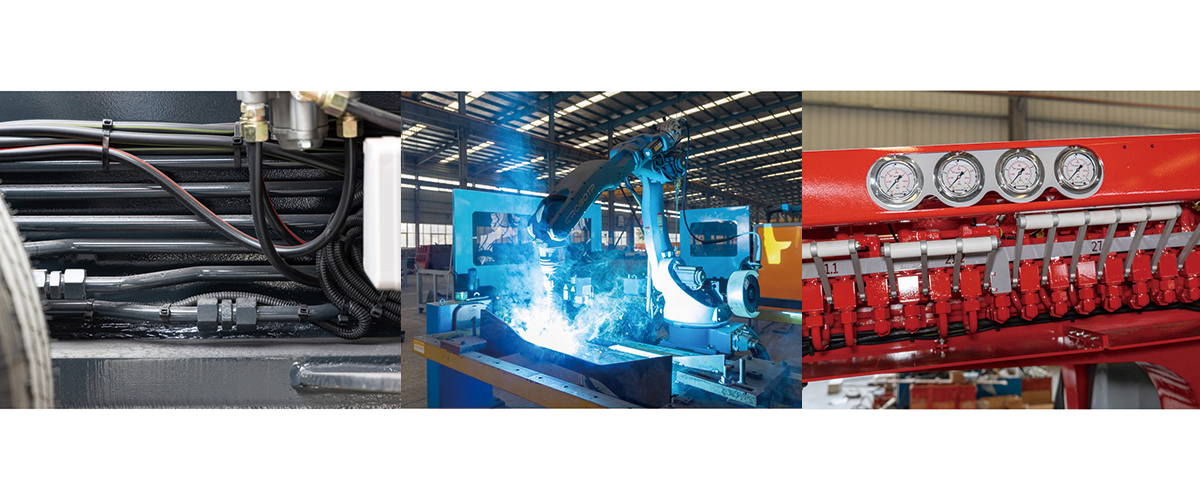

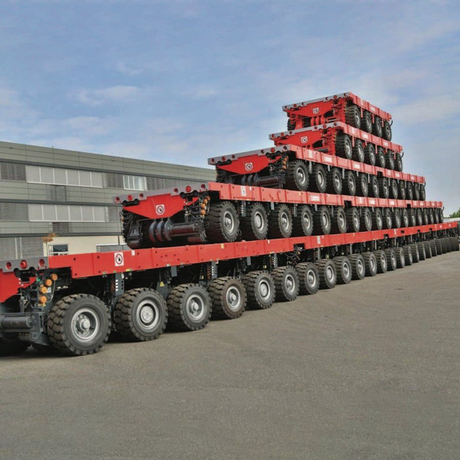

Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than
30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.

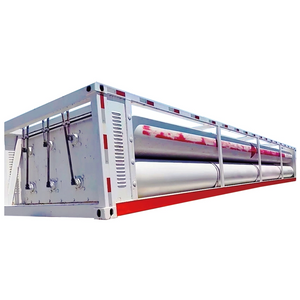

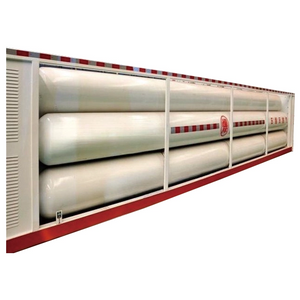

What is a CNG container?

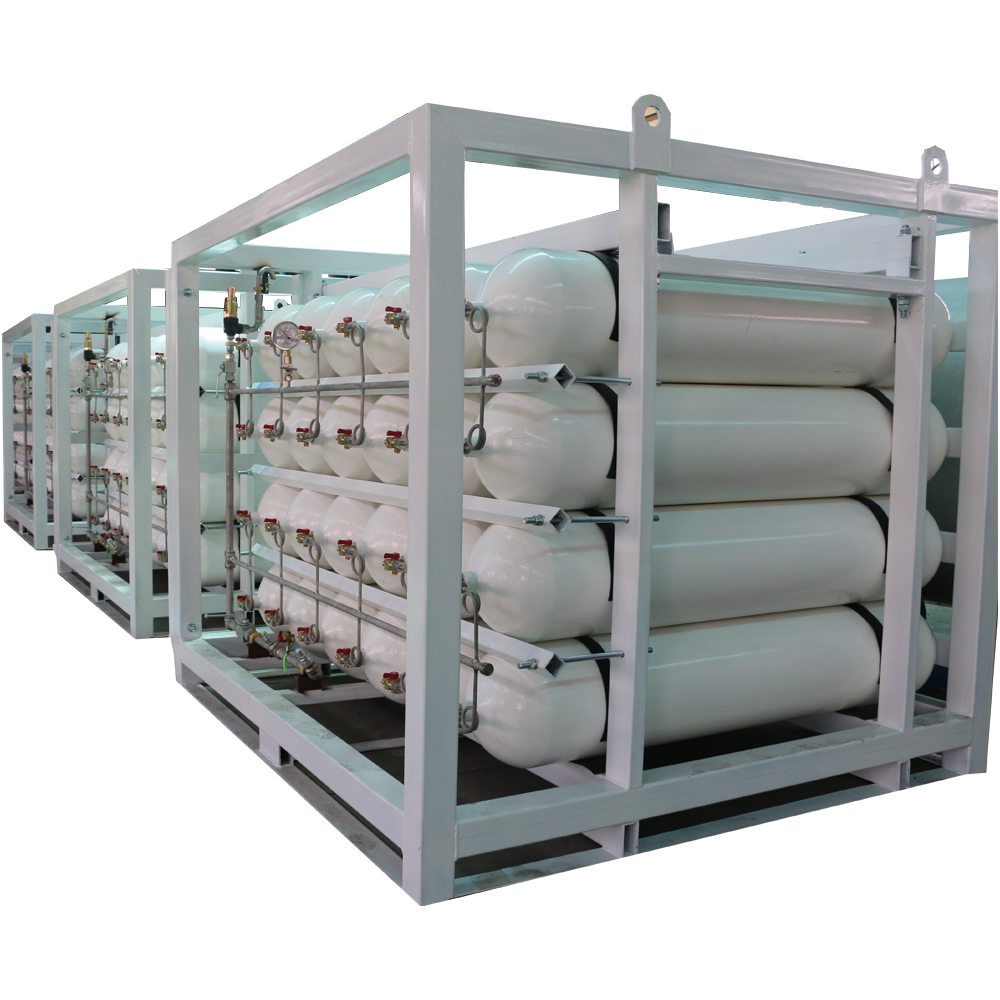

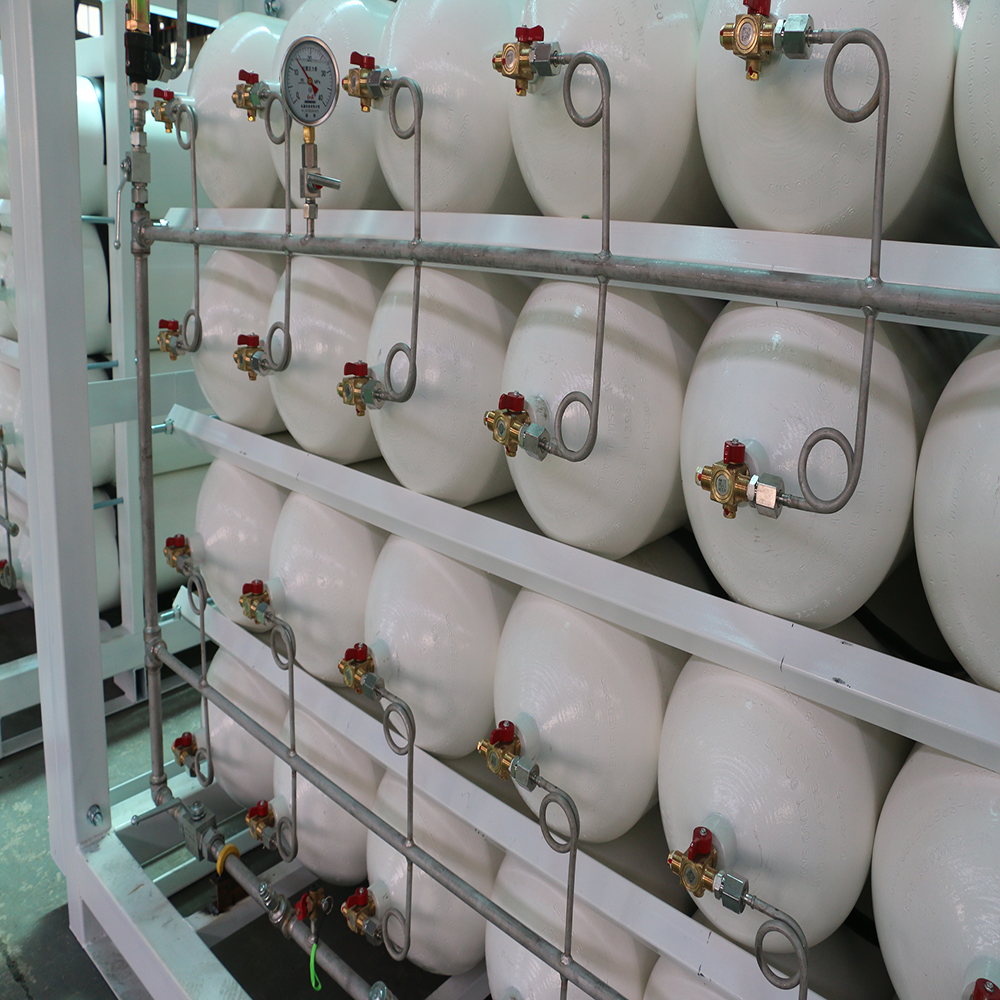

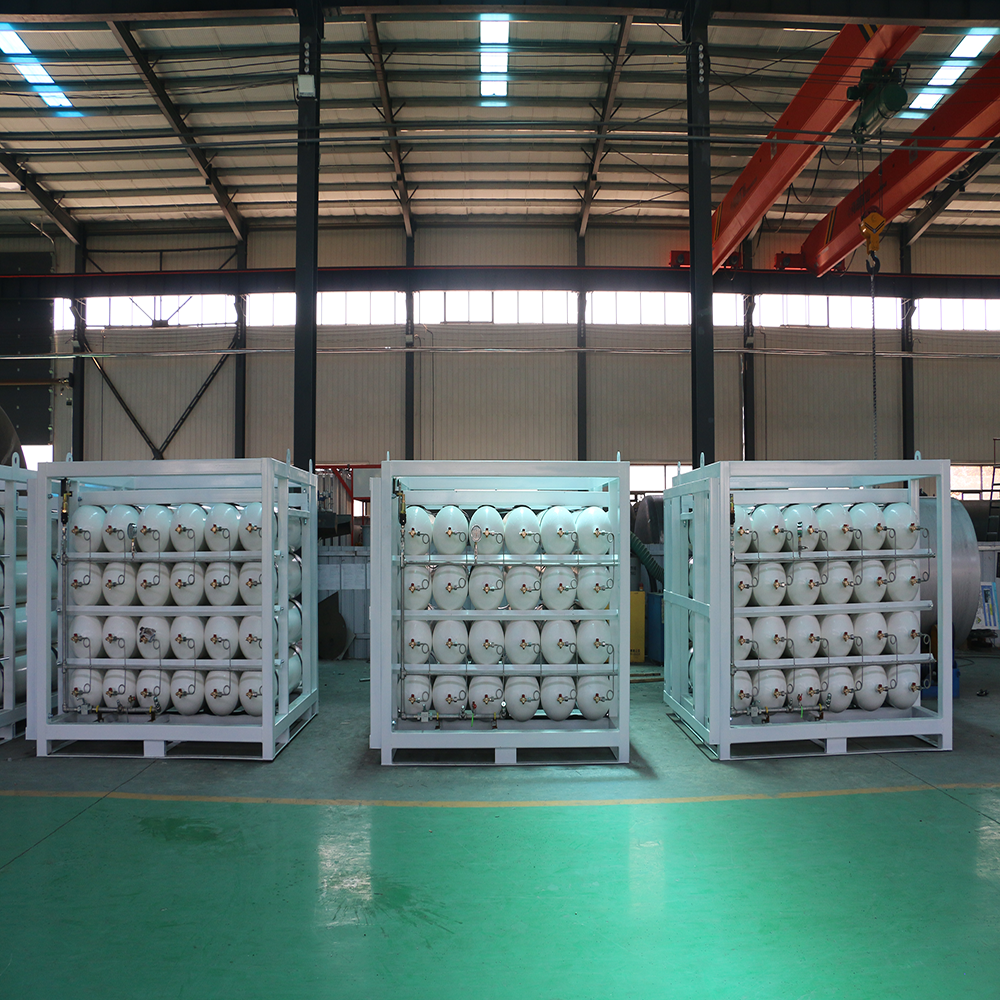

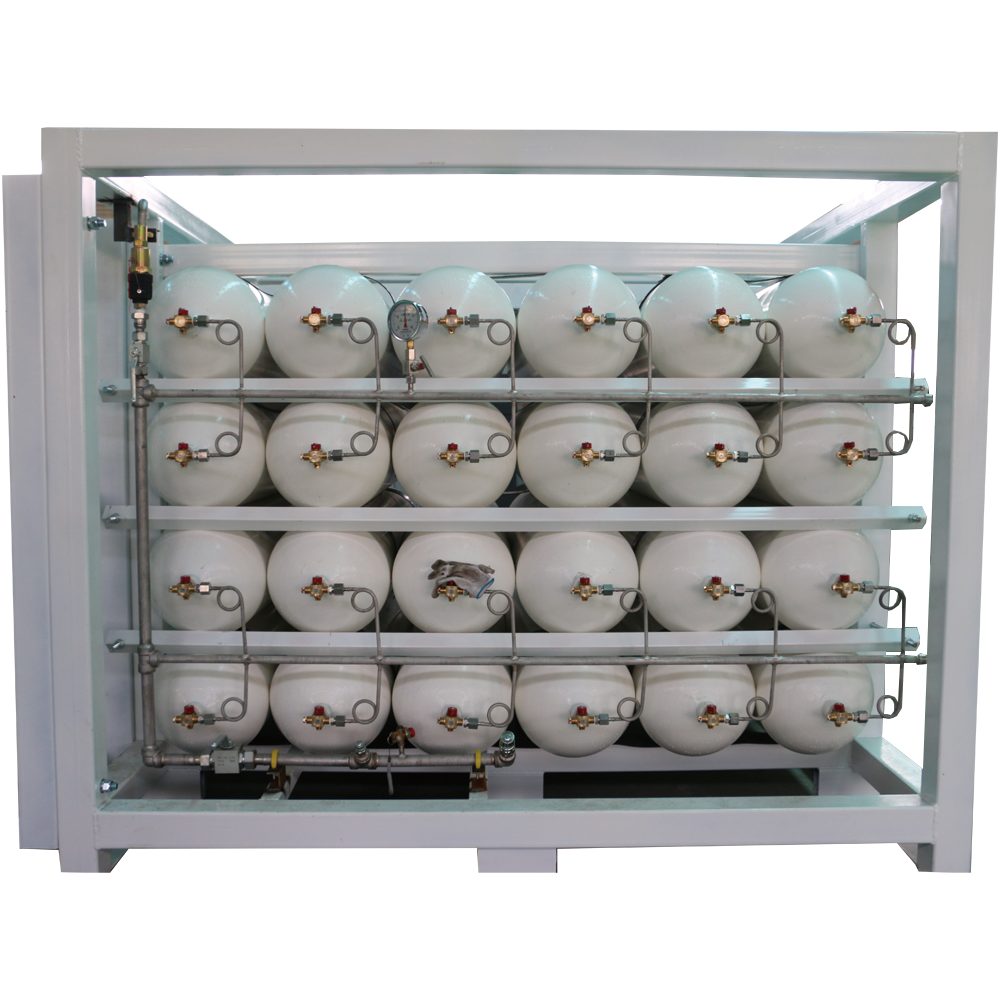

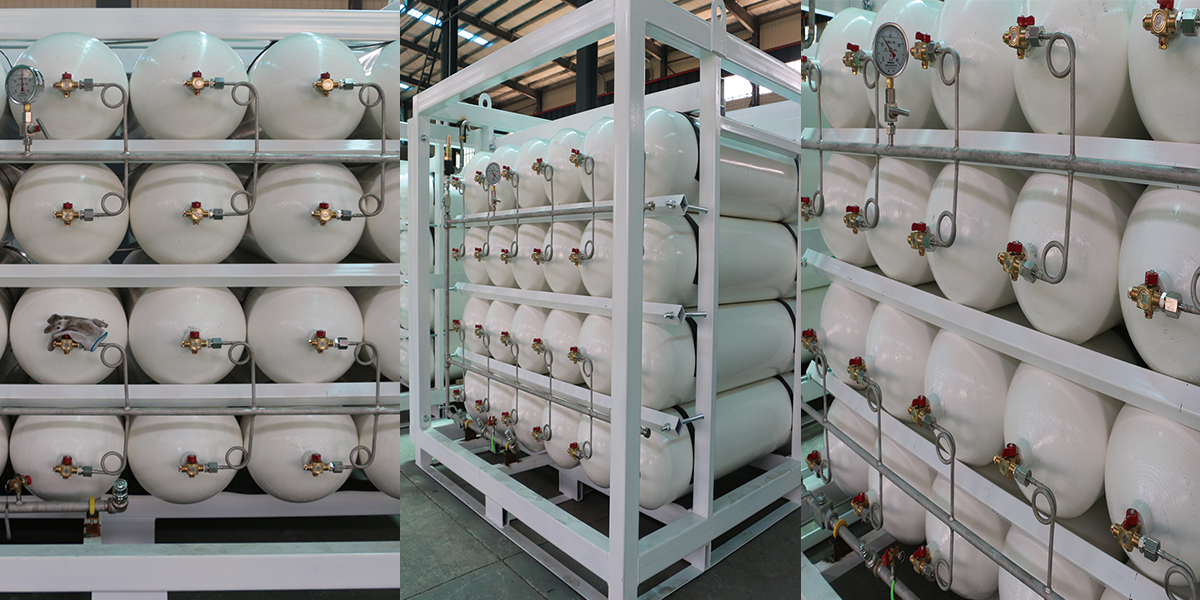

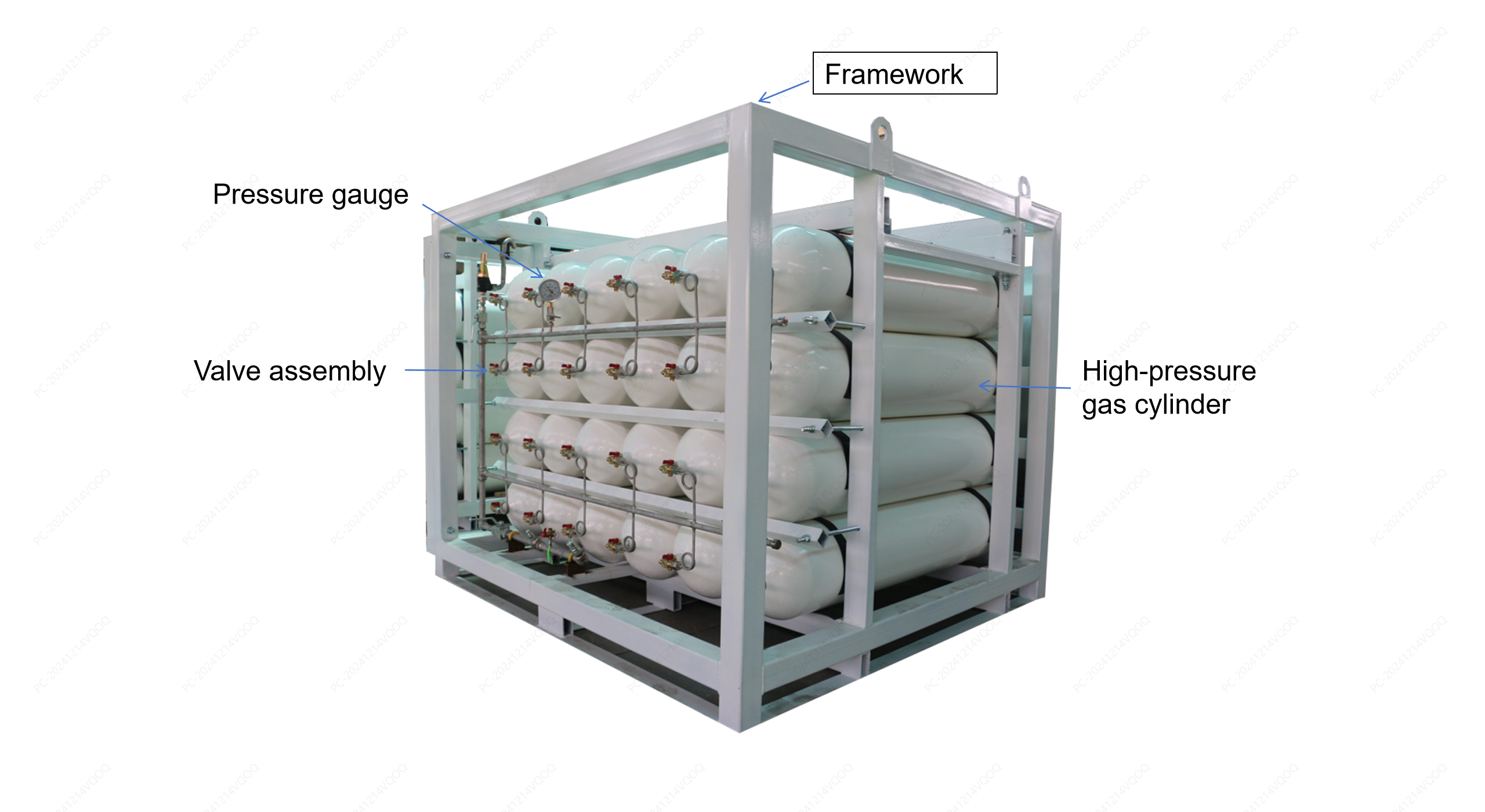

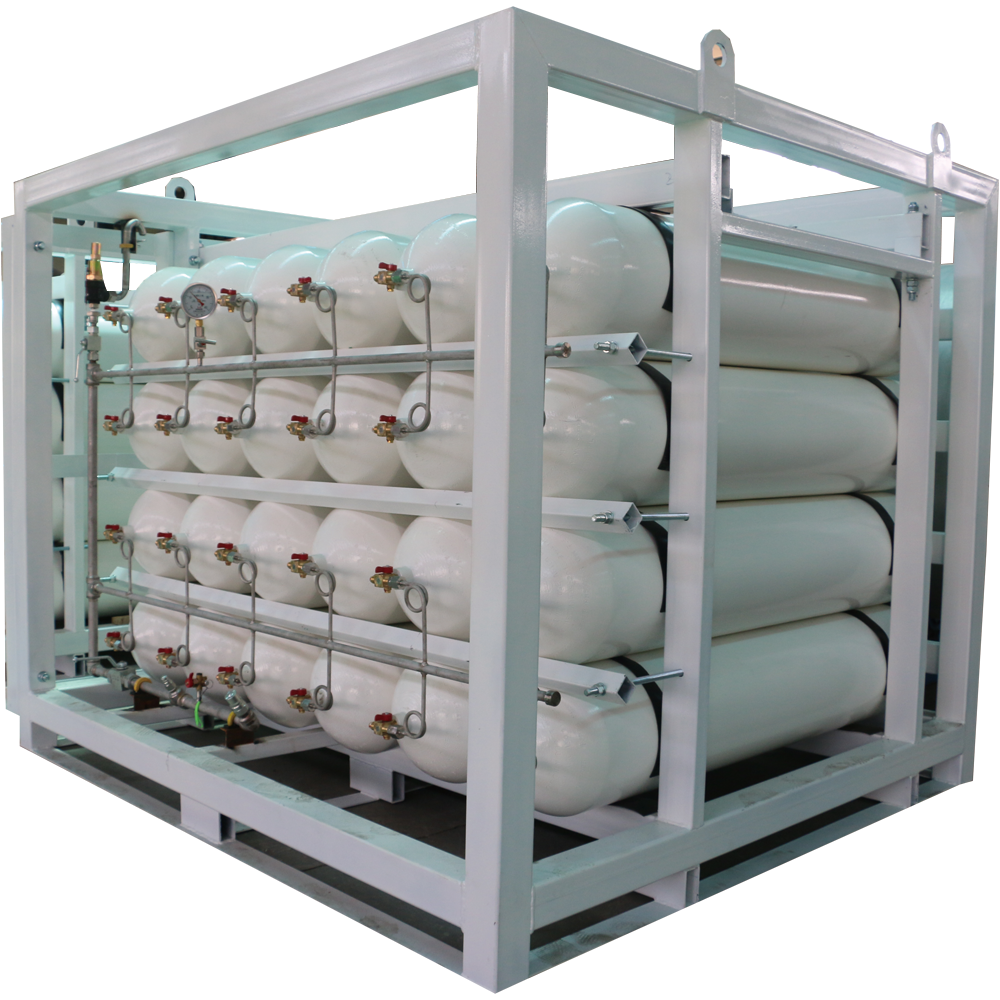

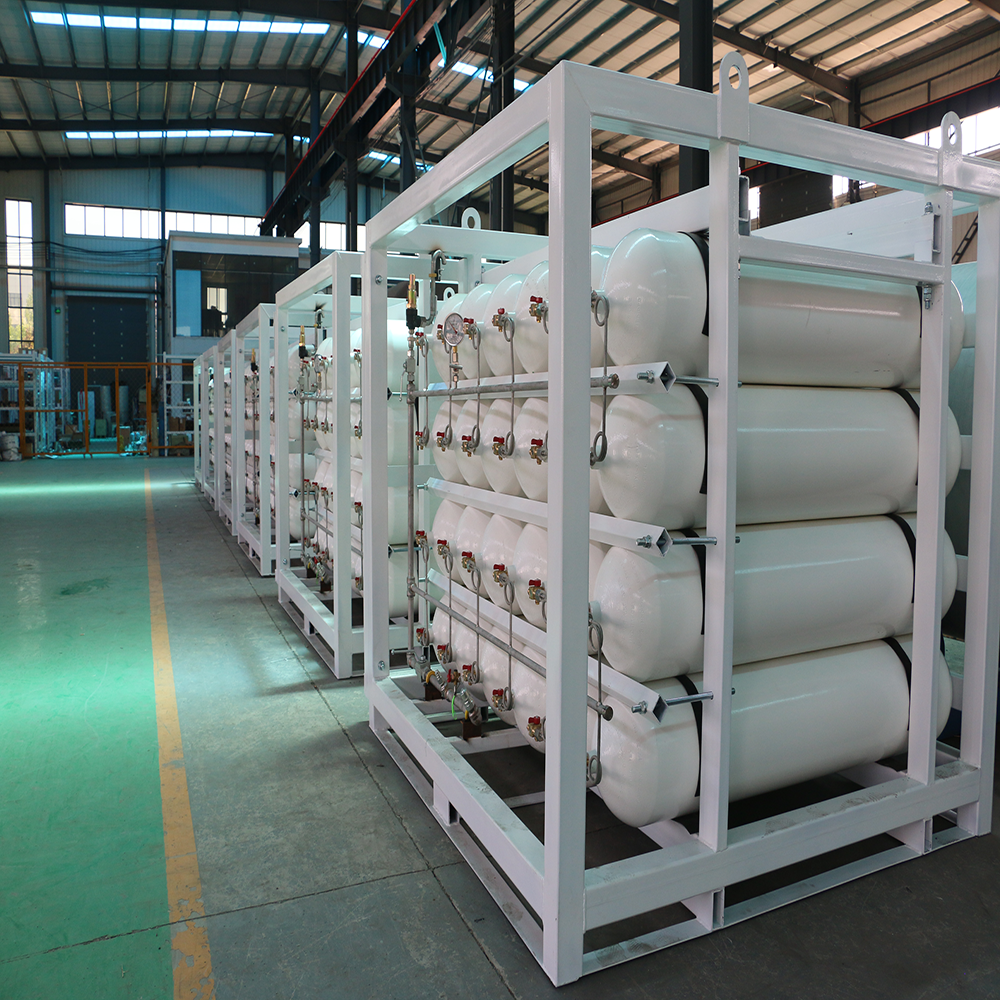

The CNG container grid is a high-pressure container group equipment that integrates multiple large-diameter CNG gas cylinders into one through pipelines and frames. Designed specifically for urban gas distribution, fleet refueling, remote construction sites and temporary refueling points. The entire system is installed in a custom box, featuring rapid deployment, low civil engineering investment, convenient transportation and simple operation and maintenance.
Project | Parameter specification |
Single-cell water capacity | 2000L - 3000L (customizable according to requirements） |
Work pressure | 20 MPa / 25 MPa |
Specification of gas cylinder | Seamless steel cylinders with large diameters such as Φ356mm and Φ559mm |
The number of gas cylinders | It is usually customizable for 8 to 12 pieces per grid |
Interface specification | Import/Export: Standard high-pressure flanges or quick-install couplings |
Project | Option One: CNG Cylinder Container Frame (Skid) | Option Two: CNG Container Tube Bundle Container |
Configuration example | 150-200L steel cylinders | 20FT 1066L /40FT 2450L |
Work pressure | 250 bar | 250 bar |
Advantage | - Small-capacity modules, flexible combination
- Suitable for gas stations/local delivery
- Easy to operate | - Large single capacity, more economical for long-distance transportation - Stable supply of high-flow gas There is already feedback from actual application by customers |
Application scenarios | Small sites, flexible scheduling | Large-scale transportation, long-distance distribution, and high-demand customers |
Concentrated refueling of urban public transportation and logistics fleets
Gas supply within industrial parks and factory areas
Temporary construction sites and remote construction sites
Natural gas pipeline pressure drop or temporary gas supply substitution | ||

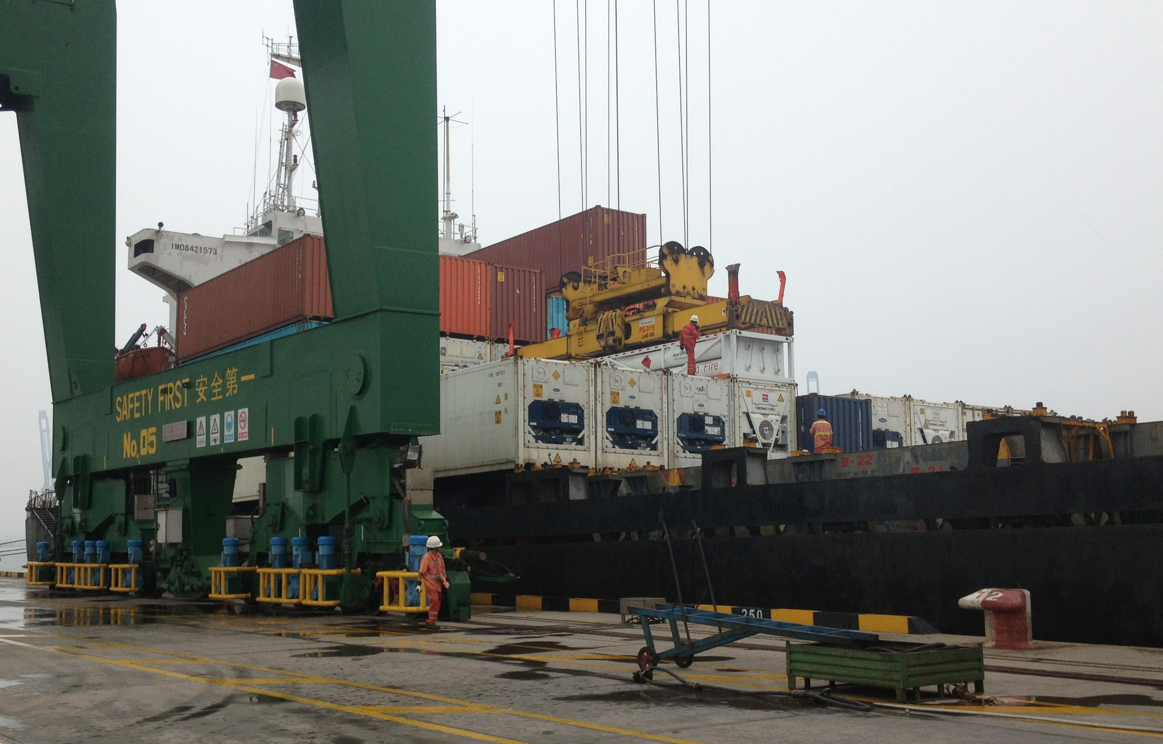

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
Frequently Asked Questions
Q1: How many cubic meters of natural gas can be stored in one container container?
A: Calculated based on water volume and pressure. For instance, a container container with a water volume of 2,500 liters and a pressure of 20MPa can store approximately 5,000 standard cubic meters of natural gas.
Q2: How long is the delivery cycle usually?
A: Standard products are usually delivered within 50 to 65 days after the contract is signed. The cycle of customized products will be determined based on specific requirements
Q3: Payment method
A: Supports TT payment
Q4: After-sales service
A: One-year warranty period
