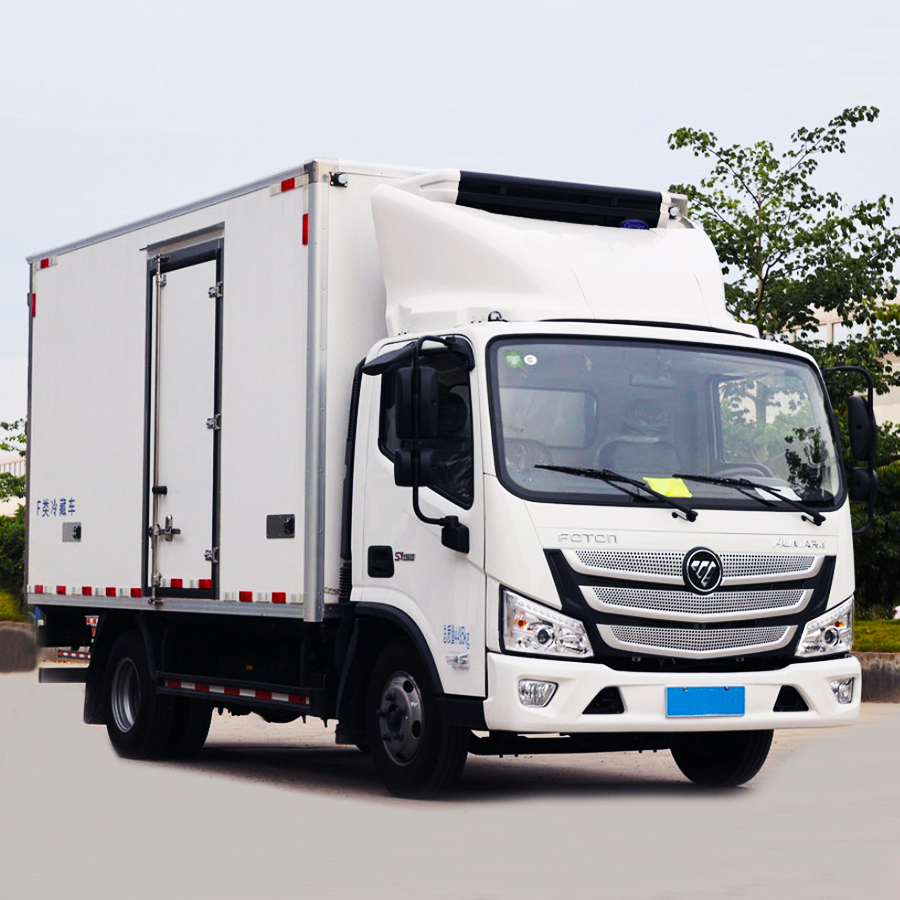

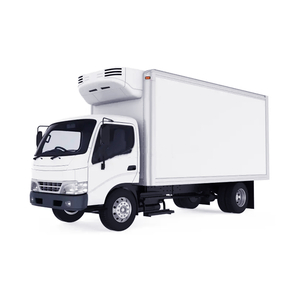

Refrigerated Truck
HUAYAN

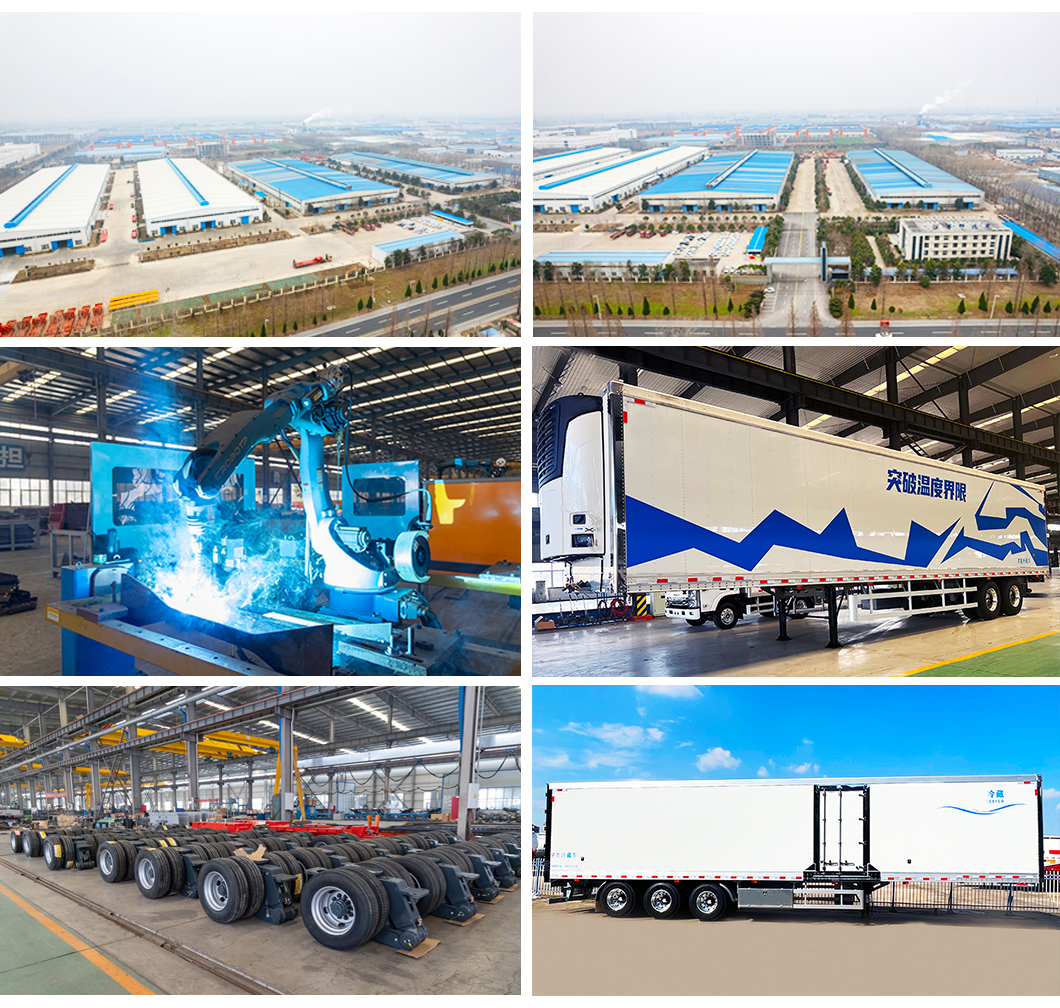

ABOUT US
Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (pressure reduction skids, cryogenic storage tanks, gasifiers), hydraulic modular trailers, gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers (heavy-duty low-bed, flat container, skeleton, side curtain, self-unloading) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than
30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.
Refrigerated truck technical parameters
| High end refrigerated bicycles | |||||
| Vehicle commander | 4.2 m | 5.2m | 6.8m | 7.8m | 9.6m |
| Outside dimensions of the compartment | 4200×2260×2160 | 5200×2460×2360 | 6800×2590×2650 | 7800×2590×2650 | 9600×2590×2650 |
| Internal dimensions of the cabin | 4040×2100×2000 | 5040×2300×2200 | 6620×2430×2450 | 7620×2430×2450 | 9420×2430×2450 |
| Volume inside the compartment | 17 | 25.5 | 40.2 | 46.3 | 57.2 |
| Body mass | 800 | 1060 | 2260 | 2490 | 2850 |
| Cross beam material | Aluminum alloy | Aluminum alloy | High-strength steel | High-strength steel | High-strength steel |
| Longitudinal beam material | High-strength steel | ||||
| Underframe structure | Frame structure | ||||
| Front plate | 80 | 100 | |||
| Roof | 80 | 100 | |||
| Floor | 80 | 100 | |||
| Side plate | 80 | ||||
| Side door panel | 80 | ||||
| Rear door panel | 80 | ||||

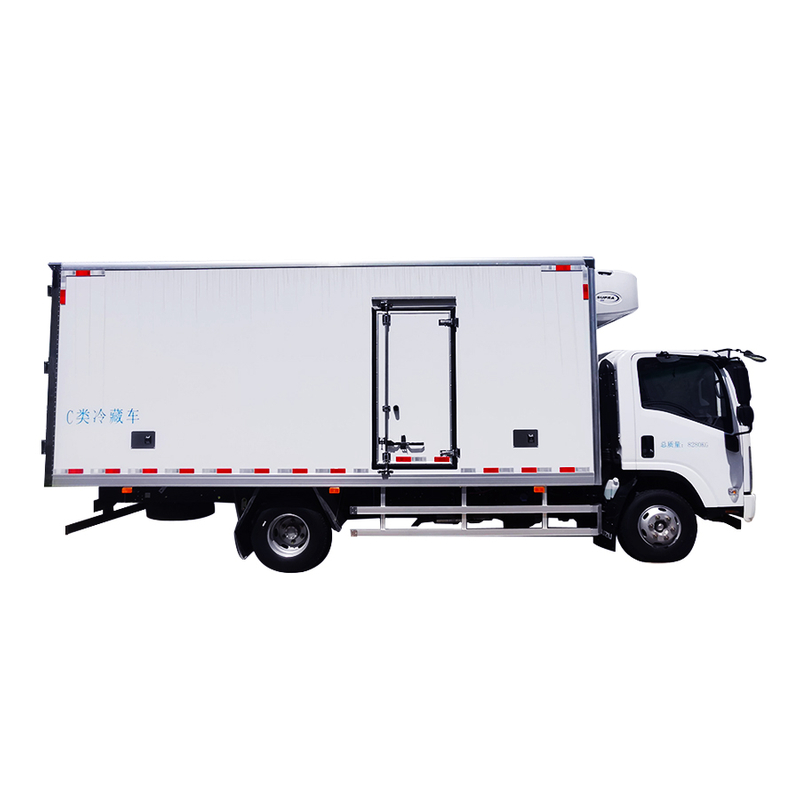

Small refrigerated truck (3-5 meters long, 5-15m³ volume)
Chassis type: based on light truck or van
Refrigeration method: cold plate type (8-12 hours of cold storage) or small mechanical refrigeration unit for short distances(suitable for - 18ºC~+15ºC).
Structural design: The compartment is compact, suitable for narrow roads in cities and underground garages, and the rear doors are mostly open or side-opening.
Scenario: last-mile delivery in cities (fresh food e-commerce, supermarket delivery), short-distance medical delivery (vaccines, reagents), small catering cold chain (baked goods, dairy products).
Cargo volume: single transport volume ≤3 tons, such as 500-1500 kg of fresh food or 200 boxes of vaccine refrigerated boxes.
Medium refrigerated truck (5-9 meters long, 15-40m³ volume)
Chassis type: based on medium trucks, some with single-row or half-row cabs.
Refrigeration method: The mainstream adopts mechanical refrigeration (independent or non-independent units, temperature range - 30ºC~+20ºC), suitable for medium and long-distance transportation (within 500 kilometers).
Some models can choose multi-temperature zone design (such as - 18ºC freezing in the front cabin and + 5ºC preservation in the rear cabin).
Structural design: The carriages are mostly rectangular, with a thickness of 50-100mm (polyurethane foam), equipped with side doors or hydraulic tailgates (for easy loading and unloading).
Scenario: inter-regional transportation (such as provincial capital to prefecture-level cities), bulk transportation of agricultural products (fruits, vegetables, meat), and pharmaceutical trunk transportation (GSP certified temperature and humidity monitoring required).
Cargo volume: 3-10 tons per transport, such as 3,000 kg of frozen meat or 500 boxes of fruits and vegetables (60 kg per box).
Large refrigerated truck (compartment length of more than 9 meters, volume of 40m³+)
Chassis type: Single vehicle: heavy truck chassis, semi-trailer: tractor head + refrigerated trailer (in compliance with GB159 standard, wheelbase must be compliant).
Refrigeration method: independent mechanical refrigeration unit (equipped with independent diesel generator, endurance is not affected by chassis engine), strong temperature stability (fluctuation ≤±1ºC).
For ultra-low temperature requirements, liquid nitrogen spray system can be selected (below -80ºC, used for biological sample transportation).
Structural design: The compartment adopts high-strength lightweight materials (aluminum alloy frame + fiberglass outer plate), and the thickness of the insulation layer is 100-150mm.
Most semi-trailers are designed for hanging and dropping to improve transportation efficiency; some are equipped with automatic loading and unloading systems (such as chain conveyors).
Scenario: long-distance trunk transportation (across provinces and cities, more than 1,000 kilometers), bulk frozen food transportation (quick-frozen dumplings, seafood containers), industrial cold chain (constant temperature transportation of chemical raw materials and electronic components).
Cargo volume: more than 10 tons in a single shipment, such as 10 tons of frozen products (approximately 40 cubic meters) or 20 tons of refrigerated fruits and vegetables (ventilation channels are required).
Structural optimization:
The entire vehicle adopts a full frame load-bearing structure and a filled insulation layer structure; Imported laminated press plate with smooth surface and stable quality;
Good environmental friendliness:
The outer cover is made of color coated aluminum plate, which has high strength and is beautiful; Inner Mongolia board is a food grade thermoplastic board, with no odor or pollution;
High thermal insulation material:
the cell closure rate is more than 99%, with extremely low water absorption (almost no water absorption), low thermal conductivity, high compression resistance, and anti-aging performance (almost no aging decomposition phenomenon in normal use);
Application scenario:
Mainly used for transporting frozen/refrigerated food, perishable food, medicine, flowers, fruits, vegetables, etc
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.

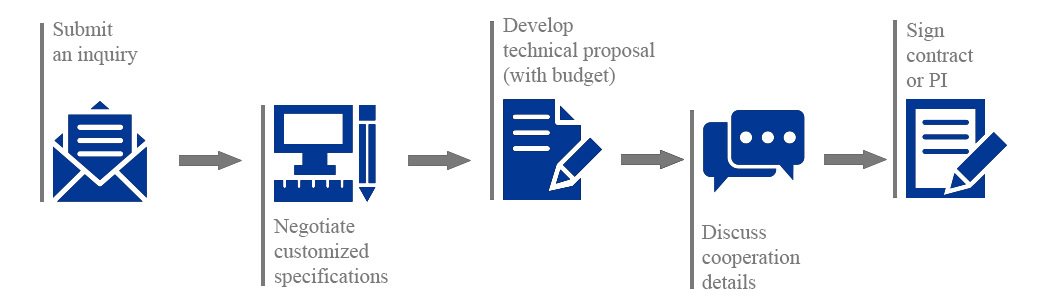

Cooperation Process

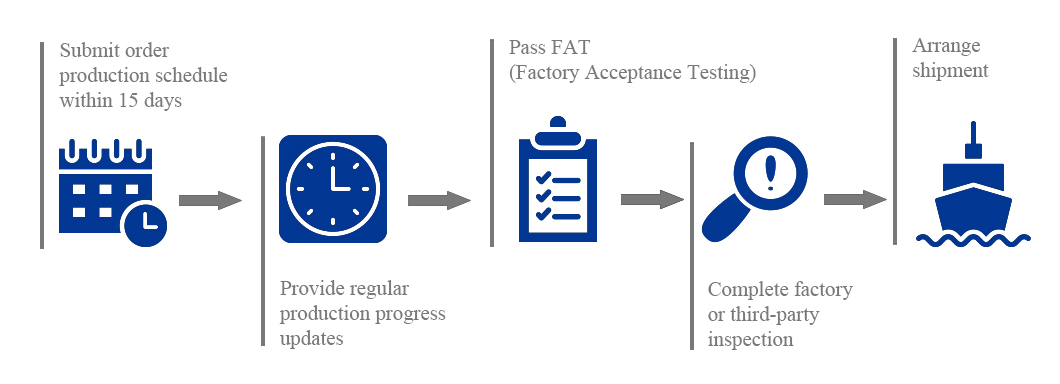

After order
Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.

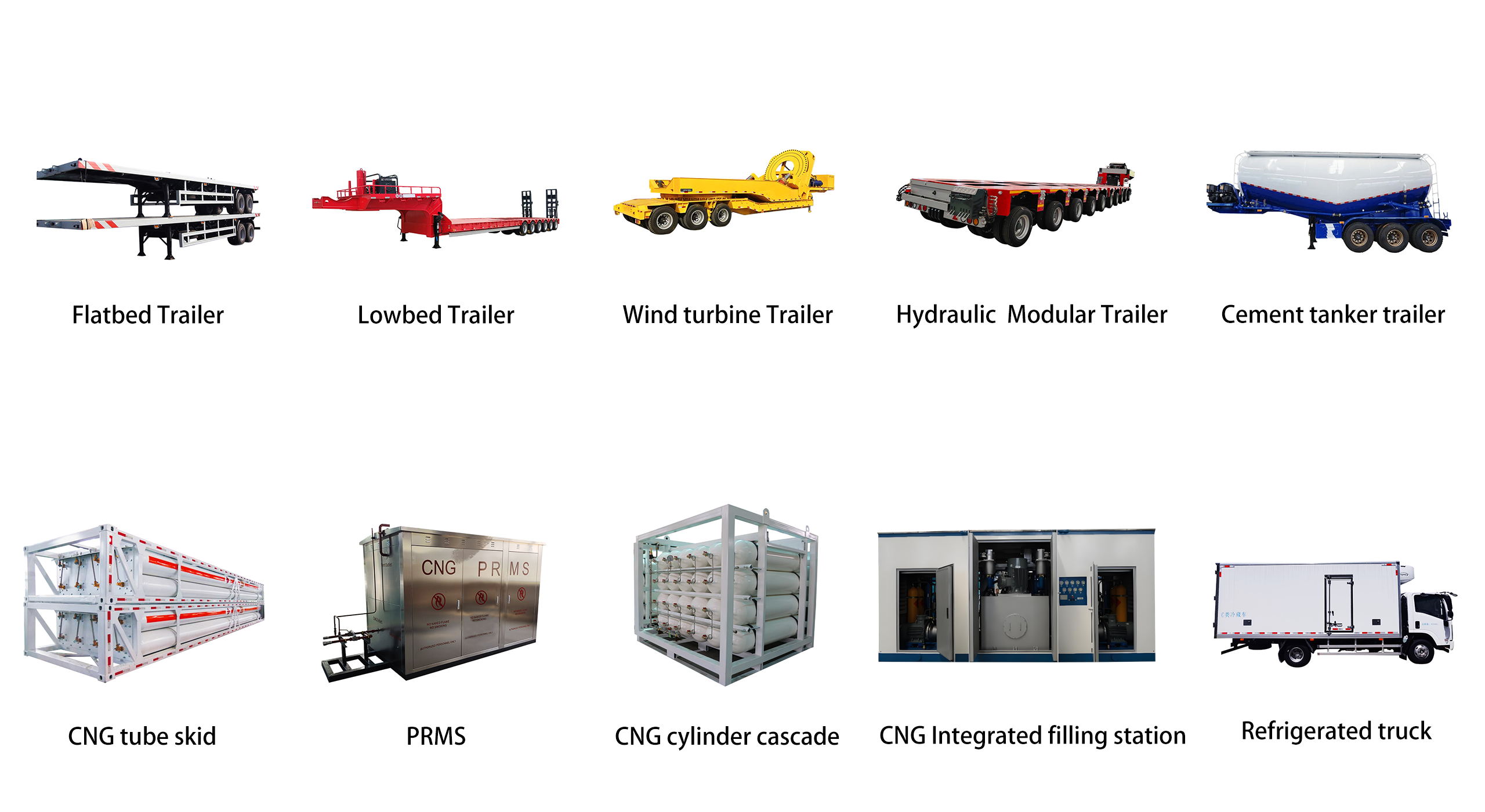

2. What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed
trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service
