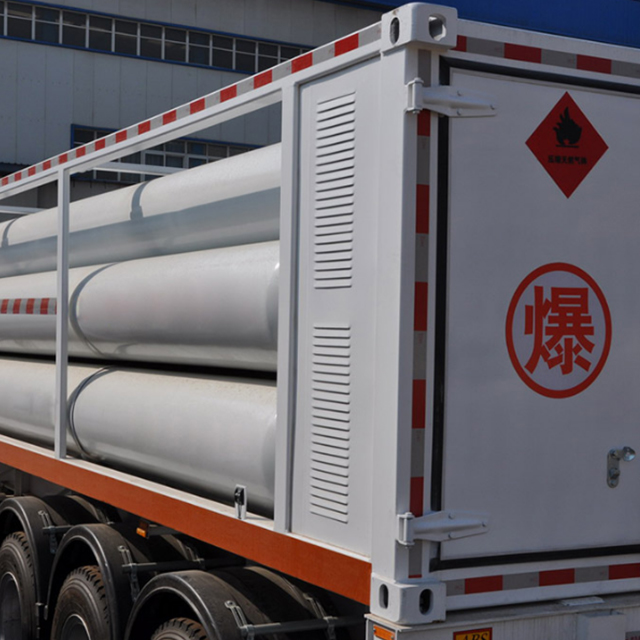

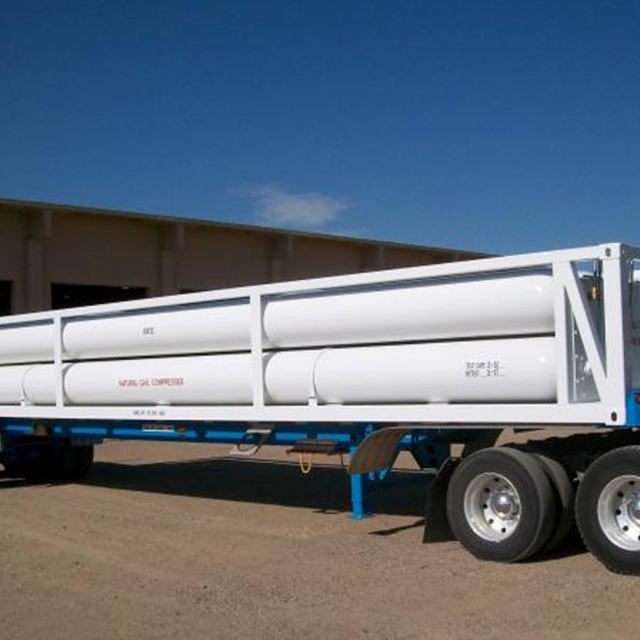

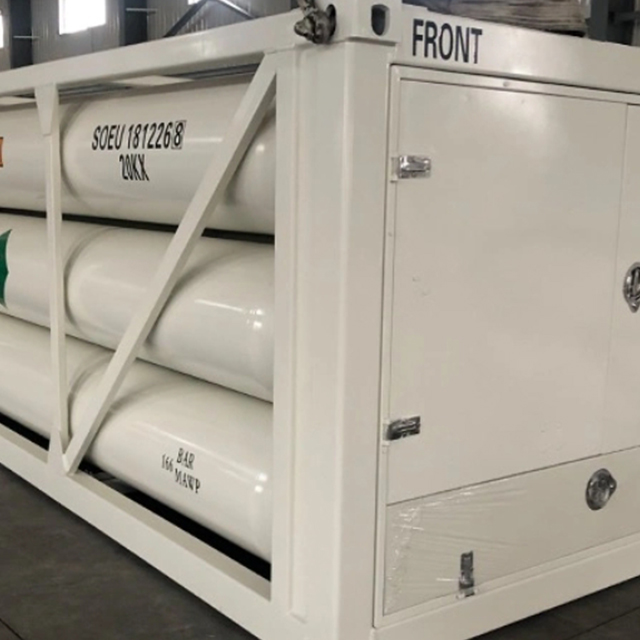

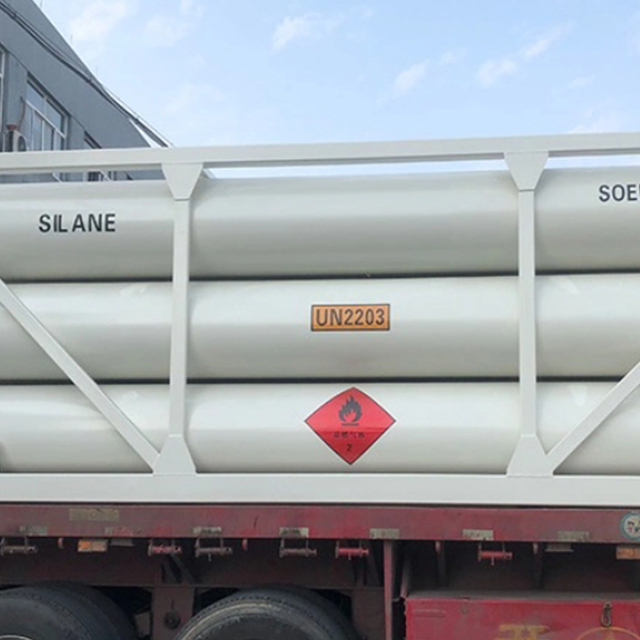

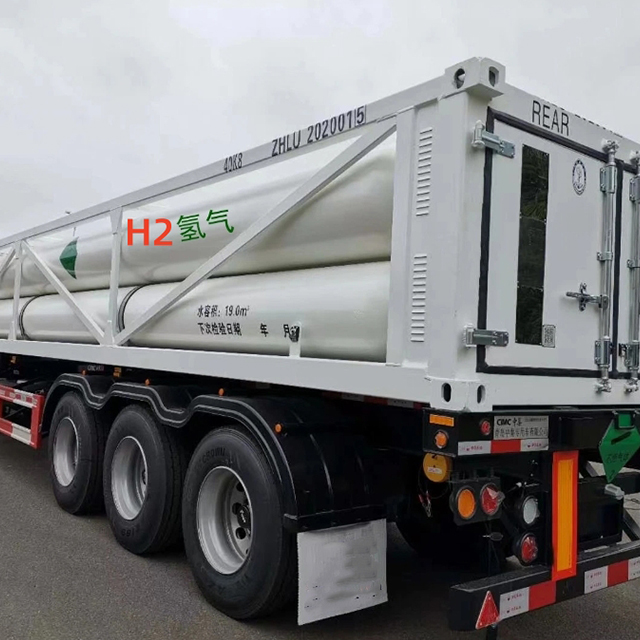

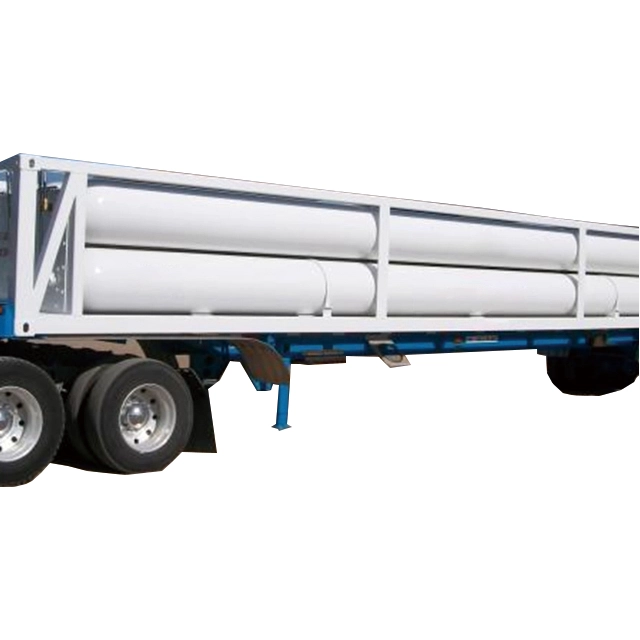

Hydrogen 4640Nm3 10 Tube 40ft H2 Gas Skid Bundle Container Truck Trailer

Quantity:
Availability:





Inquire Add to Basket

Product Description

Technical parameters of tube bundle car

10-tube bundle container
Execution standard: ISO11120 Cylinder design, structure, and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L. ISO 668 Classification, dimensions, and ratings of series 1 container.
Tube Bundle Container	Item	Data	Cylinder	Item	Data
	Type	GSJ10-2450-CNG-25		Working pressure	25 MPa
	Container weight	29600Kg		Working temperature	-50~65ºC
	Filling weight	5512Kg		Main material	30CrMoLX
	Rated weight	35112Kg		Cylinder Q.ty	10
	Major risk category	2.1		Total volume	29.4M3
	UN code	1049		Pressure for water pressure test	37.5MPa
	Filling medium	CNG		Dimension(mm)	559x11570
	Gas tightness test pressure	25MPa		Design temperature	65ºC
	Pipeline water pressure test pressure	37.5MPa		Medium property	Explosive
	Filling amount	7717Nm3	Bursting discs	Burst pressure	37.5MPa
	Dimension (mm)	12192x2438x1890		Burst pressure	37.5MPa
	Transporting	Highway combined transport		Bursting disc device discharge aperture	≥20
	Design service life	Fifteen years		Bursting disc device discharge aperture	≥20

16-tube skid container
Execution standard: ISO11120 Cylinder design, structure, and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L. ISO 668 Classification, dimensions, and ratings of series 1 container.
	Item	Data		Item	Data
Tube Skid Container	Type	GSJ16-2450-CNG-25	Cylinder	Working pressure	25MPa
	Container weight	45280Kg		Working temperature	-50~65ºC
	Filling weight	8816Kg		Main material	30CrMoLX
	Rated weight	54096Kg		Cylinder Q.ty	16
	Major risk category	2.1		Total volume	39.2M3
	UN code	1049		Pressure for water pressure test	37.5MPa
	Filling medium	CNG		Dimension(mm)	559x11570
	Gas tightness test pressure	25MPa		Design temperature	65ºC
	Pipeline water pressure test pressure	37.5MPa		Medium property	Explosive
	Filling amount	12250Nm3	Bursting discs	Burst pressure	37.5MPa
	Dimension (mm)	12192x2438x2591		Burst pressure	37.5MPa
	Transporting	Highway combined transport		Bursting disc device discharge aperture	≥20
	Design service life	Fifteen years		Bursting disc device discharge aperture	≥20

14-tube skid container
Execution standard: ISO11120 Cylinder design, structure, and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L. ISO 668 Classification, dimensions, and ratings of series 1 container.
Tube Skid Container	Item	Data	Cylinder	Item	Data
	Type	GSJ14-2450-CNG-25		Working pressure	25MPa
	Container weight	39,100 Kg		Working temperature	-50~65ºC
	Filling weight	7,714 Kg		Main material	30CrMoLX
	Rated weight	46,814 Kg		Cylinder Q.ty	14
	Major risk category	2.1		Total volume	39.2 M3
	UN code	1049		Pressure for water pressure test	37.5 MPa
	Filling medium	CNG		Dimension(mm)	559x11,570
	Gas tightness test pressure	25MPa		Design temperature	65ºC
	Pipeline water pressure test pressure	37.5MPa		Medium property	Explosive
	Filling amount	10,718 Nm3	Bursting discs	Burst pressure	37.5MPa
	Dimension (mm)	12192x2438x2591		Burst pressure	37.5MPa
	Transporting	Highway combined transport		Bursting disc device discharge aperture	≥20
	Design service life	Fifteen years		Bursting disc device discharge aperture	≥20

9-tube skid container
Execution standard: ISO11120 Cylinder design, structure, and test of seamless and reusable steel tube with a capacity between 150 L to 3000 L. ISO 668 Classification, dimensions, and ratings of series 1 container.
Tube Skid Container	Item	Data	Cylinder	Item	Data
	Type	GSJ9-2450-CNG-25		Working pressure	25MPa
	Container weight	27020 Kg		Working temperature	-50~65ºC
	Filling weight	4961 Kg		Main material	4142
	Rated weight	31981 Kg		Cylinder Q.ty	9
	Major risk category	2.1		Total volume	22.05 M3
	UN code	1049		Pressure for water pressure test	37.5 MPa
	Filling medium	CNG		Dimension(mm)	559x11,570
	Gas tightness test pressure	25MPa		Design temperature	65ºC
	Pipeline water pressure test pressure	37.5MPa		Medium property	Explosive
	Filling amount	6495 Nm3	Bursting discs	Burst pressure	37.5MPa
	Dimension (mm)	12192x2438x1890		Burst pressure	37.5MPa
	Transporting	Highway combined transport		Bursting disc device discharge aperture	≥20
	Design service life	Fifteen years		Bursting disc device discharge aperture	≥20

Nominal working pressure: 20MPa for series φ559 and φ715 respectively.
Spec of series φ559 products: 9 and 10 tubes; with water capacities of: 21.42 m3 and 22.5 m3 respectively.

Spec of series φ715 products: 6 and 7 tubes; with water capacities of: 23.58 m3, 25.02 m3, and 26.67 m3 respectively.

微信截图_20250524141409

High-pressure gas tube bundle vehicle: mainly used to transport high-pressure gases such as compressed natural gas (CNG), hydrogen, and helium. For example, the CNG tube bundle vehicle is equipped with a gas storage cylinder, a decompression system and an anti-static device, which meets safety standards such as TSG R0005.
Compressed Natural Gas (CNG/H2) Tube Skid is used to transport large volumes of natural gas to areas where there is a lack of gas piping, CNG Tube Skid can supply CNG for NGV stations, industry factories, power plants, or family use

High-pressure CNG long-distance transport trailers are efficient natural gas transportation solutions

The CNG/H2 long-tube trailer is the gas source of the CNG filling substation. It also can transport CNG for the civil gas system. It is an effective supplementary method to the pipe conveyance of gas. Its technology is simple and it occupies small ground. It has the following traits:

1. Import valves with high quality.

2. Advanced technology, fine manufacturing equipment, and a feasible quality insurance system.

3. Scientific design and logical load-bearing structure.

4. It can realize various combinations with CNG storage cylinder groups and can satisfy different requirements of customers.

5--2

Multi supporting Parts It includes as below:EmergencyValvePressure GaugeDischarge valveThermometerSafety valveManhole cover
Painting Surfaces Cleaned By Shot Blasting.OneEpoxy Coating And Acrylic FinishCoating.Durable Against Rust, Support
Longer, GoodLooking, and Service Life.
Automatic Welding Submerged arc automatic weldingconstruction, key point reinforcement,and purposeful welding avoid someparts easier loss weldingaccording to experience supportvehicle longer working withoutrepairing

Cooperation Process

After order

14-合作流程 (2)

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.

FAQ

1. What are the main components of a CNG long tube trailer?
trailer , framework , large-cubage seamless steel cylinders ,for safety cabin ,back operation cabin

2. What products can you provide?
We specialize in producing LPG cylinders, LNG cylinders, Cryogenic Liquid Storage tanks (LO2, LN2, LAr, LCO2, and LNG), etc. Any interests you can feel to contact us for details.

3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitiveness.

4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN

5. What's the delivery time?
If the standard models are in stock, we can ship them out within 10 -15 days after payment.
If customized, 15-20 days can be ready for shipment.
