| Quantity: | |
|---|---|
Trailer
HUAYAN
Strong load-bearing capacity: The structure is made of high-strength steel welded into an I-shaped main beam, which can withstand large concentrated loads. Its multi-axis design makes
the load shared by each axle relatively small. For example, the 2-row light plate single axle of China Heavy Transport Hoisting has a rated load of 28 tons, which can meet the transportation needs of heavy objects over 80 tons.
High transportation stability: Usually a three-point support layout is adopted, combined with full-wheel hydraulic control, which can ensure that the load of goods is uniform, safe and stable during transportation.
The hydraulic suspension system can adjust the height of the cargo platform so that the goods can be transported smoothly under different road conditions, and the body can also be adjusted to maintain a balanced position when driving up and down ramps and on slopes.
Flexible steering: The steering system is advanced and can realize automatic steering and controlled steering. For example, steering is driven by the tractor or steering is performed by
manipulating the steering control valve handle on the front and rear control boxes. Some are also equipped with hydraulic power steering devices, which can reduce the turning radius and turn flexibly in complex road conditions.

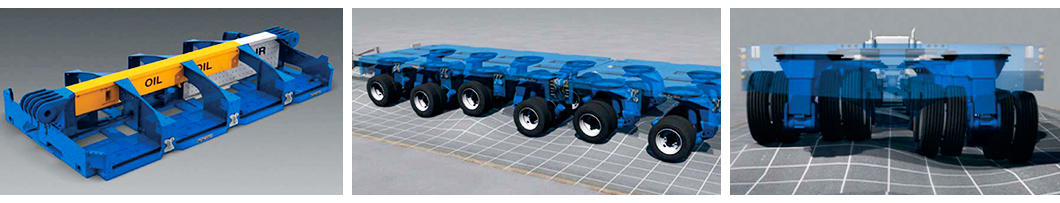

Good combination: It adopts modular design and has the functions of longitudinal and transverse splicing. It can be freely combined according to the size and weight of the goods.
It is easy to splice and can quickly form different axis and bearing surface sizes to adapt to workpieces of different sizes and weights.
Wide adaptability: It is suitable for medium and long-distance road transportation of overweight or non-detachable oversized objects in multiple industries such as power construction, mining, metallurgy, chemical industry, hydropower and thermal power equipment manufacturing.

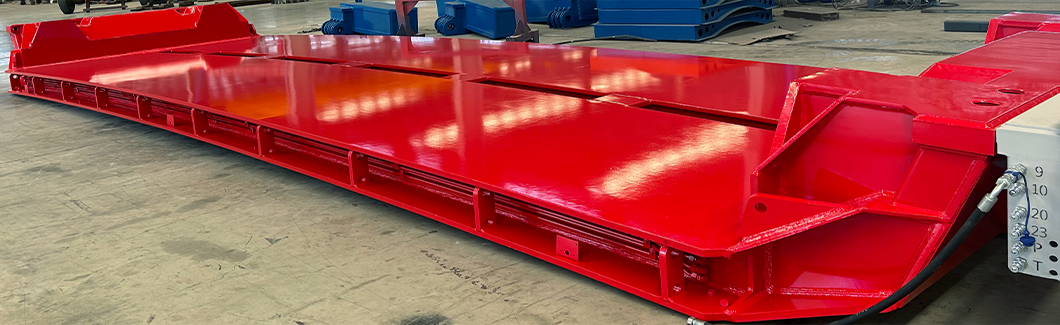

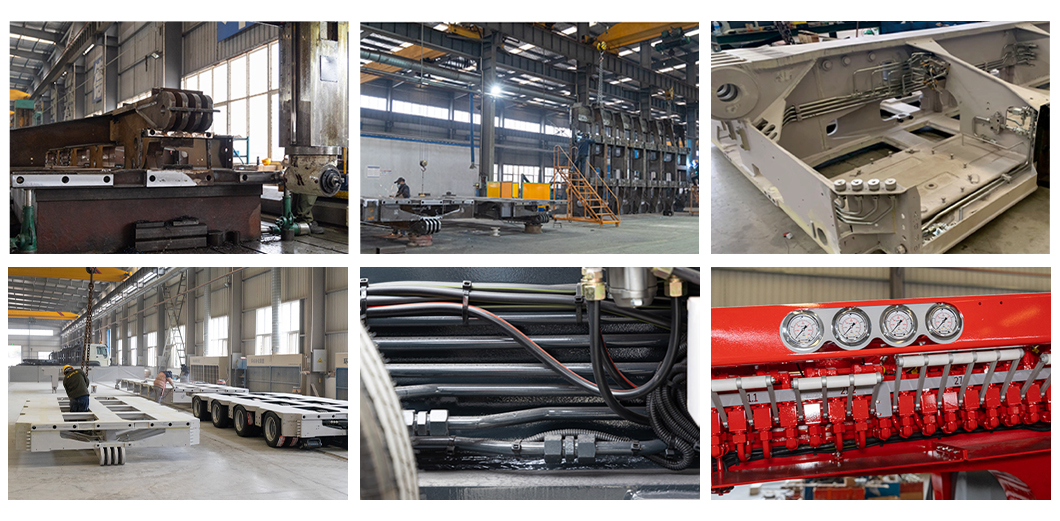

To enhance overall performance, the vehicle body is processed using an automatic gantry manufacturing center, ensuring precision across all components. All mounting holes of the entire
vehicle are machined in a single clamping operation, guaranteeing exceptional splicing accuracy and seamless alignment during assembly. This advanced manufacturing approach eliminates cumulative tolerances and optimizes structural integrity for reliable heavy-duty applications.
The vehicle adopts a CNC pipe bending system, achieving aesthetically unified and seamlessly integrated pipeline layout. This automated precision technology guarantees leak-proof performance and full interchangeability of components, ensuring consistent quality across all connections.

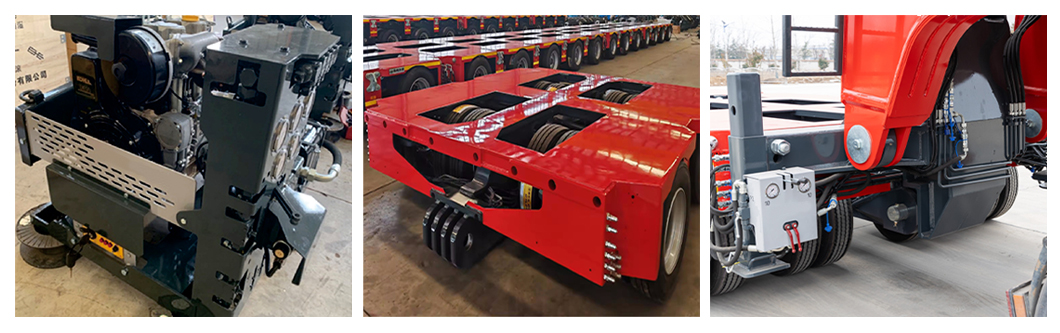

All new design power unit, modeling succinct artistic, accessories are easyto replace.

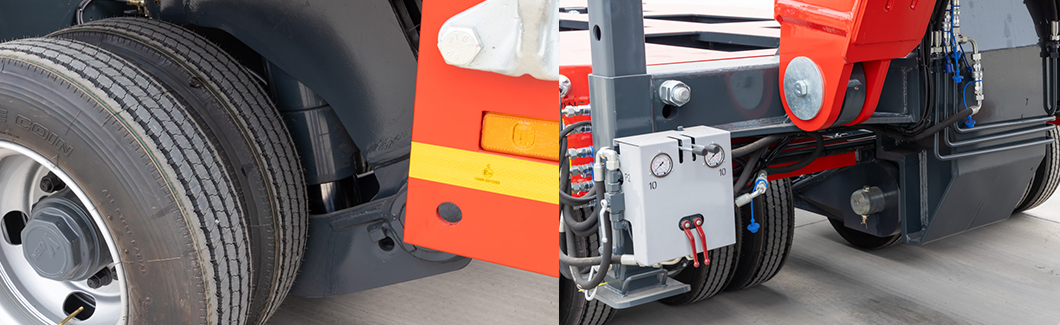

The operation methodis more humanized. Thesystem pressure meter isadded to the control box,steering handle is changedto the left and right controlmode, which is consistentwith the direction of the tire,intuitive and convenient.
All new design power unit, modeling succinct artistic, accessories are easyto replace.
The operation methodis more humanized. Thesystem pressure meter isadded to the control box,steering handle is changedto the left and right controlmode, which is consistentwith the
direction of the tire,intuitive and convenient. The hydraulic bolt is changed from pipeline interface to valve blockinterface
| Main Performance Parameters | ||
| Series No. | Name | Spec. |
| 1 | Wheel Base | 1550mm |
| 2 | Wheel Track | 735/1820mm |
| 3 | Tyre Qty | 8 pcs/each axis |
| 4 | Tyre Spec | 215/75R17.5 |
| 5 | Rim Spec | 6.0-17.5 |
| 6 | Cargo bed width | 2990mm |
| 7 | Cargo platform height (middle heavy load) | 1070mm |
| 8 | Suspension travel | ±300mm |
| 9 | Steering mechanism | All-wheel hydraulic traction steering or control steering |
| 10 | Frame main material | Q550D |
| 11 | Maximum turning angle in the first round | 55° |
| 12 | Frame form | flat grid format |
| 13 | Cargo platform support method | Three-point support or four-point support |
| 14 | The effective load capacity of each axis | 22.5 tons (18km/h) |
| Brand List | ||
| Series No. | Accessories Name | Brand |
| 1 | tire | Double-Coin/Giti |
| 2 | steel ring | Zhengxing |
| 3 | Alex | York |
| 4 | Oil Cylinder | Hengli |
| 5 | Ball Valve | MHA/Poster |
| 6 | Quick connector | Faster |
| 7 | Multi-way valve | Bondioli&Pavesi |
| 8 | Hydraulic hose | Aeroquip |
| 9 | Hydraulic joint | Eton Standard |
| 10 | Relay volve | SORL |
ABOUT US
Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (hydraulic modular trailers,gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers(heavy-duty low-bed,) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than 30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements
Cooperative Brand
Our Customers
Core Technology Team

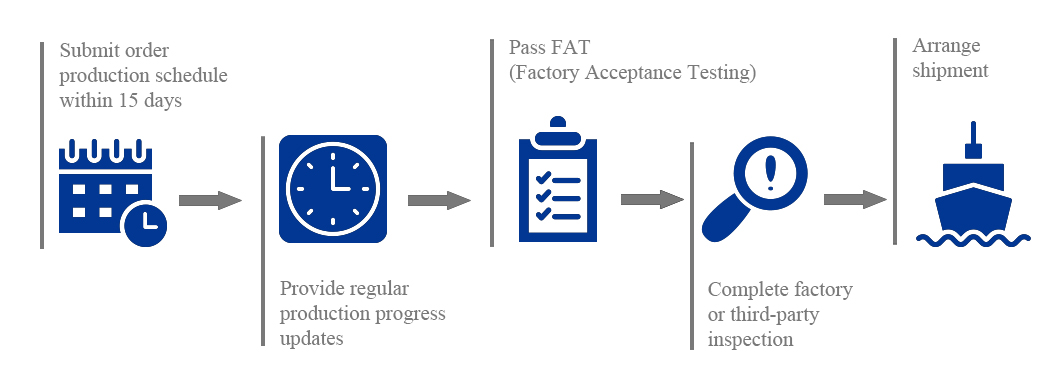

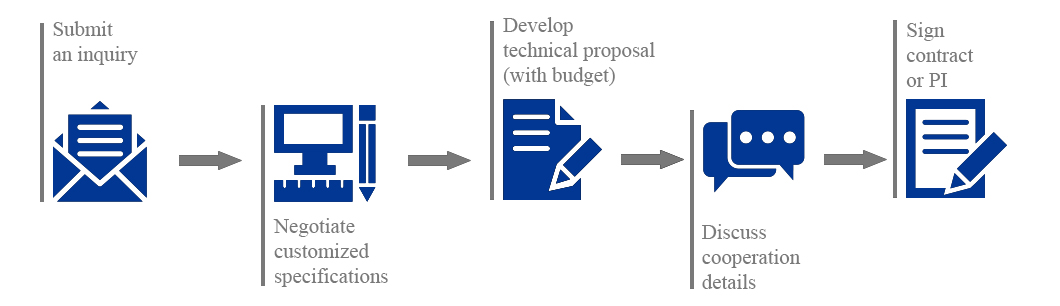

Cooperation Process
After order

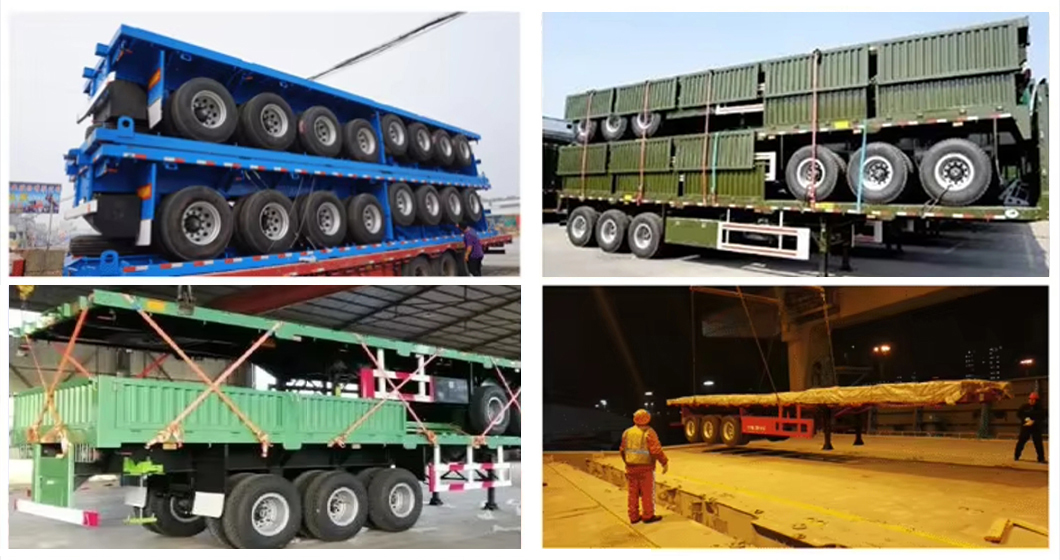

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
