| Quantity: | |
|---|---|

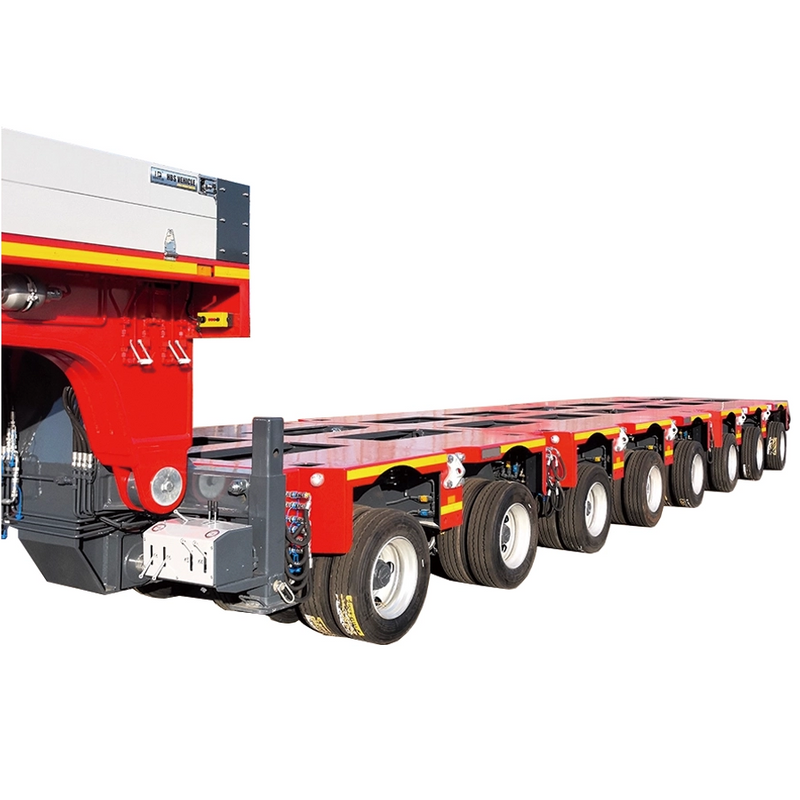

Trailer
HUAYAN
| Main Performance Parameters | ||
| Series No. | Name | Spec. |
| 1 | Wheel Base | 1550mm |
| 2 | Wheel Track | 735/1820mm |
| 3 | Tyre Qty | 8 pcs/each axis |
| 4 | Tyre Spec | 215/75R17.5 |
| 5 | Rim Spec | 6.0-17.5 |
| 6 | Cargo bed width | 2990mm |
| 7 | Cargo platform height (middle heavy load) | 1070mm |
| 8 | Suspension travel | ±300mm |
| 9 | Steering mechanism | All-wheel hydraulic traction steering or control steering |
| 10 | Frame main material | Q550D |
| 11 | Maximum turning angle in the first round | 55° |
| 12 | Frame form | flat grid format |
| 13 | Cargo platform support method | Three-point support or four-point support |
| 14 | The effective load capacity of each axis | 22.5 tons (18km/h) |
| Brand List | ||
| Series No. | Accessories Name | Brand |
| 1 | tire | Double-Coin/Giti |
| 2 | steel ring | Zhengxing |
| 3 | Alex | York |
| 4 | Oil Cylinder | Hengli |
| 5 | Ball Valve | MHA/Poster |
| 6 | Quick connector | Faster |
| 7 | Multi-way valve | Bondioli&Pavesi |
| 8 | Hydraulic hose | Aeroquip |
| 9 | Hydraulic joint | Eton Standard |
| 10 | Relay volve | SORL |

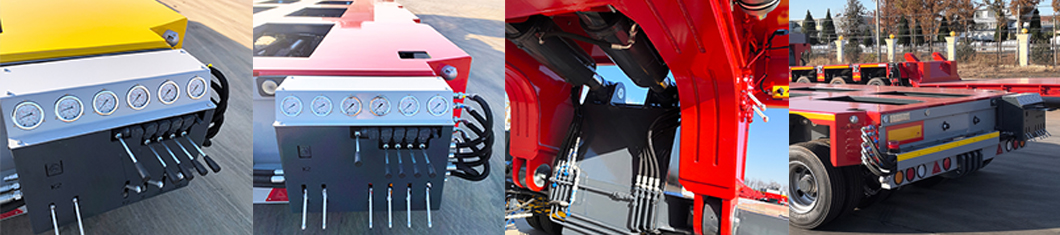

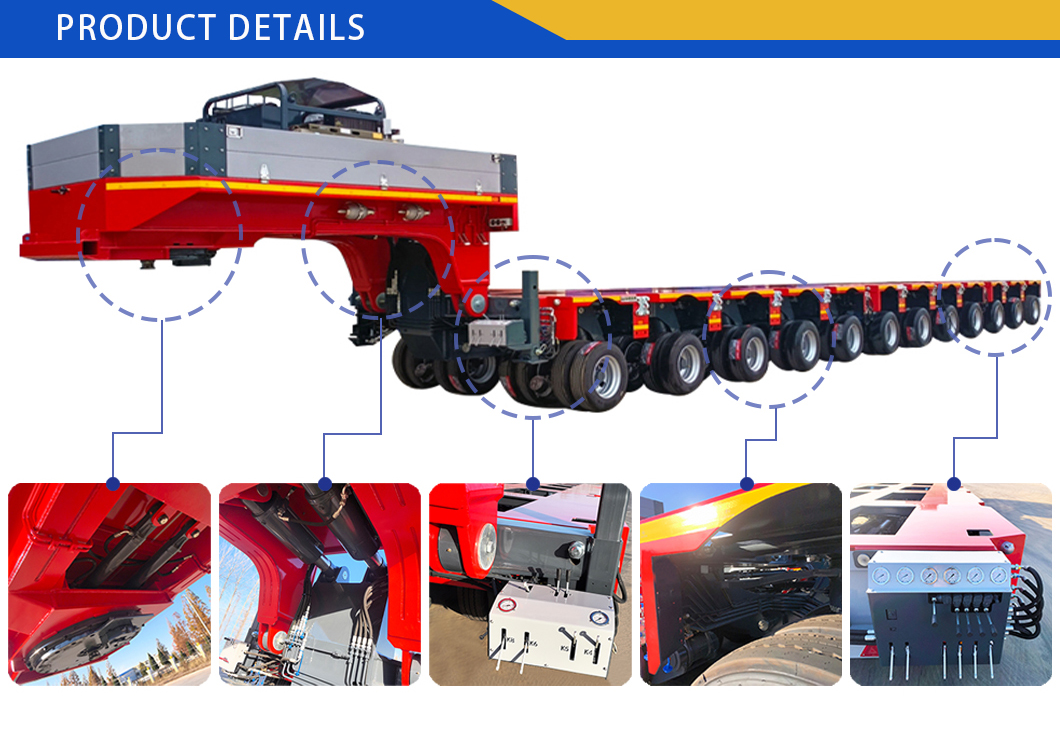

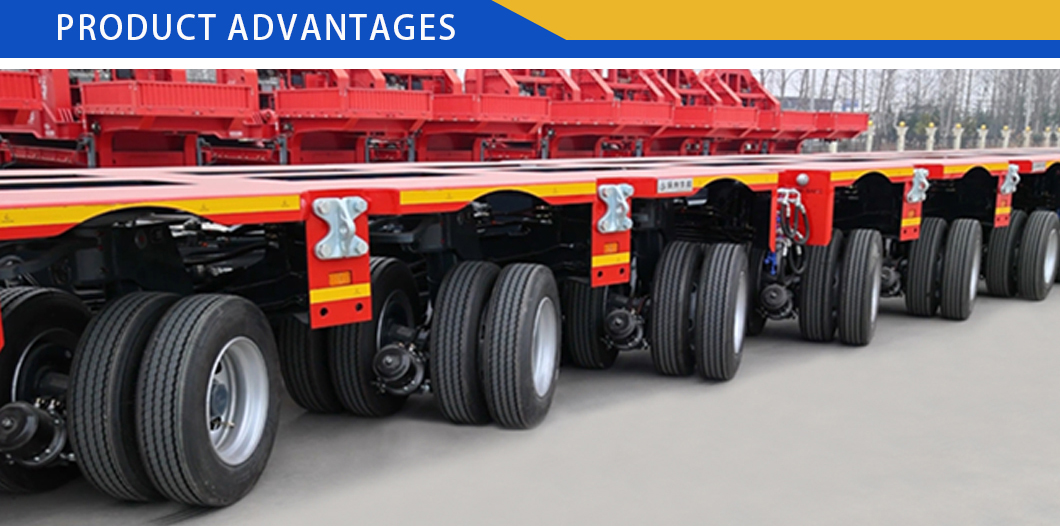

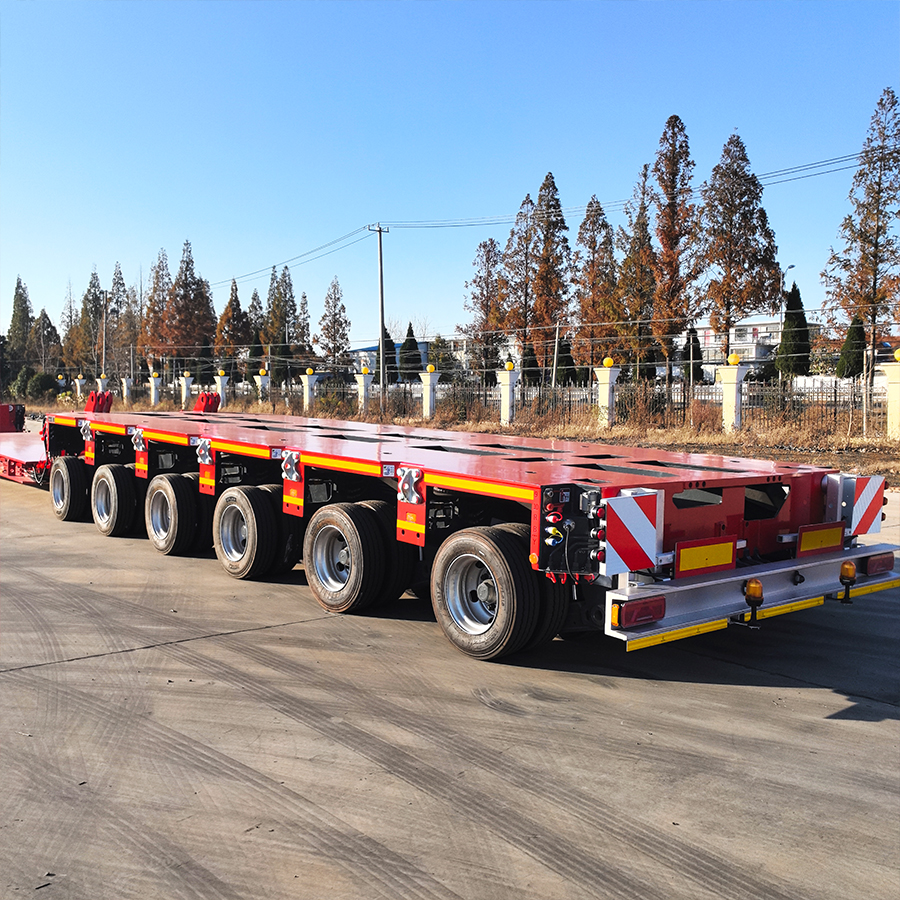

The steering system is optimized for precision and to eliminate dead spots. The trailer's hydraulic and pneumatic pipelines use quick plug connections for fast assembly. The hydraulic
suspension cylinder block is made using hanging cylinder technology, offering high strength. Cylinder connections and seals are like those of Goldhofer and Scheuerle, using foreign
brand products. The stop valve is an imported brand ball valve, easy to operate. The maximum turning angle is 55°, resulting in a small turning radius.
It can be seamlessly connected with world-renowned brands such as Goldhofer and Scheuerle in both longitudinal and transverse directions; it offers multiple suspension options
including hydraulic, air, and mechanical suspensions to meet various road conditions and project requirements; the frame is made of Q550D extra-thick steel plates with a box-shaped
structure, which is highly strong, not easily deformed, and capable of carrying concentrated loads; it features an integrated design with taillights and operating boxes, ensuring high
safety and practicality.
Our customers

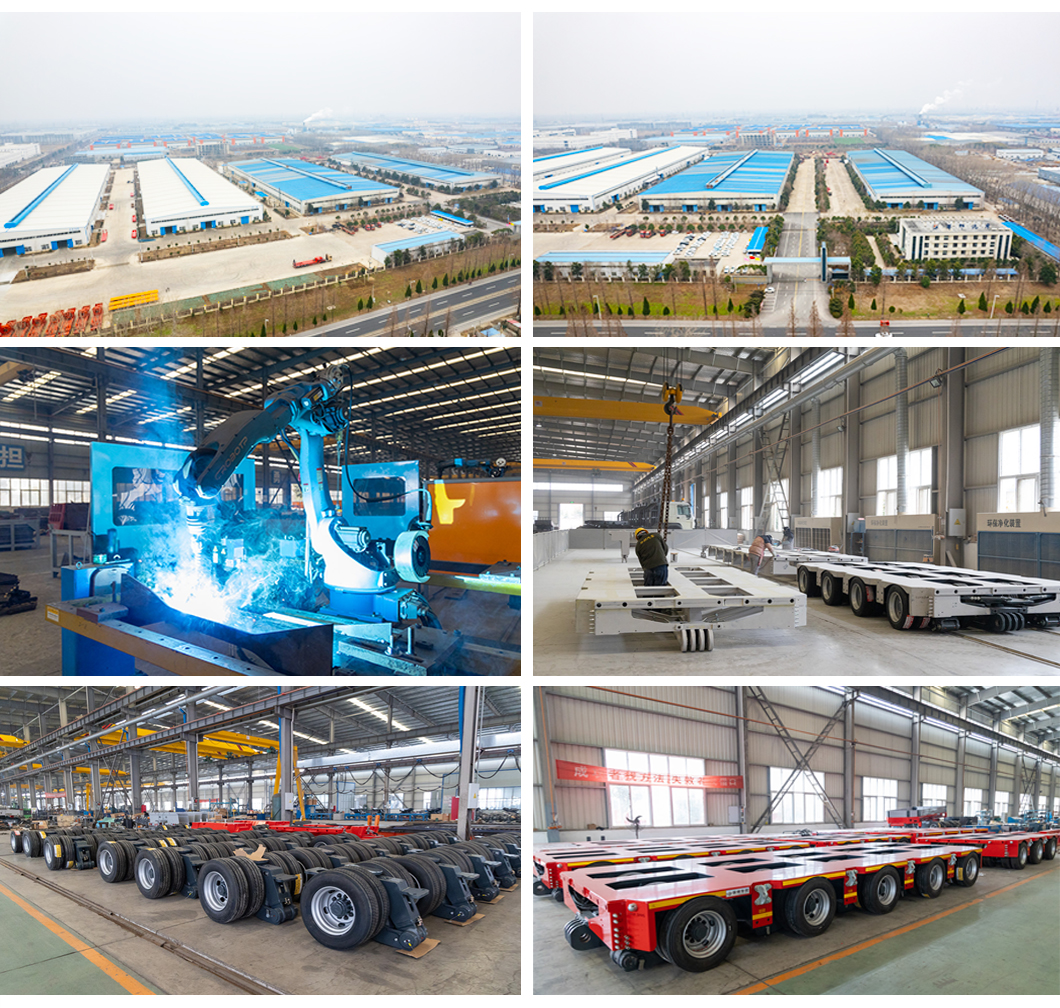

Jiangsu Huayan has more than 20 years of experience in offering total solutions for special transport. We specialize in designing,manufacturing, and supplying specialized trailers,
( Hydraulic Axle trailer ,Flatbed Trailer , Lowbed trailer , Wind blade trailer, Extendable trailer , Gooseneck trailer,Other specialized and customized trailers.)self-propelled transporters,
and other related heavy transport equipment and services all over the world. With our knowledge, experiences, and high safety and quality standards, we can offer unique products
and services with a full range of activities in heavy-haul transportation, and we can always offer you a safe and cost-effective solution for various unconventional transport jobs.
Besides the products themselves, we also offer all kinds of services related to project logistics.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.

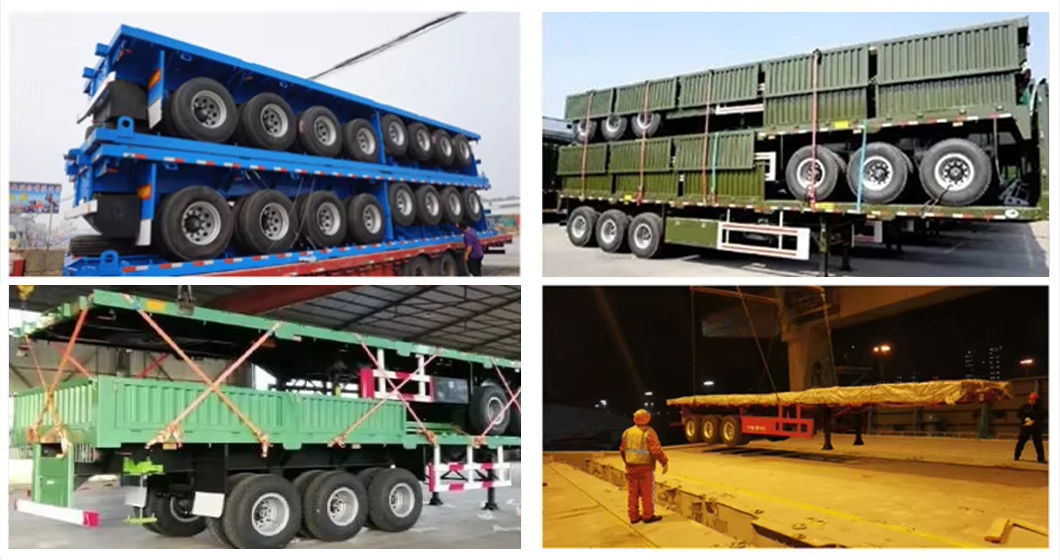

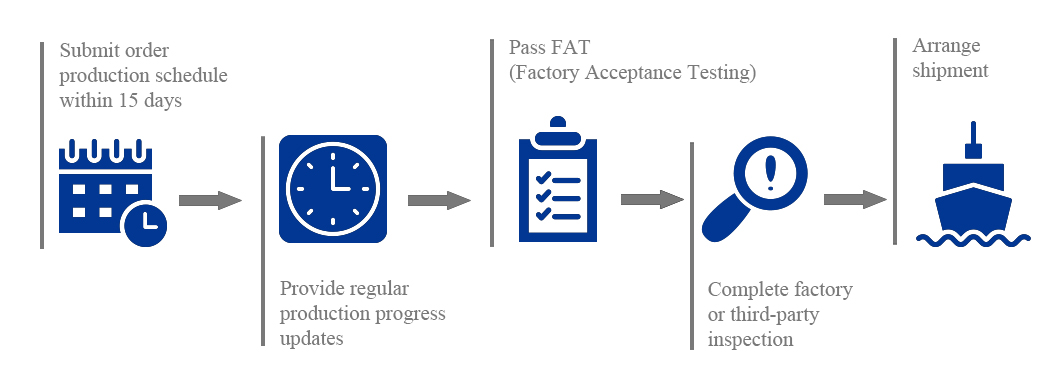

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
