| Quantity: | |
|---|---|

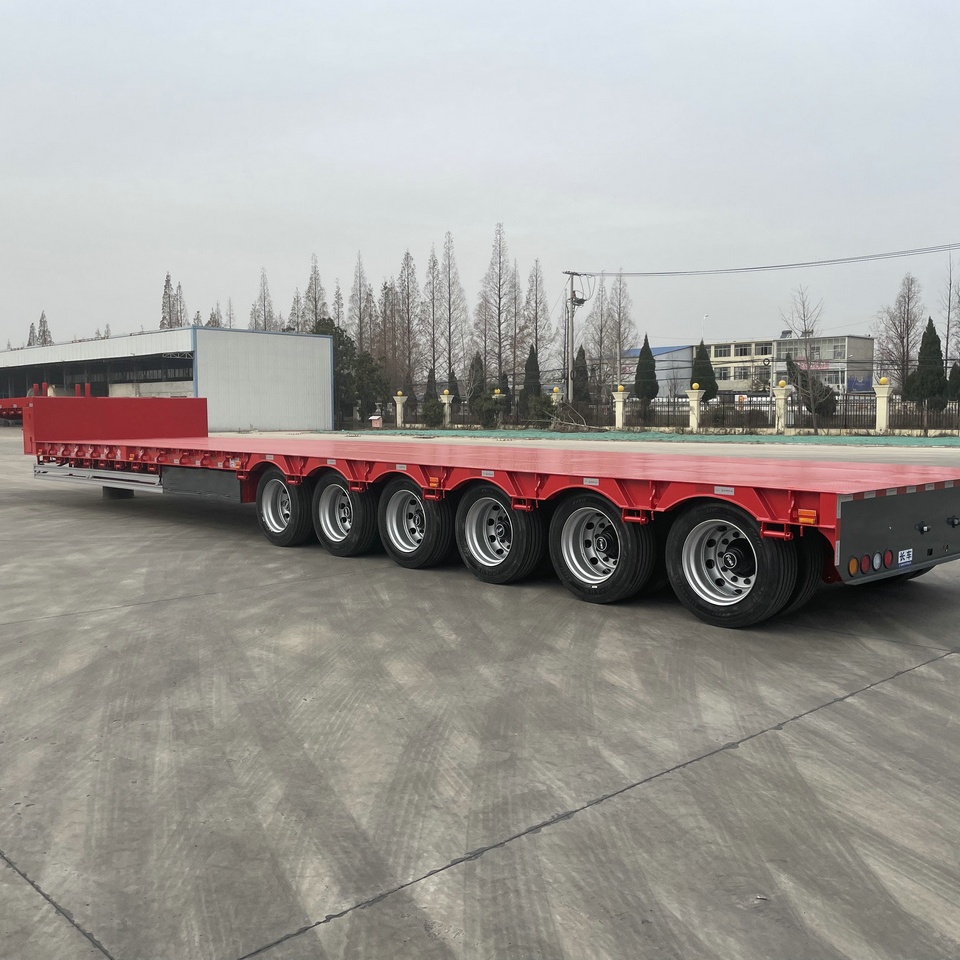

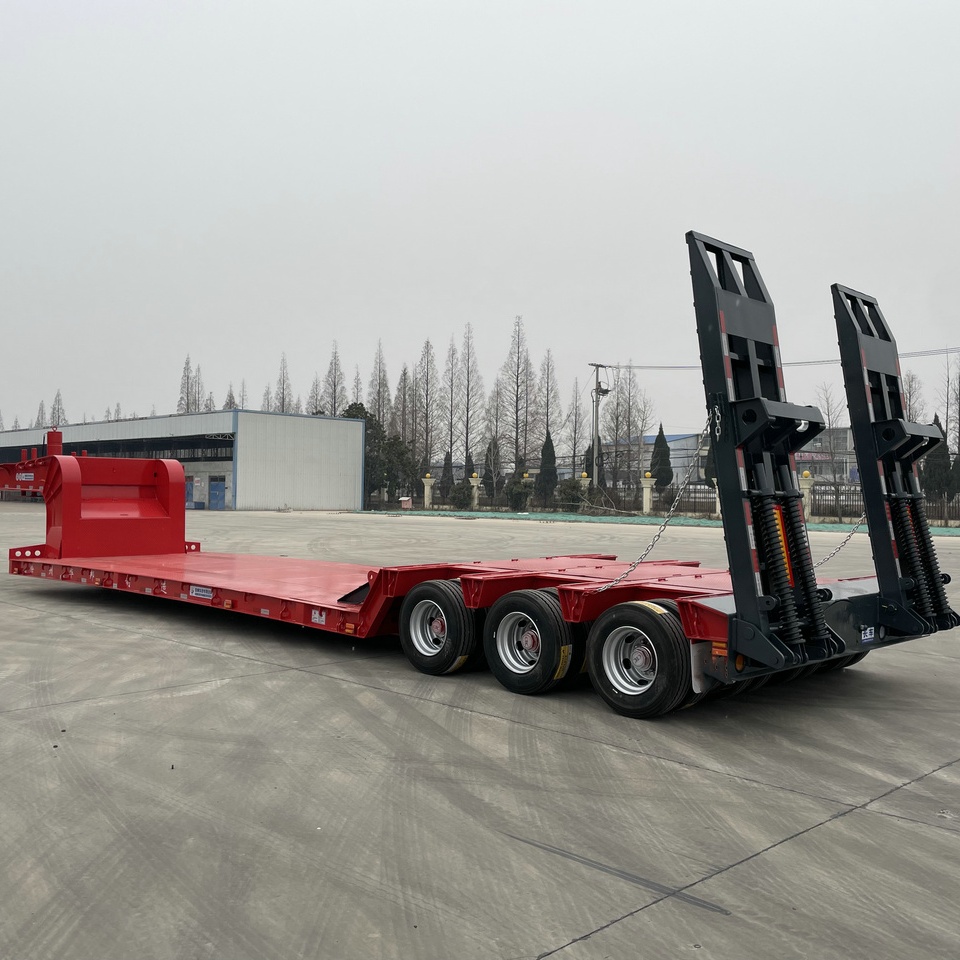

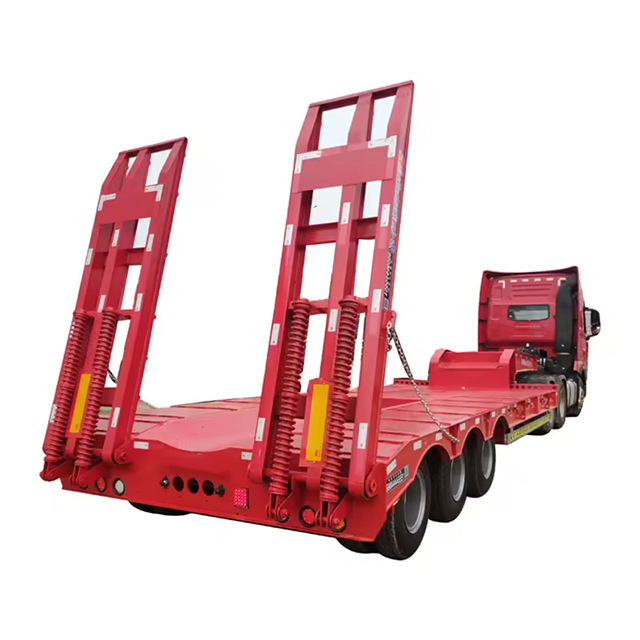

Low flatbed semi-trailer | |||
Basic parameter | |||
Model | AKL9409TDPB | AKL9409TDPK | AKL9409TDPK |
Reference self weight | 6300 | 6400 | 6600 |
Forklift | Within 3 tons | ||
Traction pin | 50 Interchanges | ||
Large structure | |||
Girder | 500*5（8/10） | 500*5（6/8） | 500*6（8/10） |
Boundary beam | 140 profiles | 160 profile T=4 | 140 profiles |
Interspersed beam | 80C | ||
T-shaped cantilever | 7 T-shaped cantilevers | 5 bending pieces | |
Bearing beam | 9 square tubes | ||
Fender | Carbon Steel | ||
Rear protection | |||
Side protection | |||
Cord hook | Round steel | ||
Contactus formore productmodeland parameter details, support customization

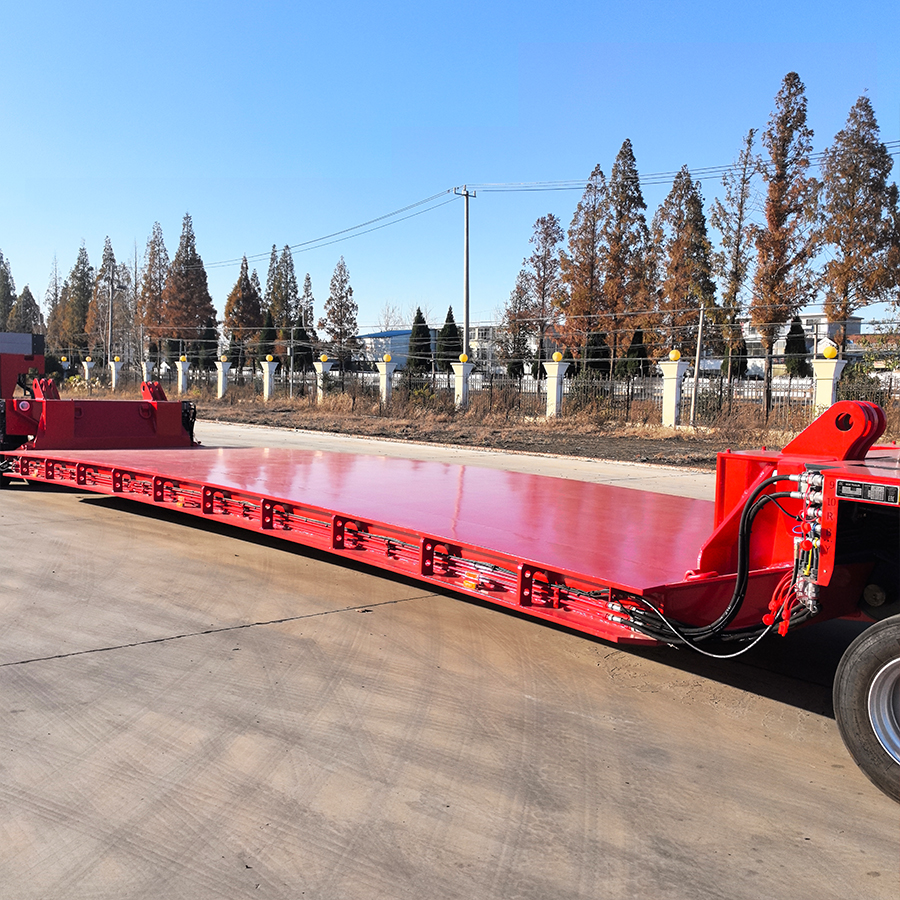

This trailer adopts a detachable gooseneck and concave beam composite structure design, which has stronger load-bearing capacity and low center of gravity. The optimized
suspension system significantly improves driving stability, and the modular architecture supports fast loading and unloading operations, adapting to a variety of specifications
of goods, effectively improving transportation efficiency. Standardized parts ensure versatility and convenient maintenance, while providing highly customized solutions to meet
personalized needs.
Advanced design concept:
1. The main design concept is to minimize the height of the rear platform, increase the length of the rear platform, and increasethe loading capacity of the entire vehicle;
2. Lightweight design, using high-strength steel/ultra-high strength steel materials for the entire vehicle, with strongerload-bearing capacity and lighter self weight;
3. Standardized and modular design of components, accessories can be selected according to customer needs, making installation andmaintenance more convenient in the later stage;
Product features:
1. Low platform, lower vehicle center of gravity for greater safety;
2. Wide goose neck, the maximum width of the front platform can reach 2096;
3. Large capacity, integrated flower basket toolbox, with larger volume space.
Our customers
About us
Jiangsu Huayan is a professional manufacturer of semi-trailer committed to improving quality and insisting on the principles of innovation, quality, professionalism, and mutual
benefit to satisfy customers. Strong technical force, superb manufacturing technology, equipment, and professional production team provide a solid backing quality assurance
for product innovation development and production. We have more than 20 years of export experience, we guarantee the highest quality by having control and supervision over
every single detail. Advantage
Large filling capacity, lightweight, cost-effective;
High safety: the bottle material is prime quality, uniform force, and reasonable stress distribution;
Good fatigue resistance: the use of finite element fatigue analysis and design, to ensure the good fatigue resistance of the equipment;
A safety discharge device provides Both ends of the bottle body. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will work
automatically to ensure the safety of property and personnel.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.
Packing & Delivery
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
2. What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed
trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
