| Quantity: | |
|---|---|
Low flatbed semi-trailer | |||
Basic parameter | |||
Model | AKL9409TDPB | AKL9409TDPK | AKL9409TDPK |
Reference self weight | 6300 | 6400 | 6600 |
Forklift | Within 3 tons | ||
Traction pin | 50 Interchanges | ||
Large structure | |||
Girder | 500*5（8/10） | 500*5（6/8） | 500*6（8/10） |
Boundary beam | 140 profiles | 160 profile T=4 | 140 profiles |
Interspersed beam | 80C | ||
T-shaped cantilever | 7 T-shaped cantilevers | 5 bending pieces | |
Bearing beam | 9 square tubes | ||
Fender | Carbon Steel | ||
Rear protection | |||
Side protection | |||
Cord hook | Round steel | ||
Contactus formore productmodeland parameter details, support customization

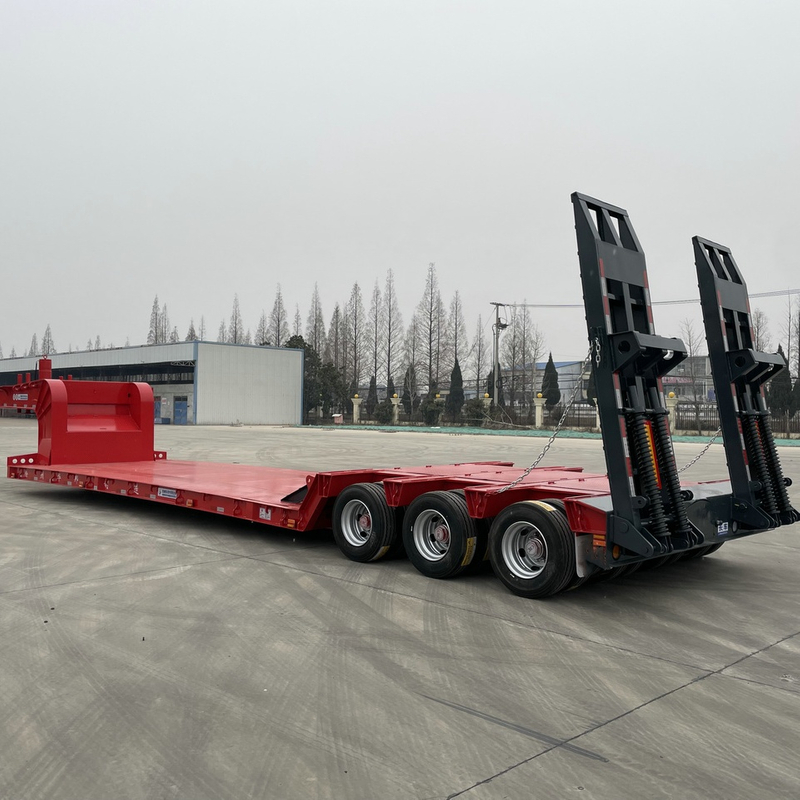

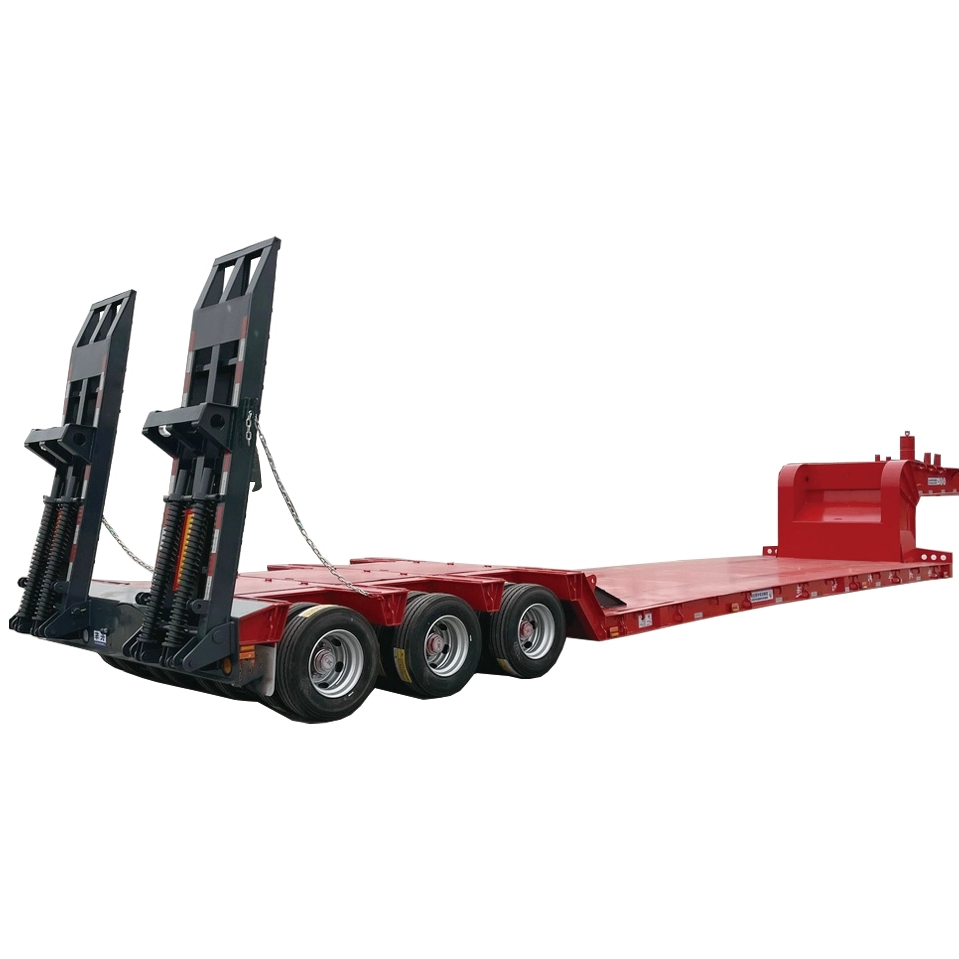

This trailer adopts a detachable gooseneck and concave beam composite structure design, which has stronger load-bearing capacity and
low center of gravity. The optimized suspension system significantly improves driving stability, and the modular architecture supports fast
loading and unloading operations, adapting to a variety of specifications of goods, effectively improving transportation efficiency.
Standardized parts ensure versatility and convenient maintenance, while providing highly customized solutions to meet personalized needs.
Advanced design concept:
1.The main design concept is to minimize the height of the rear platform, increase the length of the rear platform, and increasethe
loading capacity of the entire vehicle;
2. Lightweight design, using high-strength steel/ultra-high strength steel materials for the entire vehicle, with strongerload-bearing
capacity and lighter self weight;
3. Standardized and modular design of components, accessories can be selected according to customer needs, making installation
andmaintenance more convenient in the later stage;
Product features:
1. Low platform, lower vehicle center of gravity for greater safety;
2. Wide goose neck, the maximum width of the front platform can reach 2096;
3. Large capacity, integrated flower basket toolbox, with larger volume space.
Our customers
About us
Jiangsu Huayan is a professional manufacturer of semi-trailer committed to improving quality and insisting on the principles of
innovation, quality, professionalism, and mutual benefit to satisfy customers. Strong technical force, superb manufacturing
technology, equipment, and professional production team provide a solid backing quality assurance for product innovation
development and production. We have more than 20 years of export experience, we guarantee the highest quality by having
control and supervision over every single detail. Advantage 1. Large filling capacity, lightweight, cost-effective; 2. High safety:
the bottle material is prime quality, uniform force, and reasonable stress distribution; 3. Good fatigue resistance: the use of finite
element fatigue analysis and design, to ensure the good fatigue resistance of the equipment; 4. A safety discharge device provides
Both ends of the bottle body. In case of abnormal working conditions such as overpressure and fire, the safety discharge device will
work automatically to ensure the safety of property and personnel.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer
national requirements.

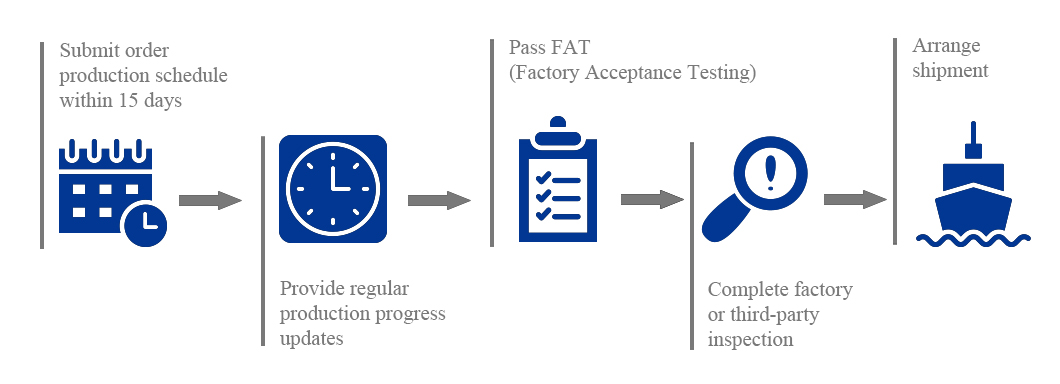

Packing & Delivery
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.

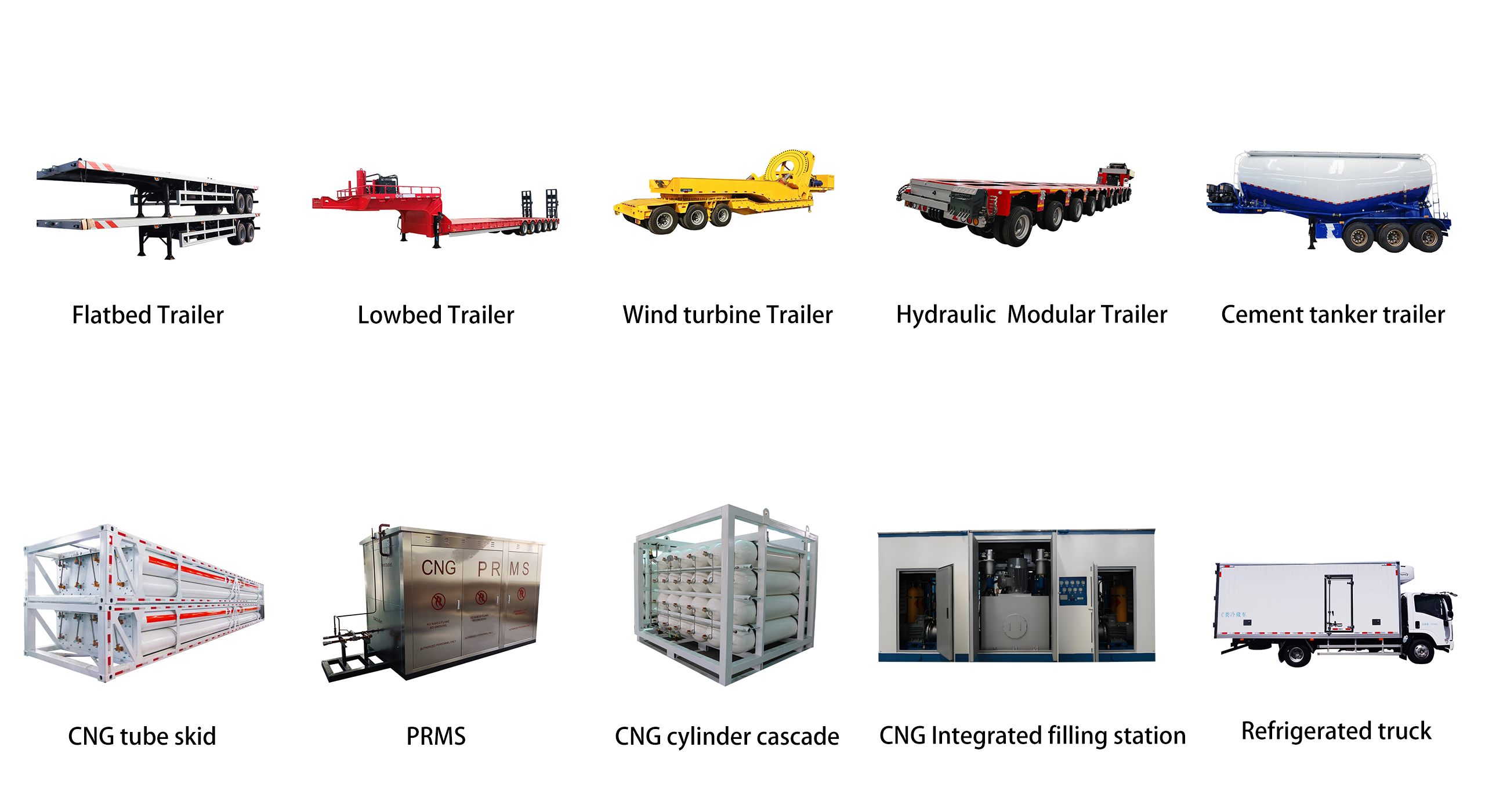

2. What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed
trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
