What is the difference between a CNG Daughter Station and a CNG Mother Station?

In the field of natural gas refueling stations, many people who are new to the industry ask the same question: "What exactly is the difference between a CNG daughter station and a CNG mother station?"

Simply put, the core difference lies in "gas source" and "functional positioning."

A CNG Mother Station is like a "central kitchen." It is directly connected to the natural gas pipeline network, uses large compressors to boost the gas pressure to 20–25 MPa, and then fills CNG tube trailers. The mother station is responsible for "producing" high-pressure natural gas.

A CNG Daughter Station is like a "mobile distribution point." It is not directly connected to the pipeline network. Instead, it receives high-pressure natural gas transported by tube trailers from the mother station, and then uses its own daughter station compressor to further boost the pressure or directly dispense it to vehicles. The core task of the daughter station is "distribution and dispensing."

If the mother station is the "source," then the daughter station is the "terminal" that reaches the end user directly. The greatest value of a daughter station lies in its ability to be flexibly deployed in suburban areas, industrial parks, logistics bases, or emergency gas supply points where the pipeline network has not yet reached — truly enabling natural gas to "go out."

Flexible Customization – Daughter Station Solutions for Different Scenarios

Our CNG daughter station system is not a one-size-fits-all solution. Every project has unique operating conditions, site constraints, and budgets. That is why we offer "all products and systems can be customized on demand."

Whether you choose mechanical piston compression or advanced hydraulic-driven compression technology, we can tailor the solution to your gas source conditions. Taking our hydraulic-driven CNG daughter station compressor as an example, it offers the following outstanding advantages, each of which can be adapted to project requirements:

High efficiency and energy saving: Low motor power and low power consumption, significantly reducing operating costs.

Extreme reliability: Dual-compressor skid configuration (one working, one standby) ensures 24-hour continuous operation of the refueling station.

Clean gas: Fully oil-free lubrication technology (optional) ensures the outlet natural gas is clean and oil-free, meeting environmental and high-end customer requirements.

Minimal maintenance: Low vibration and low noise; vertical cylinder installation effectively extends seal life and greatly reduces maintenance frequency.

Intelligent management: Supports unattended fully automatic control and remote monitoring via a mobile APP.

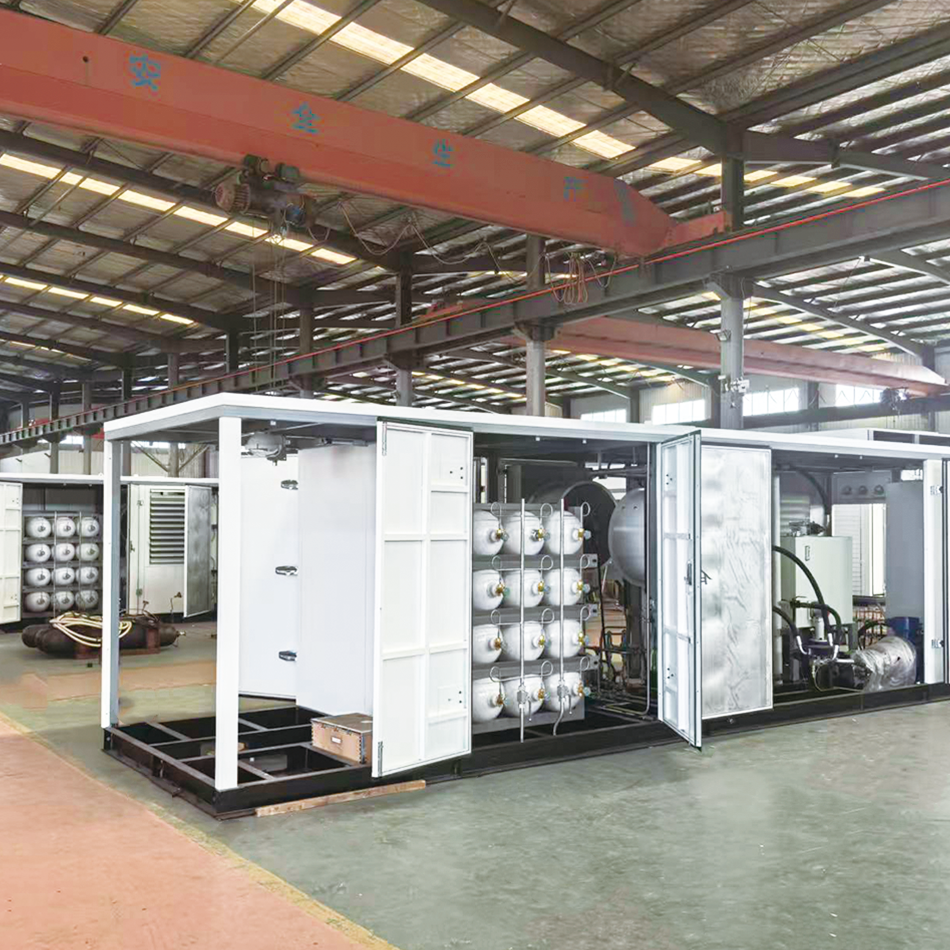

Customizable configuration: A wide range of displacement, inlet pressure, and discharge pressure combinations are available, covering filling requirements from 45 MPa to 70 MPa. For example, we can customize an integrated skid-mounted structure based on site constraints, highly integrating the compressor, cooler, buffer tank, sequence control panel, etc., to achieve minimal footprint and maximum installation convenience.

Core Equipment – Self-Controlled and Reliable

We can provide professional products and integration services for all core equipment required by a CNG daughter station:

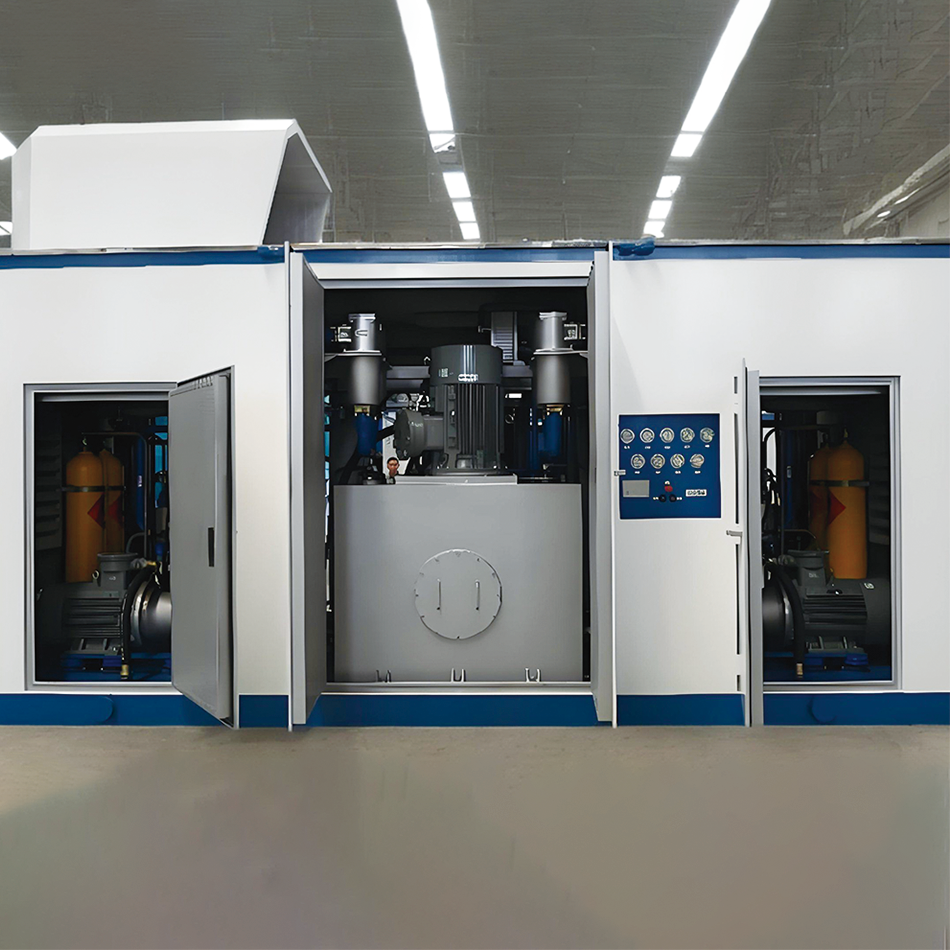

CNG daughter station compressor: Hydraulic-driven or mechanical type, multiple models available.

Tube bundle container / Cylinder bundle: Integrated steel cylinder units for transporting and storing high-pressure natural gas, from 20 MPa to 25 MPa; cylinder specifications, tube count, and volume can all be customized.

Gas storage cylinder bank: Provides stable buffering and storage capacity, supporting customization of different volumes and pressure levels.

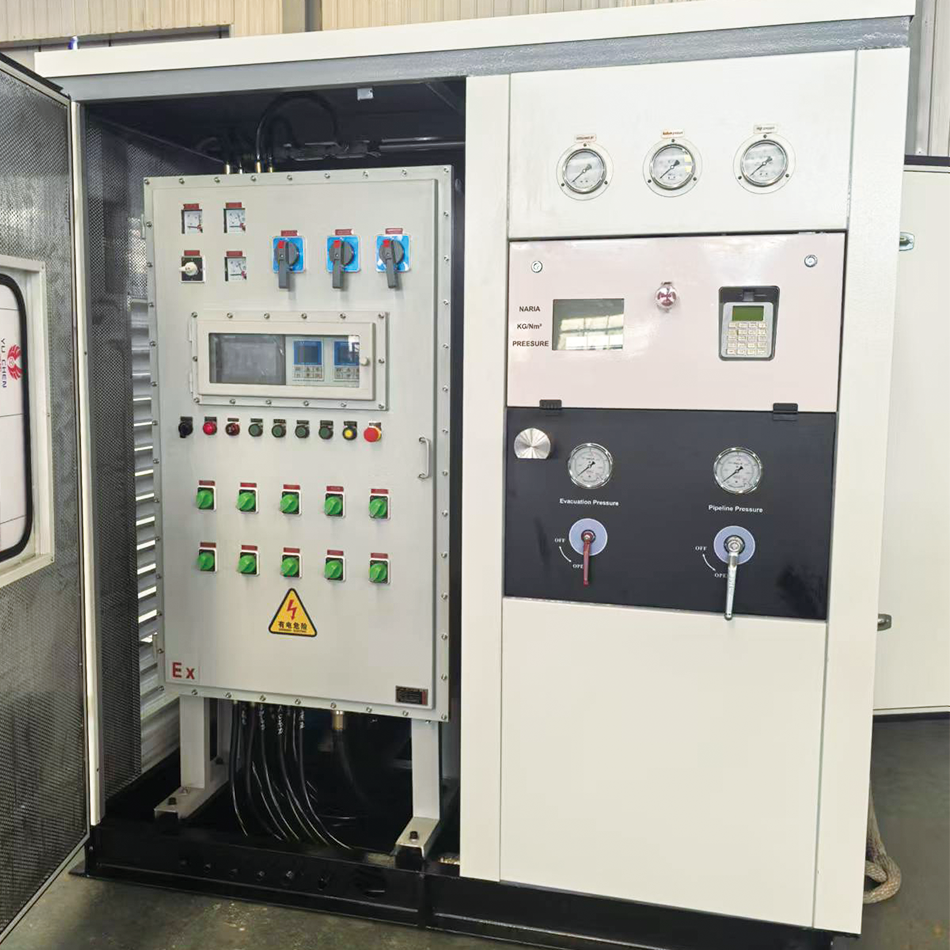

Sequence control panel: Intelligently controls the charging and discharging sequence of the storage cylinder bank to ensure refueling efficiency.

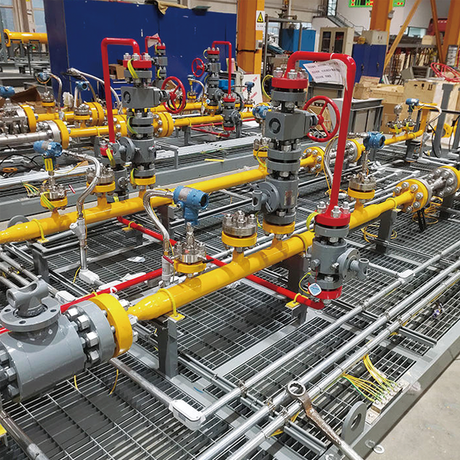

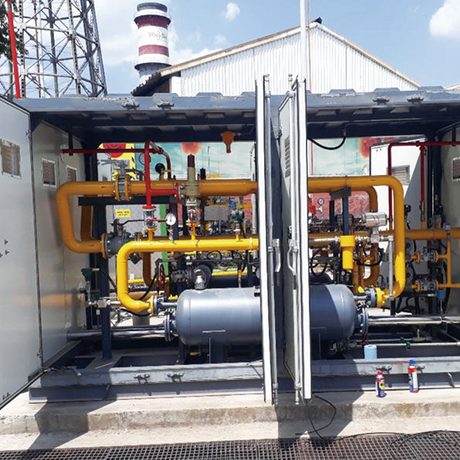

CNG decompression skid: If the site requires pressure reduction, we also provide a matching two-stage pressure regulation and decompression system.

About Us – Your Reliable Natural Gas Energy Equipment Partner

We are a high-tech enterprise integrating R&D, design, production, sales, and system integration. We are committed to providing global customers with complete industry chain solutions in the CNG, LNG, and hydrogen energy fields.

Technology leadership: We own multiple industry-first technologies, including large-volume steel-lined carbon fiber wrapped cylinders and high-pressure tube bundle transport equipment, with product performance reaching internationally advanced levels.

Full qualifications: Our products are designed and manufactured in strict accordance with international standards such as ISO and ASME, and have obtained multiple international certifications including CE and TÜV, ensuring quality and safety.

Rich experience: Our products and services have been widely used in refueling stations, industrial gas supply, city peak shaving, and mobile energy applications in more than 40 countries and regions around the world, earning deep trust from customers.

One-stop service: From single equipment supply to complete CNG refueling station EPC turnkey projects, we can provide project consultation, technical selection, customized production, installation and commissioning, and lifelong operation and maintenance services.

Choose us, and you choose professionalism and commitment. No matter where your CNG daughter station needs are, no matter how special the operating conditions, we have the capability to tailor the optimal solution for you.

Contact us to start your customized CNG daughter station solution.
