What is the Single Cylinder Volume and Working Pressure of a CNG Cascade Bundle?

When selecting a solution for compressed natural gas, the most critical questions often revolve around capacity and capability: how much can it store, and under what pressure? Today, let's explore the CNG Cascade Bundle from Huayan and see how it meets diverse needs.

To address the core question directly: Huayan's CNG Cascade Bundles are designed to meet working pressures of 200bar (20MPa) and 250bar (25MPa). This means whether you need standard fueling station operations or higher storage density for specific applications, the system is equipped to handle it.

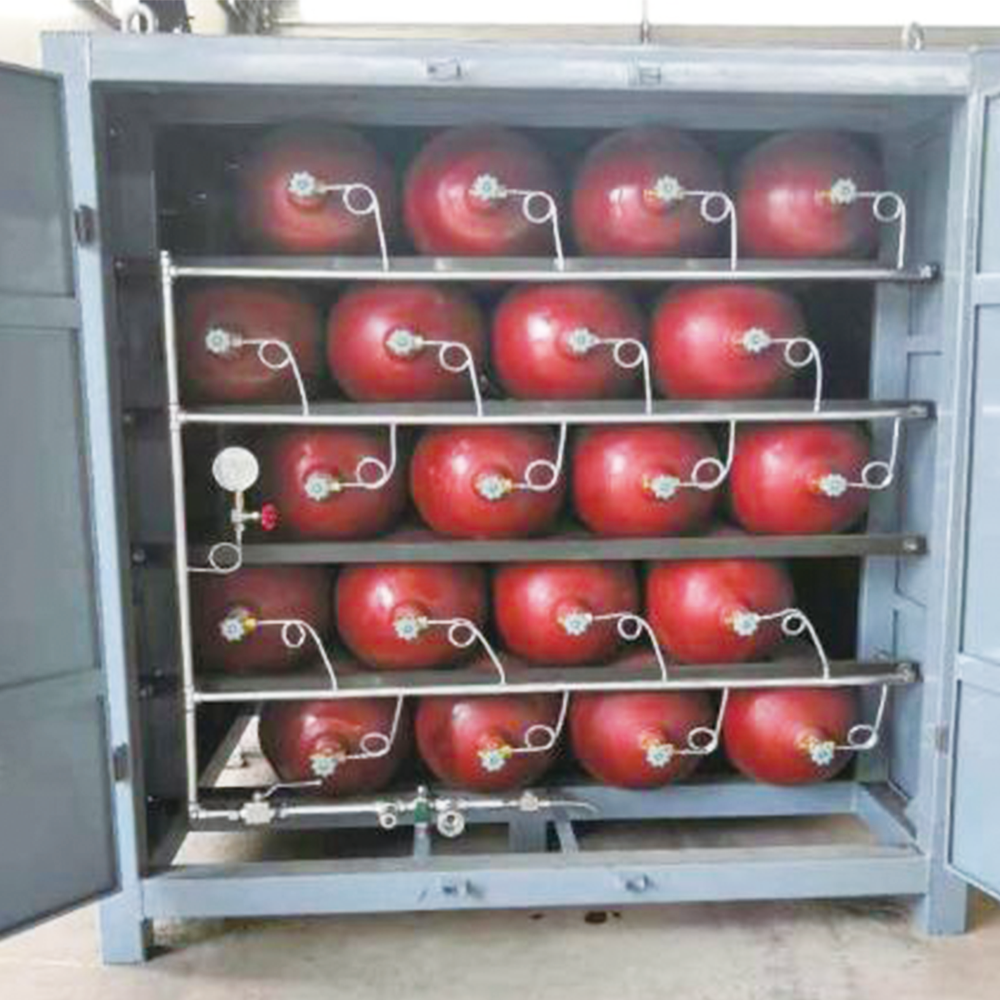

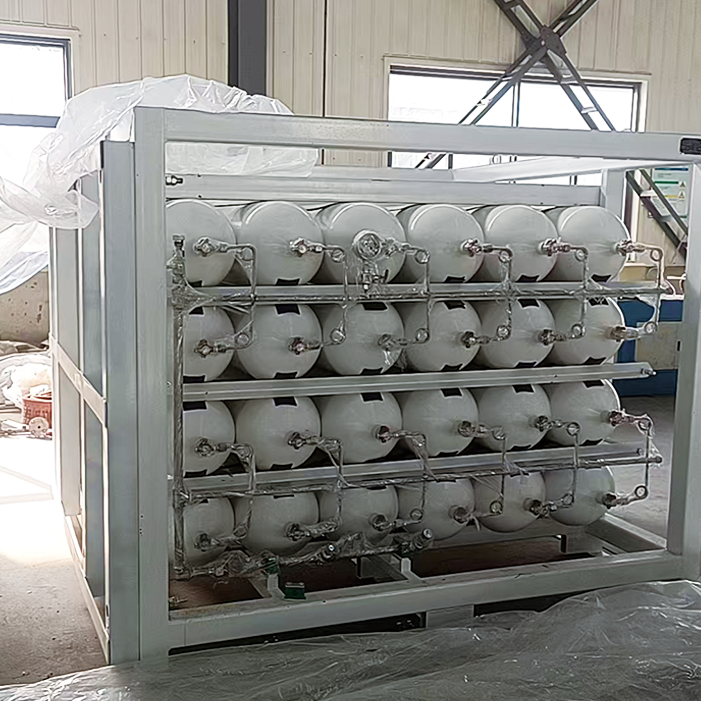

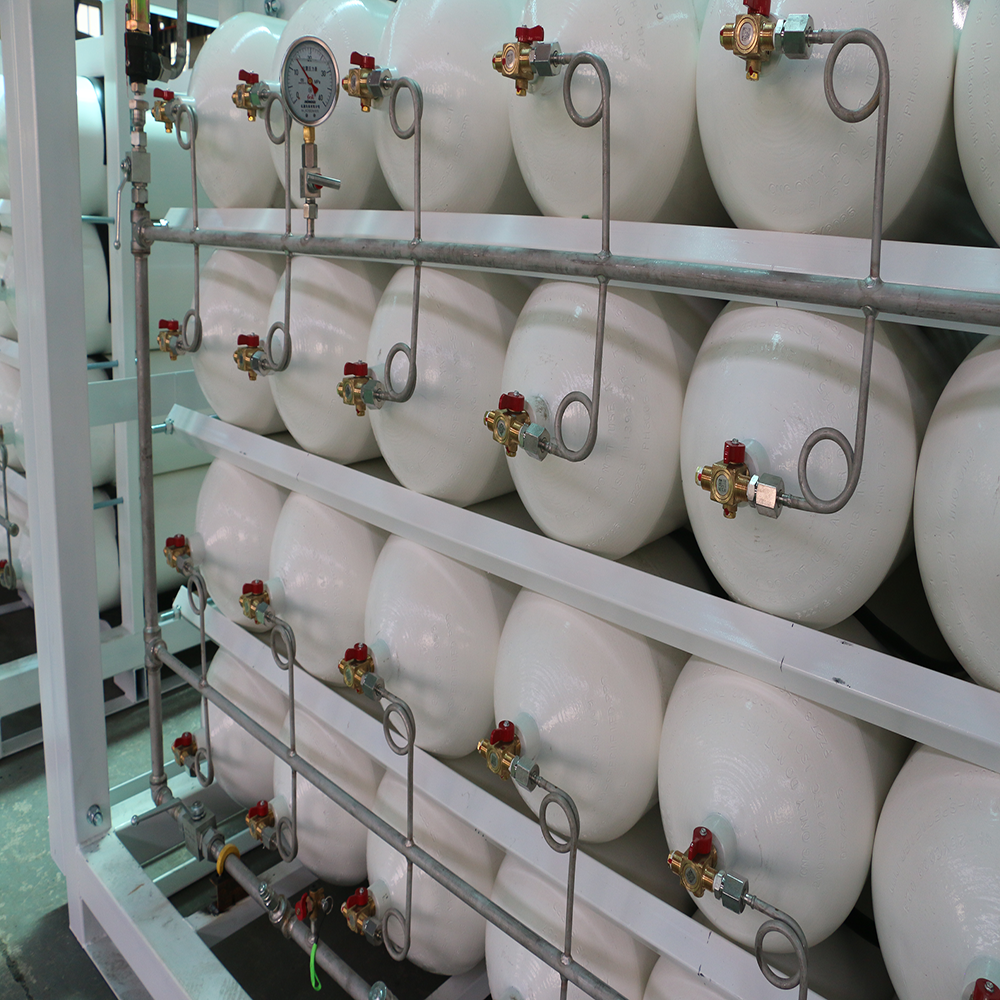

What about the single cylinder volume? This is where Huayan's flexibility truly shines. The water volume per cylinder is not fixed but can be customized based on your project requirements, typically ranging from 2000 liters to 3000 liters. By integrating multiple large-diameter seamless steel cylinders (like Φ356mm or Φ559mm), we create a powerful CNG Storage Cascade. This Gas Cylinder Cascade usually consists of 8 to 12 cylinders bundled together, forming an efficient and compact gas storage unit.

This design is far more than just bundling cylinders together. It represents a complete CNG Bundle Cylinder solution. Imagine a single cascade bundle as a mobile mini-gas station. Whether it's for refueling city bus fleets, supplying gas to industrial parks, or serving as emergency backup during pipeline maintenance, this equipment excels due to its rapid deployment and simple operation.

Crucially, Huayan's customization goes beyond just cylinder volume and working pressure. From the cylinder specifications and quantity to the choice between high-pressure flanges or quick-coupling interfaces, and even the overall configuration (whether a frame-style skid or a tube bundle container), everything can be tailored to your specific application scenario and transportation needs. We believe the best solution is one built precisely for you.

So, when you are evaluating CNG storage and distribution equipment, remember that Huayan's CNG Cascade Bundles not only offer reliable performance at 200bar and 250bar but also ensure a perfect fit for your operational demands through highly personalized service.
