What are the Inlet Pressure, Outlet Pressure, and Flow Rate of a CNG Pressure Reducing Skid?

When discussing industrial gas applications with our clients, the most frequently asked questions are invariably: "What's the maximum inlet pressure this CNG skid can handle? What outlet pressure can it steadily reduce to? And what's its flow capacity per hour?"

If you search online, you might find general technical parameters like "Inlet Pressure: 0.1 - 25Mpa," "Outlet Pressure: 0.02 - 0.4Mpa," and "Flow Range: 50Nm³/h ~ 15000Nm³/h." These figures accurately represent the broad capability range of Huayan's CNG Pressure Reducing Skid product series.

However, as an experienced solution provider, we want to share a more crucial insight: These seemingly fixed numbers are actually the starting point for a customized solution, not the final answer.

Why is this? Because a truly effective CNG Pressure Regulating Skid is never just a rigid combination of parameters. It needs to function like a versatile tool, perfectly adapted to your unique operational environment.

Is your gas source pressure 25MPa, or perhaps 20MPa? Huayan skids are designed to robustly handle up to 25MPa inlet pressure, but we precisely match the configuration to your project's specific source conditions.

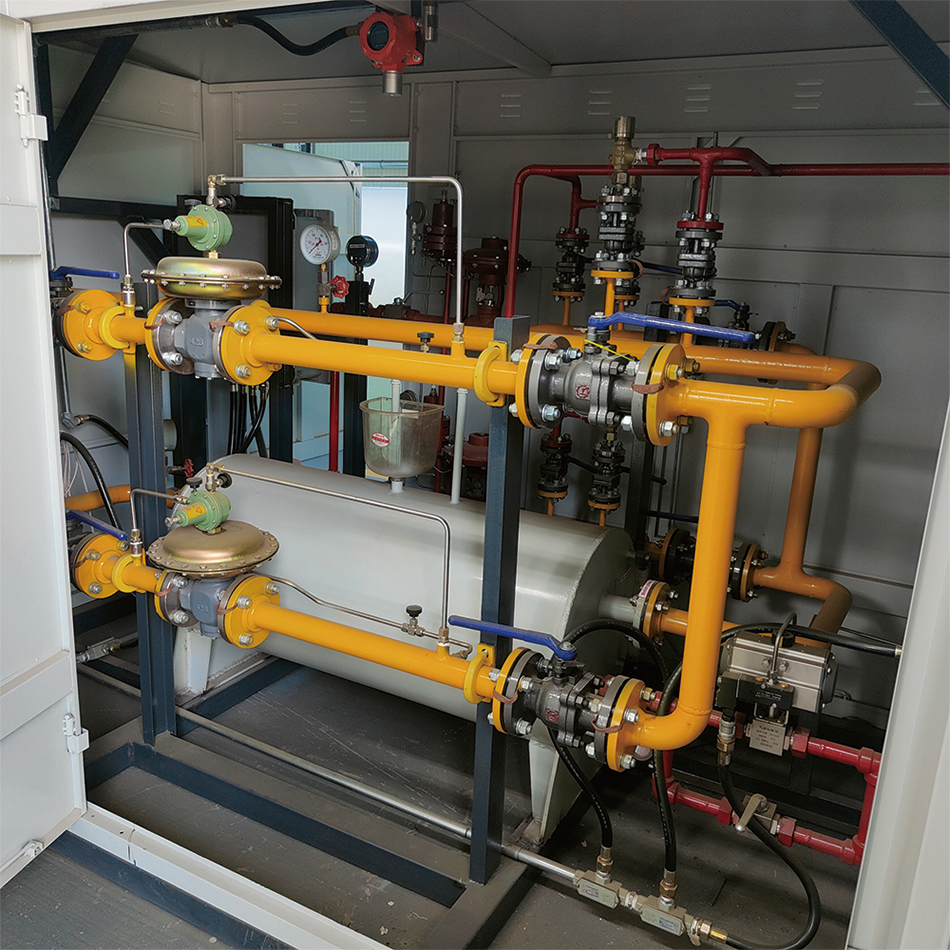

Does your end-use equipment require 0.2MPa for a boiler, or 0.4MPa for a direct-fired turbine? This dictates the core setting of our regulation module. We select top-tier regulators from brands like Emerson or Kimray and configure single or dual-stage regulation (like 2+0, 1+0 structures) to ensure output pressure accuracy of ±5%, perfectly stabilizing supply for your downstream needs.

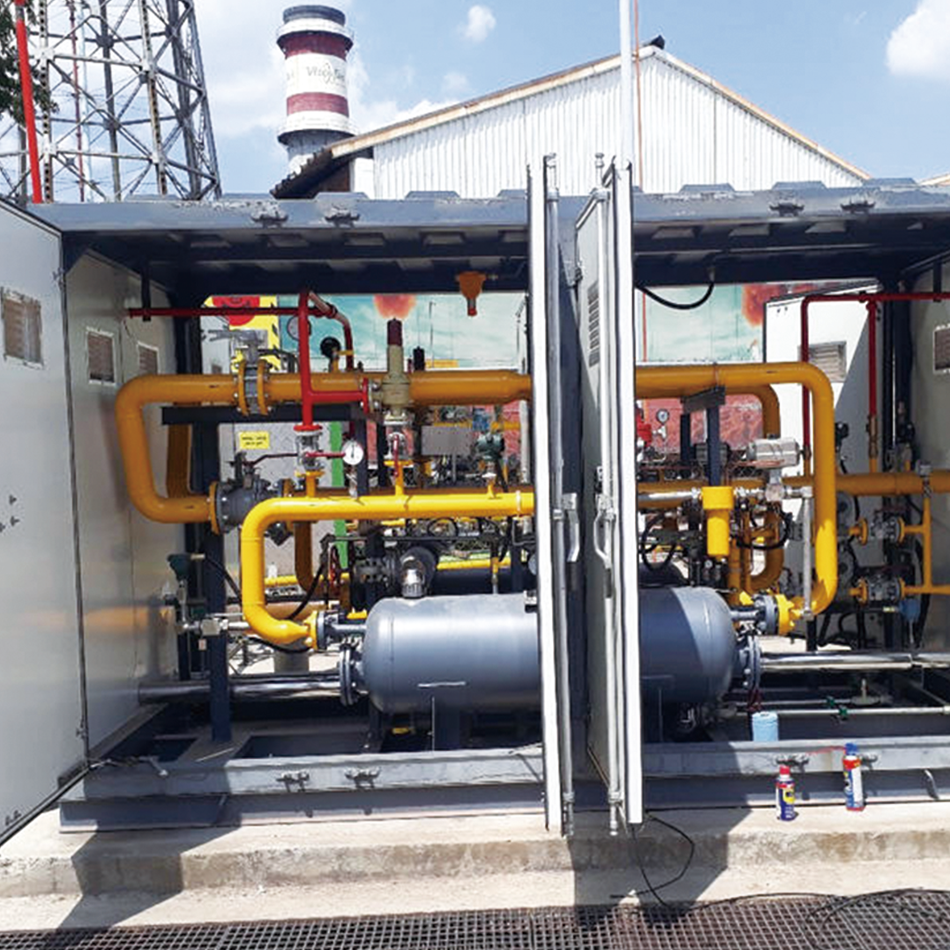

Are you supplying a small residential complex or an industrial park needing thousands of cubic meters per hour? The vast flow range from 50 to 15,000 Nm³/h dictates completely different pipe diameters, valve sizes, and metering instrument selections. Whether you need a compact 500Nm³/h civil station or a large 5000Nm³/h industrial skid equipped with a water bath heater and Siemens PLC cabinet, our modular design delivers a precise fit.Think of it like ordering a bespoke suit. The basic measurements are the foundation, but the fabric, cut, lining, and buttons are all meticulously chosen based on your physique and the occasions you'll attend. Huayan's CNG skid works the same way:

Selectable Core Components: Do you prefer the renowned durability of SS304 stainless steel, or is another coated finish better suited to your environment?

Expandable Functional Modules: Do you need an integrated, high-accuracy metering system? A powerful heating system to prevent icing in cold climates? PLC integration for remote monitoring and unattended operation? We can add these based on your specific working conditions.

Configurable Safety Standards: ASME, CE, or your local specific certifications? All our products undergo rigorous factory tightness and pressure tests, ensuring safe and stable operation whether shipped to the cold of Russia or the heat of South America.

So, back to the original question: What are the inlet pressure, outlet pressure, and flow rate of a CNG pressure reducing skid? The answer is: They aren't a single fixed number, but a customizable range designed around you. At Huayan, we believe no two PRMS units are exactly alike. For every project, we engage in deep consultation, analyzing from the gas source to the end-use requirements, considering local climate and regulations. What you finally receive is a precise and efficient gas regulation solution that seamlessly integrates into your specific workflow.

No matter how unique your requirements, everything is customizable. Contact Huayan, and let's work together to define your ideal CNG Pressure Reducing Skid.
