What Is the Working Principle of a Vaporizer?

How can liquefied natural gas (LNG), stored at a cryogenic -162°C, be safely and efficiently transformed into gaseous fuel for pipelines and industrial use? This seemingly miraculous transformation of energy states hinges on a key piece of equipment: the Vaporizer. Its working principle is essentially a sophisticated “pursuit of heat,” a collaboration between ingenious engineering and natural laws.

At its core, a vaporizer is a highly efficient heat exchange system. Its primary mission is to supply a substantial amount of thermal energy to a cryogenic liquid, enabling its phase change from liquid to gas. This process is accomplished through a central component: the heat exchange tube. As the cryogenic fluid flows through the internal passages, the unit skillfully directs a warmer “heat source” to flow over the external surface of these tubes. The cold liquid continuously and steadily “captures” heat from the external source through the tube wall, gradually increasing its own temperature until it completely converts into gas.

Consequently, the choice of heat source directly defines the type of vaporizer and its application scenarios. This is where engineering ingenuity shines: providing the optimal solution for different needs.

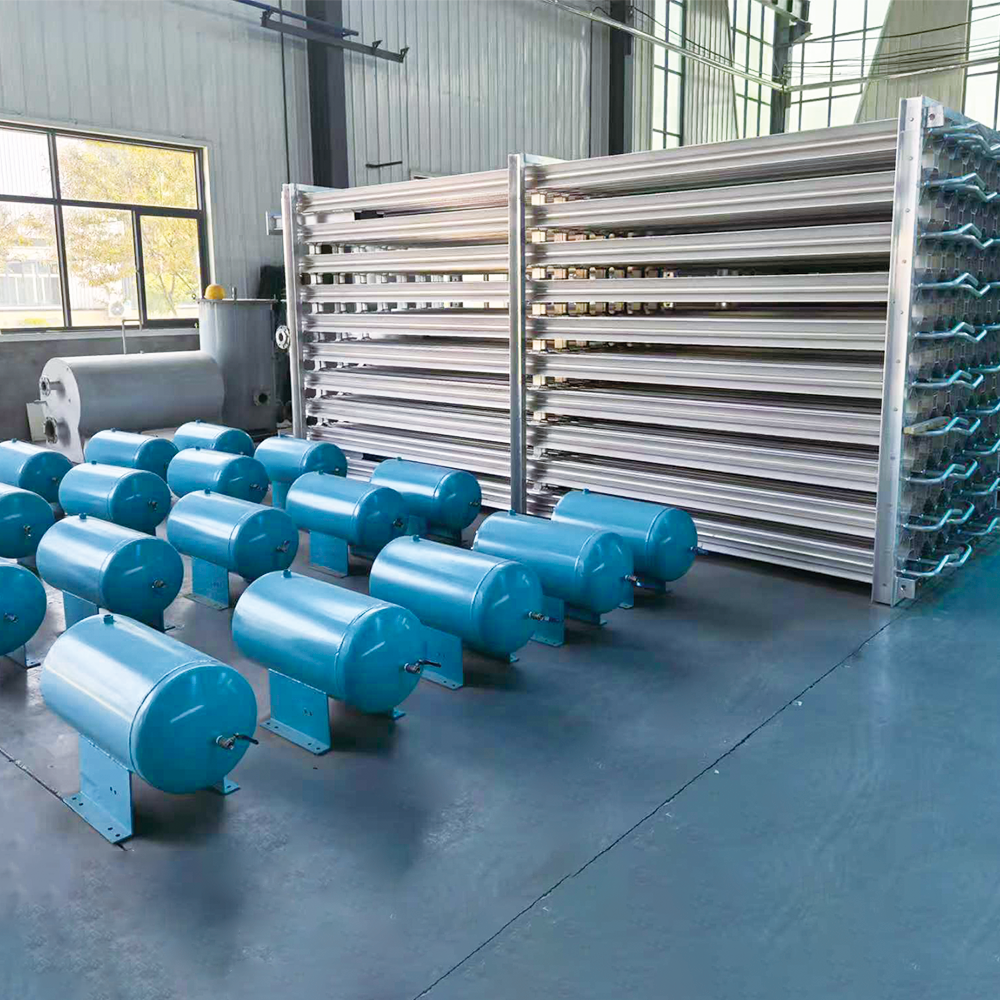

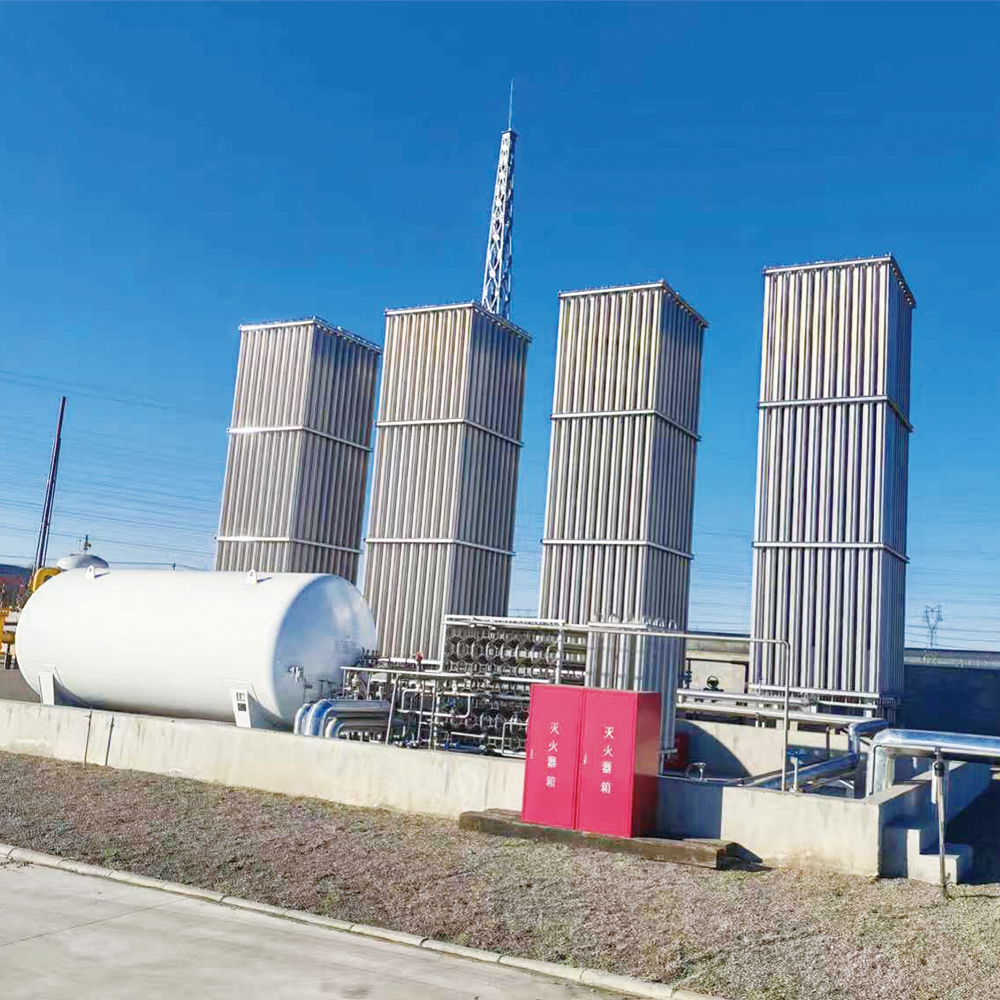

The Limitless Natural Source – Ambient Vaporizer: The classic energy-saving solution. This type of air heated vaporizer maximizes the absorption of heat from the ambient air through a unique finned-tube structure. It operates with zero energy consumption and zero emissions, making it an ideal choice for applications like LNG fueling stations and city gate peak-shaving. Huayan's Industrial Cryogenic Ambient Vaporizer is a prime example, utilizing special aluminum alloy for high heat transfer efficiency and long life.

The Stable & Reliable Artificial Source – Water Bath Vaporizer: When ambient temperatures are too low or when massive, stable vaporization capacity is required, the water bath vaporizer takes the stage. It heats and maintains a water bath at a constant temperature using electricity or fuel, providing a stable and powerful heat source to the cryogenic tubes submerged within. It offers consistent output, unaffected by weather, and is crucial for ensuring the continuity of industrial gas supply.

The Flexible & Precise Supplementary Source – Electric Vaporizer: For applications with lower gas demands or for backup/peak-shaving purposes, the electric vaporizer offers a highly controllable solution. It provides heat directly via internal electric heating elements, allowing for quick start-up, precise modulation, and flexible installation.

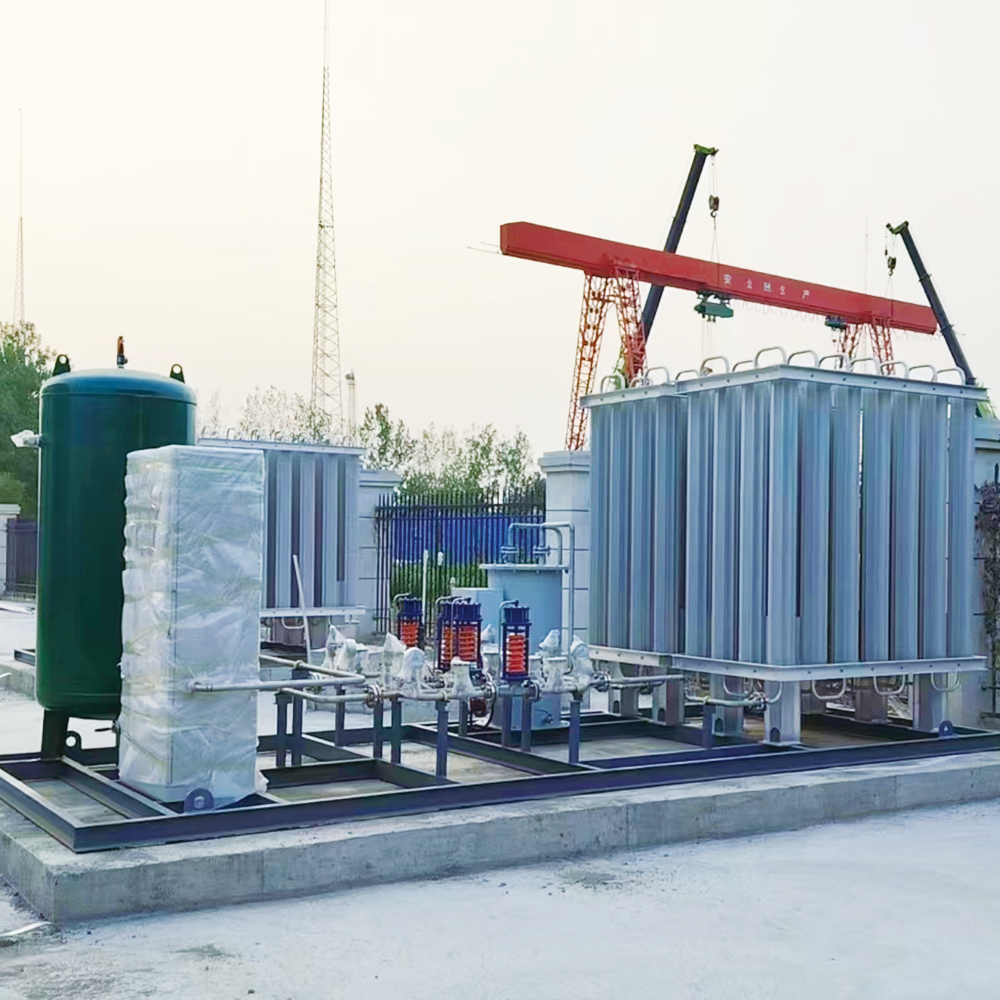

As a professional cryogenic fluid equipment supplier, Jiangsu Huayan International Trade Co., Ltd. understands this deeply. We provide not just a piece of equipment, but a customized energy conversion solution tailored to your unique needs. Whether you require an ambient vaporizer utilizing natural air convection or a complete skid-mounted regasification unit integrated with a water bath section, we can deliver.

Our technological core ensures this heat exchange process is both efficient and reliable:

High-Efficiency Heat Transfer Design: The use of special large-diameter aluminum alloy finned tubes, combining internally optimized flow channels with a vast external surface area, ensures a heat transfer efficiency exceeding 98% and extremely fast defrosting.

Robust and Durable Structure: The innovative “bridge” type connection design effectively eliminates stress caused by thermal expansion and contraction from daily or seasonal temperature swings, extending equipment lifespan.

Safety-First Standards: All products are rigorously cleaned and manufactured in full compliance with oxygen service standards. The process design optimizes pressure drop and prevents flow maldistribution, ensuring safe and controlled gas flow throughout.

We understand that every project's geographical conditions, medium type (LNG, LOX, LIN, LAr, etc.), flow rate, pressure, and spatial layout are unique. Therefore, from the selection of a cryogenic vaporizer to the integration of a complete industrial gas vaporizer system, Huayan supports full customization. You can specify capacity (500-3000 Nm³/h), working pressure, installation method (skid-mounted or containerized), and we will tailor the most suitable liquid gas vaporizer system for you.

Choosing a vaporizer with a sound principle and excellent design means selecting a strong, reliable heart for your energy supply chain. With over two decades of professional expertise, Huayan is committed to transforming heat—whether from nature or man-made sources—into the clean energy that drives your business forward, safely and efficiently through our equipment.

If you are planning or upgrading your vaporization facilities, feel free to contact the Huayan team. Let us provide you with professional customized consultation and solutions.
