What Are the Advantages of Mobile vs. Skid-Mounted CNG Substations?

As global natural gas refueling infrastructure expands rapidly, CNG substations have become an essential alternative gas supply solution for areas not covered by pipeline networks. For gas station operators, industrial parks, and logistics companies, choosing the right type of CNG substation directly impacts investment returns and operational efficiency. So, what are the advantages of mobile versus skid-mounted CNG substations? Let’s break it down.

1. Mobile CNG Substations: Flexible, Agile, and Rapidly Deployable

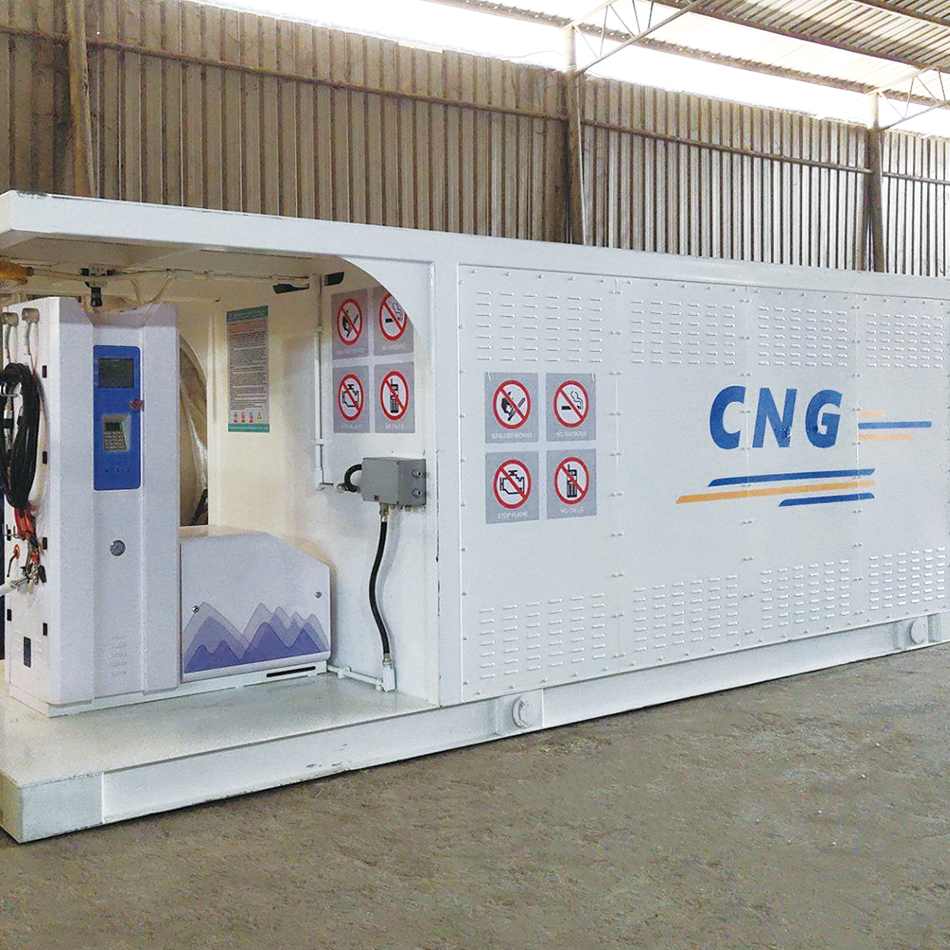

A mobile CNG substation integrates a CNG tube bundle container with a transport chassis, forming a “plug-and-play” mobile gas supply system. Its key advantages include:

1.1 Rapid Deployment with No Civil Construction

A mobile substation can be put into operation immediately upon arrival at the site, requiring no foundation pouring or station building construction. From equipment arrival to commissioning takes only a few hours, making it ideal for emergency gas supply, temporary refueling needs, and fast-track station construction.

1.2 Flexible Relocation and Reusable Assets

When gas demand decreases in one area or a project concludes, the entire mobile substation can be towed to another site for continued use. Equipment assets are not fixed to a single location, significantly shortening the return on investment cycle.

1.3 Multiple Tube Bundle Configurations Available

Depending on transport capacity requirements, customers can choose from various configurations including 9-tube, 10-tube, 11-tube, 14-tube, and up to 16-tube bundle options. For example, Huayan’s 10-tube bundle container offers a total water volume of 29.4m³ and a filling capacity of 7,717Nm³; the 16-tube bundle container offers 39.2m³ total water volume and 12,250Nm³ filling capacity, flexibly matching different scales of gas supply demand.

2. Skid-Mounted CNG Substations: Stable, Efficient, and Modularly Expandable

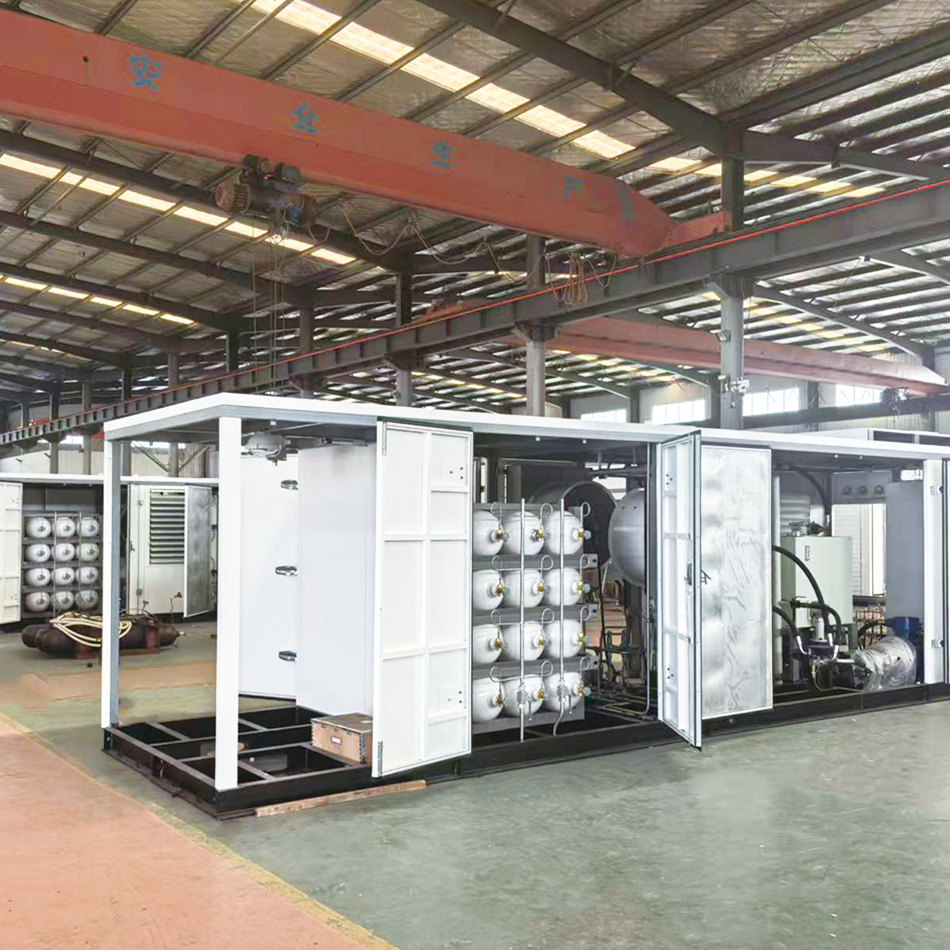

A skid-mounted CNG substation integrates core functional modules—including compressor units, pressure regulation and metering systems, and control systems—onto a skid base, forming a fully functional fixed gas supply station. Its advantages include:

2.1 Complete Functionality, One-Station Solution

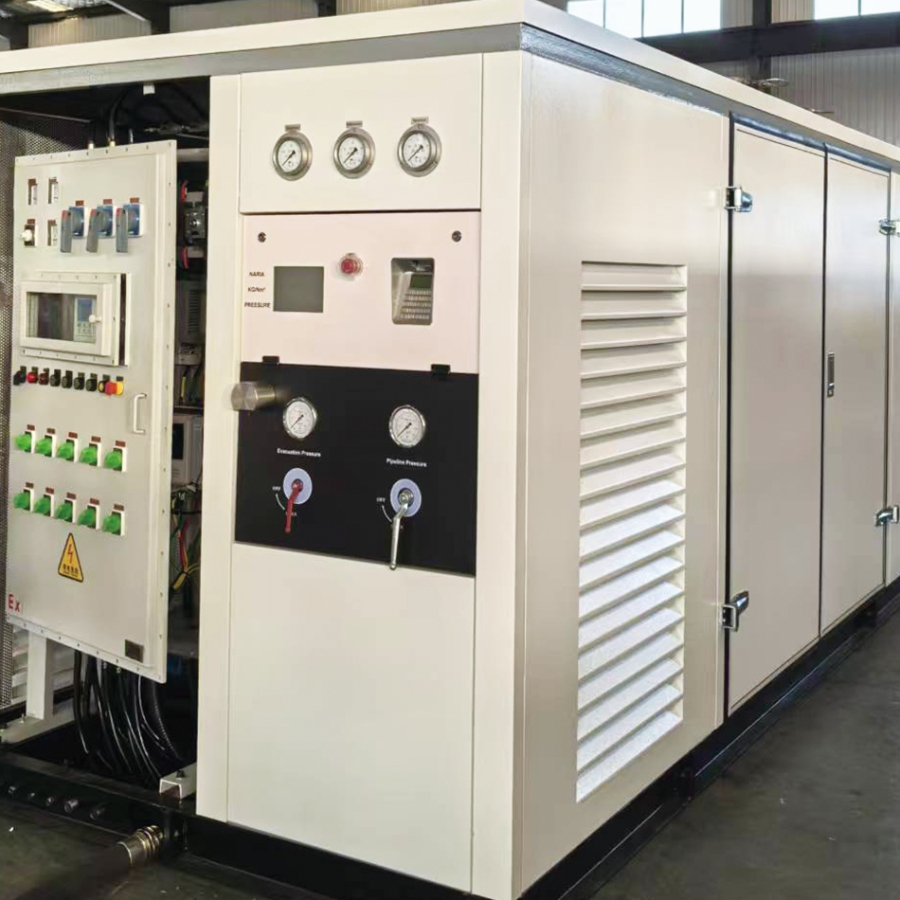

A skid-mounted substation typically includes CNG tube bundle containers, CNG compressors, and Pressure Regulating & Metering Skids (PRMS), covering the entire process from gas source connection and compression to pressure regulation, metering, and vehicle refueling—a true “turnkey” solution.

2.2 Stronger Continuous Gas Supply Capacity

Compared to mobile substations, skid-mounted units can connect to larger-capacity tube bundle container banks or pipeline gas sources, with compressors capable of longer continuous operation. This makes them ideal for fixed stations with stable and substantial gas demand.

2.3 Convenient Modular Expansion

With standardized skid design, additional skid modules can be added flexibly as business demand grows, enabling phased construction and gradual capacity expansion while reducing upfront investment pressure.

2.4 Adaptable to Diverse Operating Conditions

Huayan offers customized CNG substation solutions with flow rates ranging from 500Nm³/h to 2,000Nm³/h, accommodating diverse scenarios from small-scale CNG refueling stations to large industrial park gas supply projects.

3. How to Choose?

Recommendation: For projects with uncertain gas demand, non-fixed station locations, or requiring rapid response, mobile CNG substations offer a more economical and flexible option. For long-term, stable operation at fixed refueling stations and industrial parks, skid-mounted substations provide higher operational efficiency and scalability.

4. About Jiangsu Huayan International Trade Co., Ltd.

Jiangsu Huayan International Trade Co., Ltd. (HUAYN Trailer) was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. The company is an integrated transportation and energy equipment solutions provider combining R&D, manufacturing, and sales. Its main product portfolio includes CNG tube bundle skids, large-capacity CNG compressors, CNG station PRMS, hydraulic modular trailers, powder tank trucks, and liquid tanker trailers.

With over 20 years of export experience, Huayan’s products are sold to numerous countries and regions worldwide. The company holds international certifications including SGS and BV, and complies with international standards such as ISO11120 and ISO668, ensuring that every product undergoes rigorous quality control. Backed by a strong technical team, superior manufacturing processes, and a comprehensive after-sales service system, Huayan is committed to providing customers with a “one-stop, hassle-free” full-service experience.

Huayan’s mission: “Do the same job at half the cost.” This is our unwavering commitment.
