How to Choose Between a 20ft and 40ft Cylinder Bundle? Which One is Right for Your Project?

If you work on CNG projects, you've probably had this dilemma: 20ft or 40ft?

You ask suppliers, and some say "20ft is more flexible," while others say "40ft is more cost-effective." They all sound reasonable, but which one actually saves you money on transport, gives you the right capacity, and fits your site? The real question boils down to one thing — how do I choose the option that saves me money and gets the job done?

First, what does a cylinder bundle actually do?

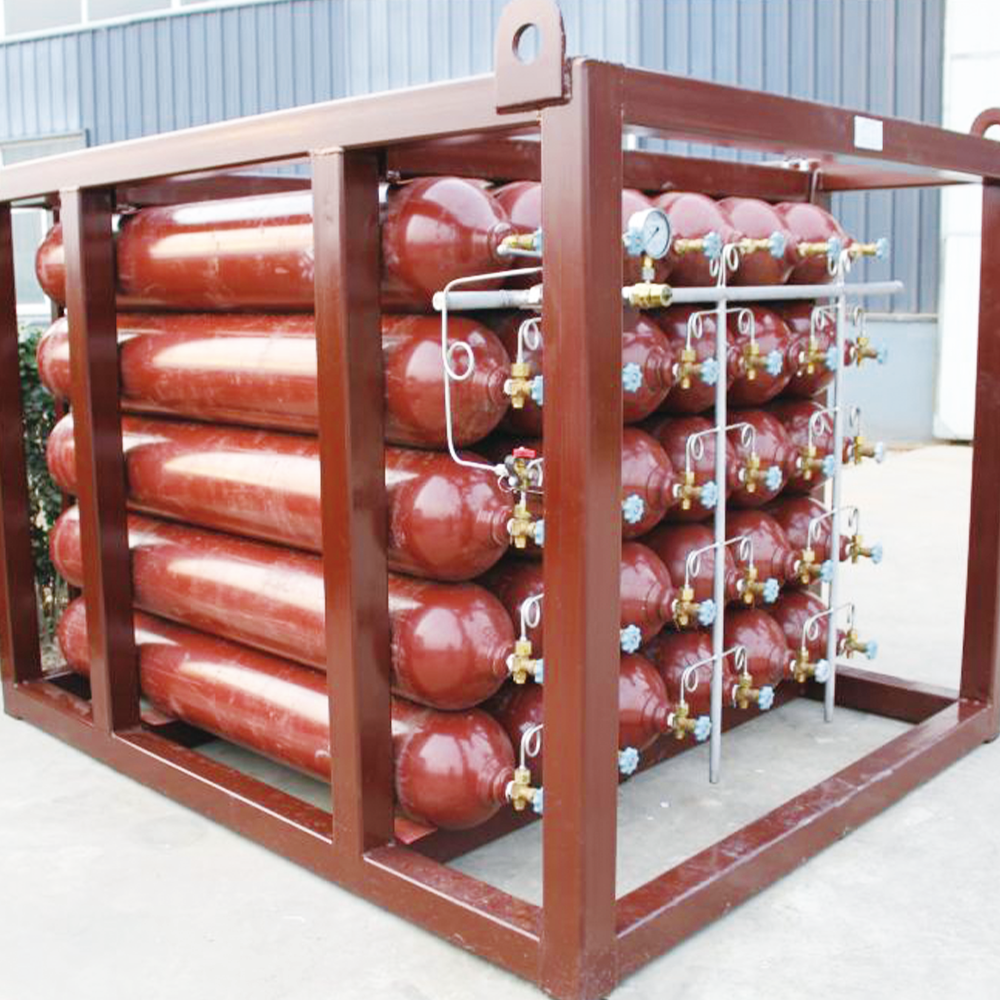

Simply put, a cylinder bundle is a standard-sized frame that holds a bunch of high-pressure cylinders (10, 12, or 16 of 16 of them). You load it onto a tube trailer, haul it to your site, and offload the gas directly. It's basically a "mobile gas warehouse" on wheels.

Whether you choose a 20ft or a 40ft directly affects:

· Transport costs (how much gas you can carry per trip)

· Site layoutSite layout** (how big a truck your unloading area needs to accommodate)

· Operational efficiency (how often you need to swap trailers)

So how do you choose between 20ft and 40ft?

Let's look at the table — it makes everything clear.

Quick summary:

· 20ft: Flexible, easy to move around, low site requirements. If your roads are narrow, your site is small, and your daily gas consumption isn't huge, the 20ft is more practical.

· 40ft: Carries more, higher efficiency, lower cost per trip. If your project has high gas consumption, plenty of site space, and you're running long distances every day, the 40ft is the better deal.

Before you place your order, here are a few key things to confirm.

1. Will it fit your trailer chassis?

Our cylinder bundles are designed to standard 20FT and 40FT container dimensions, so they fit standard tube trailer chassis directly. But if your truck is a bit different, we can adjust.

Customizable: Number of cylinders, cylinder diameter/length, flange standards (ANSI / GB / JIS), and total volume can all be customized to match your chassis.

2. Are the certifications in place for your target market?

If you're selling internationally, nothing is worse than having your cargo stuck at the port. Our product certification system is comprehensive, and we can match your target market:

· EU: CE/PED, TPED certification, cylinders manufactured to ISO 11120 standard

· USA: Designed and manufactured to ASME standard, meeting DOT requirementsManufactured to ASME standard, meeting DOT requirements

· Russia & CIS: EAC certification

Customizable: The certification documents, cylinder nameplate standards, safety valve brand, and set pressure can all be adjusted according to your target market.

3. How do you choose the cylinder material and pressure rating?

Our commonly used working pressures are 20MPa, 25MPa, and 30MPa. The cylinder material can be selected based on the medium (CNG, hydrogen) and the operating environment.

Customizable: Working pressure, cylinder material (steel cylinder / glass fiber wound / carbon fiber wound), number of cylinders (10 to 16 tubes), and total volume can all be flexibly configured to your needs.

Here's a quick table to show you the customization range for cylinder bundles:

In short: No matter where your project is or how challenging the roads are, we can find the right cylinder bundle solution for you.

About Us: Why do we say "everything is customizable"?

We are a company that integrates R&D, design, production, sales, and system integration.

On the technology side: We have core technologies like hydraulic-driven compression and large-volume steel-lined wound cylinders. Our product performance is on par with top international brands. The nominal working pressures of our cylinders cover 20MPa, 25MPa, and 30MPa, and we offer steel cylinders, glass fiber wound cylinders, or carbon fiber wound cylinders.

On the certification side: Our products are designed and manufactured in strict accordance with ISO and ASME international standards. We hold all the major international certifications like CE, ATEX, and EAC, so there are no issues with exports. We have supplied nearly 3,000 hydrogen tube trailers and cylinder bundles to the domestic market.

On the market side: Our products and services have been sold to more than 50 countries worldwide, covering town gasification, industrial gas supply, emergency peak-shaving, and refueling stations. We have extensive experience in all kinds of scenarios. Our customers include international gas companies like AIR LIQUIDE, Messer, Linde, and BOC.

On the service side: From a single cylinder bundle to a complete CNG storage and transportation solution, we can handle it all. Project consultation, technical selection, customized production, installation and commissioning, and lifelong maintenance — a one-stop service.

So just tell us what you need, and we'll take care of the rest.
