How Does a CNG PRMS Work?

The journey of Compressed Natural Gas (CNG) from high-pressure storage to safe end-use requires precise and reliable regulation. The CNG Pressure Regulating and Metering Skid (PRMS) is the heart of this process. Its working principle is far more than simple "pressure reduction"; it is an engineering art that integrates intelligent control, safety assurance, and precise measurement.

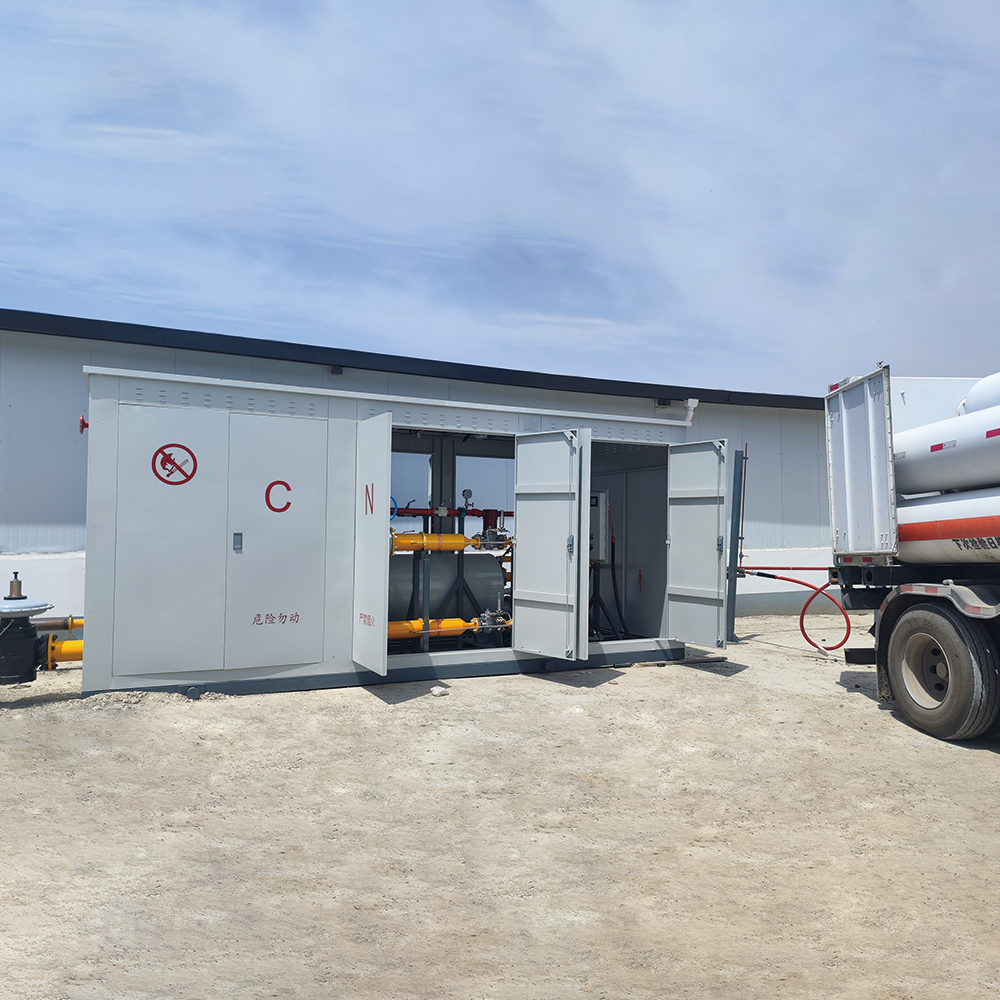

Imagine high-pressure CNG from tube trailers or storage cylinders at pressures up to 25 MPa. Such pressure cannot be used directly in industrial burners or city gate stations. The PRMS's primary task is to safely and steadily reduce this pressure to the required level, for instance, 0.2-0.4 MPa. This is not done in one step but through a carefully designed two-stage or multi-stage regulation process. The first stage reduces pressure to an intermediate level, and the second stage performs fine-tuning, ensuring extremely stable outlet pressure with an accuracy of ±5%. This staged approach prevents equipment shock, freezing, or flow instability due to excessive pressure differentials, forming the cornerstone for long-term, stable operation.

During pressure reduction, gas expands and absorbs significant heat, which can cause pipeline icing and equipment damage. Therefore, an integrated heating system (e.g., a water bath heater) is crucial. It maintains the gas temperature within a set range (e.g., outlet temperature ≥ -5°C) through heat exchange, ensuring pressure regulators and pipelines operate under optimal conditions and preventing ice blockages.

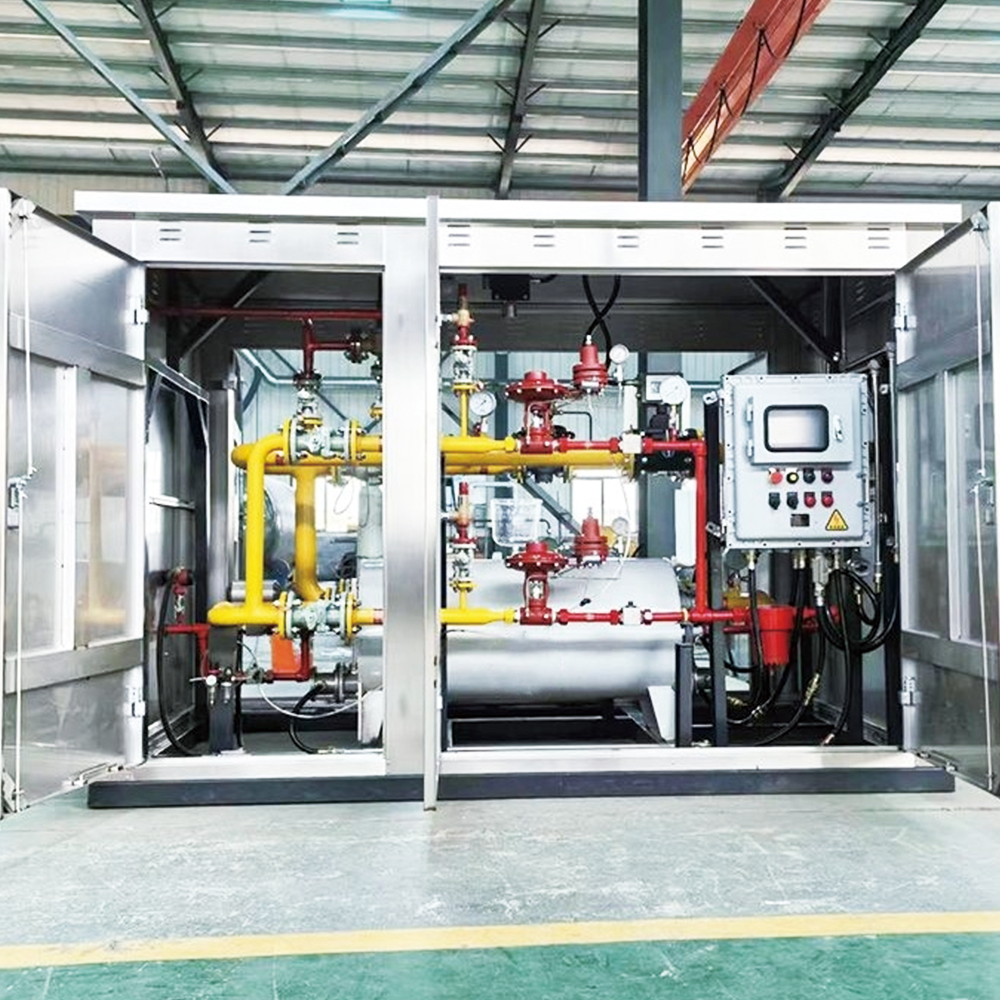

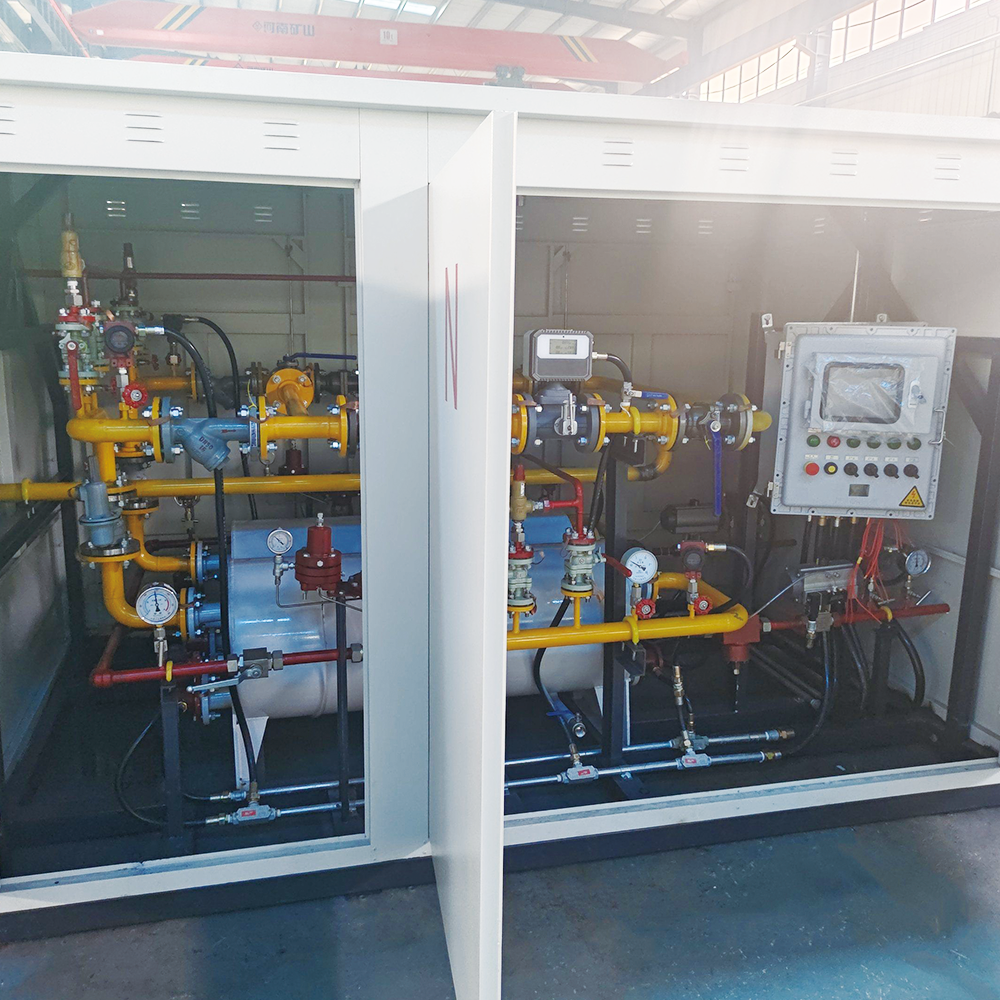

Yet, the intelligence of a PRMS goes further. It is a highly integrated "safety steward." Before entering the regulation unit, gas passes through a precision filter to remove impurities and protect downstream components. The core pressure regulator (featuring international brands like Emerson) is responsible not only for precise control but also incorporates safety shut-off and overpressure relief functions. If abnormal outlet pressure is detected, the safety shut-off valve activates immediately to block the gas supply, while the relief valve safely vents excess pressure, providing a dual safety net. All operational parameters—pressure, temperature, flow—are monitored in real-time by an intelligent control system (e.g., Siemens PLC cabinet), enabling remote data transmission and audible/visual alarms, giving operators complete visibility over the system status.

Beyond Standard: Your Personalized Energy Solution

The models you see—900 Nm³/h, 1200 Nm³/h, 3000 Nm³/h, even 5000 Nm³/h—are merely standardized examples of our capabilities. Huayan International understands that no two projects are identical. Therefore, "Full-range customization" is our core philosophy.

Flow & Pressure Customization: Is your actual demand 50 Nm³/h or 15,000 Nm³/h? Are there special requirements for inlet and outlet pressure? We can design from the ground up, ensuring system parameters perfectly match your process.

Configuration & Functional Expansion: Do you need to integrate higher-grade flow meters (for custody transfer)? Is there a requirement to add gas leak alarms to the skid? Or specific communication protocols for the data acquisition system? These can all be flexibly added as extensions to the standard configuration.

Structure & Environmental Adaptation: Will the equipment be installed in frigid Russia or a humid coastal area? We can select SS304 stainless steel for superior corrosion resistance or adjust insulation and protection ratings for different climates. The structure can employ a compact skid-mounted design to minimize footprint and suit indoor or outdoor installation.

Core Component Selection: We collaborate with top international brands like Emerson and Kimray. The most suitable pressure regulators, controllers, and other core components can be selected based on your preference and project budget.

Why Choose Huayan International's CNG PRMS?

Reliable Safety Assurance: Every PRMS undergoes rigorous leak and pressure tests before leaving the factory, ensuring 100% safety and stability. Critical parts, from emergency valves to safety valves, are treated with special processes for exceptional corrosion resistance and durability.

Excellent Precision Control: Utilizing high-performance regulators and intelligent control systems achieves precise and stable control of pressure and flow, guaranteeing the efficient and smooth operation of downstream equipment.

Broad Applicability: Suitable for multiple mediums like natural gas and LPG, with a wide temperature adaptation range (-20°C to +60°C). It can serve various applications, including city gas gate stations, industrial gas boilers, small direct-fired turbines, hotels, and residential complexes.

Easy Installation & Maintenance: The integrated skid-mounted design is rationally structured. Pre-assembled and tested at the factory, it requires only simple connection of pipelines and cables on-site, significantly reducing installation time and simplifying maintenance.

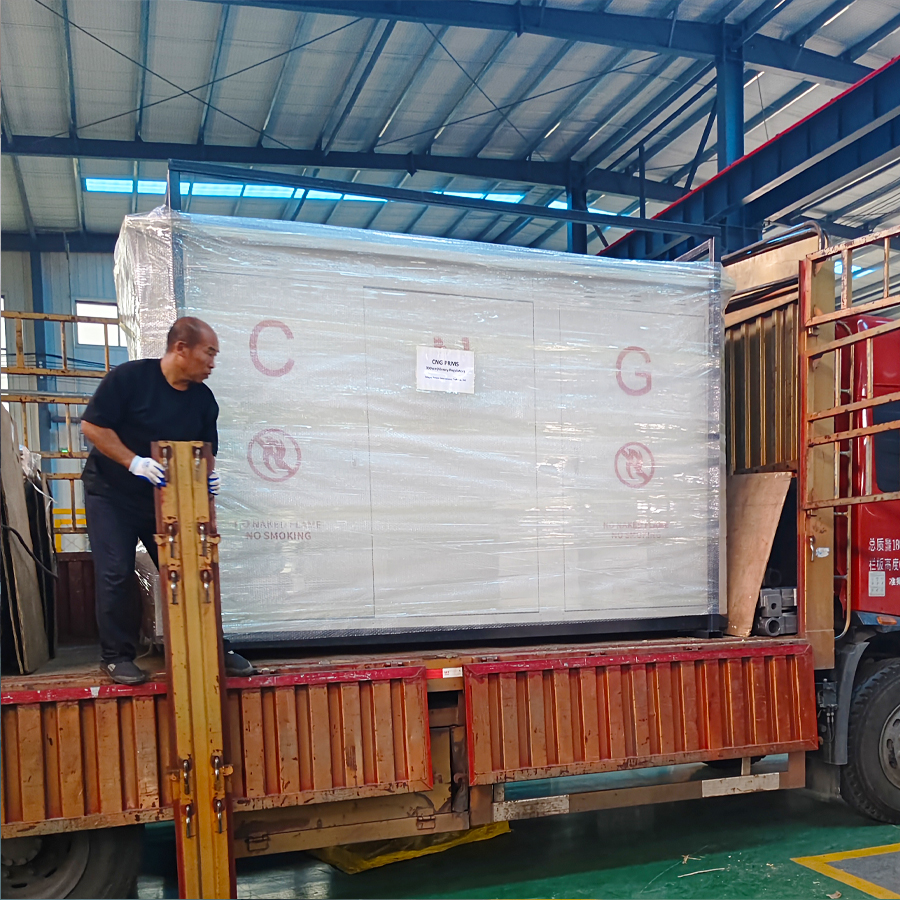

Backed by over two decades of equipment manufacturing and export experience, Huayan International boasts a professional R&D team of more than 60 experts. We are committed to transforming your unique requirements into safe, efficient, and reliable products. We provide a one-stop service from technical consultation and custom design to manufacturing and international logistics. Our products have been successfully exported to more than 30 countries and regions worldwide, including Russia, India, and Brazil.

If you are looking for a CNG solution that meets basic regulation and metering needs and seamlessly integrates into your specific project scenario, Huayan International's CNG PRMS is your ideal choice. Tell us your requirements, and let us handle the customization.
