Can Vaporizers Work Properly in Cold or Extreme Climates?

The answer is yes, but the approach must be right.

When a project is located in a high-latitude cold region, a high-altitude area, or a zone where winter temperatures plummet sharply, the most concerning question is: can the vaporizer reliably operate under low temperatures? Low temperatures can lead to reduced vaporization efficiency, excessively low outlet gas temperatures, pipe freezing, and even equipment shutdown — this not only affects gas supply but can also threaten the safety of downstream pipelines and equipment.

So, can a vaporizer work stably in severe cold? Yes. But the prerequisite is selecting the correct technical solution based on the local environment.

First, let's clarify what specifically happens to a vaporizer under low temperatures.

Reduced Vaporization Efficiency
Ambient air vaporizers rely on natural convection for heat exchange with the ambient air. The lower the temperature, the smaller the temperature difference between the air and the heat exchange tubes, weakening the driving force for heat transfer and lowering the vaporization capacity per unit of time. Below -10°C, the actual capacity of an ambient vaporizer may drop to only 50% of its rated value, or even less.

Excessively Low Outlet Gas Temperature
Even if the flow rate can be maintained, the outlet natural gas temperature could be far below 0°C. Sending such low-temperature gas directly into downstream pipes can cause valve seals to become brittle, flanged connections to leak, and potentially even lead to low-temperature brittle fracture of the pipes.

Frosting and Ice Blockage
Water vapor in the ambient air freezes on the surface of the heat exchange tubes. As the ice layer builds up, heat exchange efficiency deteriorates. In humid, cold regions, the rate of frost build-up often exceeds the defrosting rate. The equipment may need to be shut down for defrosting after just a few hours of continuous operation.

Material Performance Degradation
Extreme low temperatures pose a significant challenge to the impact toughness of metals and the elasticity of seals. For example, carbon steel can be at risk of brittle fracture below -20°C. Therefore, material selection for critical pressure-bearing components must be exceptionally careful.

How to solve this? Three proven solutions, chosen based on environmental conditions.

Solution 1: Ambient Air Vaporizer + Automatic Switching / Defrosting Management
Suitable for areas where winter temperatures are not lower than -15°C and where continuous gas supply requirements are not extremely strict.

· Design Margin: The vaporization capacity of a single unit should be determined as 1.3 to 1.5 times the peak hourly gas consumption. In cold regions, the upper limit is recommended.

· Defrosting Management: Implement an automatic switching logic. When the operating unit has run for 8–12 hours, or its outlet temperature falls below a set threshold, it automatically switches to the standby unit, allowing the frosted unit to defrost naturally.

· Recommended: Use Φ200 extra-large diameter aluminum heat exchange tubes for significantly faster defrosting.

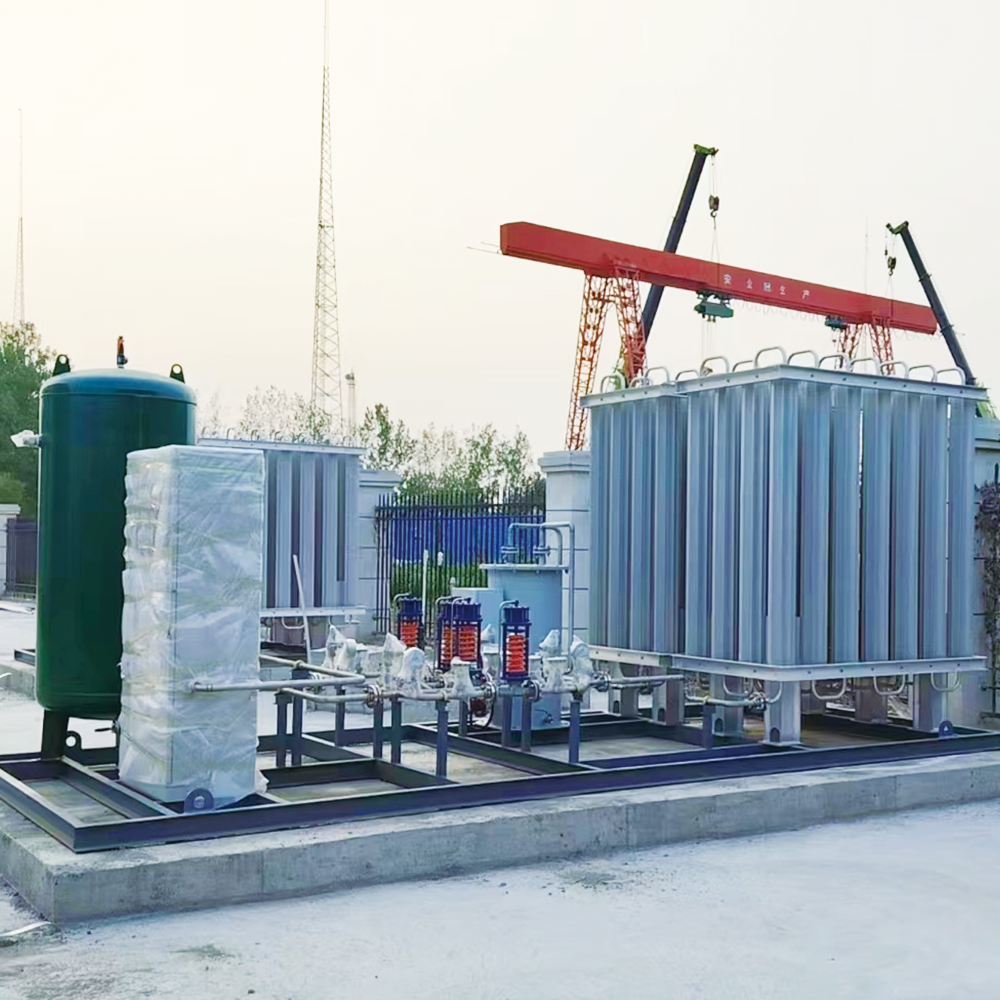

Solution 2: Ambient Air Vaporizer + Water Bath Heater (Two-Stage Series)
Suitable for areas where winter temperatures are below -15°C. Relying solely on an ambient air vaporizer often cannot guarantee a safe outlet gas temperature.

· Primary Vaporization: The ambient air vaporizer handles the main task, raising the LNG from -162°C to near ambient temperature.

· Secondary Heating: The water bath heater then heats the vaporized natural gas, ensuring the outlet temperature is not lower than 5°C (some standards require 10°C).

· Energy Flexibility: When the ambient temperature is high and the outlet from the ambient vaporizer meets the target, the water bath heater can be turned off to save energy.

Solution 3: Remote Heated Vaporizer
Suitable for extremely cold regions perennially below -30°C, or for projects with exceptionally high reliability requirements (e.g., peak-shaving stations, emergency gas supply stations).

· Principle: Uses electricity, hot water, or steam as the heat source, transferring heat to the vaporizer unit via an intermediate heat transfer medium (e.g., glycol-water solution).

· Characteristics: The heat source can be separated from the vaporizer. The heat medium circulates by force in a closed loop, completely unaffected by external wind speed or air temperature.

· Result: Stable vaporization efficiency, controllable outlet temperature, ideal for high-flow, high-reliability applications.

There is no "one-size-fits-all" configuration, only a "customized solution."
Different projects have different climates, gas consumption patterns, and budgets. We can flexibly configure the following dimensions based on your specific needs:

Three steps for selection, focusing on three core points.

1. Determine the project site's extreme minimum temperature and average annual humidity.
This is the most fundamental and important input. It is recommended to use the extreme minimum temperature over the past 20 years as the design basis, not just the "average winter temperature." Temperature and humidity directly determine the feasibility of the ambient air vaporizer solution and the required design margin.

2. Accurately calculate the peak hourly gas consumption and leave ample margin.
The core capability of a vaporizer is its "hourly vaporization capacity." Multiply the peak hourly consumption by a safety factor of 1.3 to 1.5. For cold regions, please take the upper limit of this factor.

3. Evaluate the requirements for gas supply continuity and automation.

· 24/7 Continuous Supply: Recommend configuring two or more vaporizer groups with an automatic switching mechanism.

· Short Downtimes Allowed (e.g., for defrosting): Automation investment can be reduced.

· Remote Monitoring Required: Configure temperature, pressure, flow, and leak detection instruments, with data transmitted to a central control room.

About Us

We are a full-industry-chain enterprise integrating R&D, design, production, sales, and system integration. Our core business covers the entire lifecycle of LNG vaporizer stations, CNG refueling stations, and industrial gas storage and transportation equipment.

Technical Accumulation: With years of experience in gas transmission, distribution, and gas vaporization, our products include city gas gate stations, ambient air vaporizers, water bath heaters, LNG vaporizer stations, L-CNG refueling stations, and LPG propane vaporization equipment. We have mature application cases across different climatic conditions, both in the south and the north.

Qualification System: Our designs strictly follow relevant domestic standards as well as international codes like ASME and CE. Key pressure-bearing components are designed and accepted according to pressure vessel codes.

Market Coverage: Our products are used in numerous domestic and international town gas projects, industrial gas supply systems, and peak-shaving stations, accumulating extensive operating data and engineering experience from extreme environments.

Service Capability: We offer full-process service, from preliminary technical consultation and scheme evaluation, to customized equipment production, on-site installation and commissioning, and finally, after-sales technical support and spare parts supply. Our technical team can conduct a systematic evaluation based on your region's climate, gas consumption needs, and regulatory requirements, and output the most suitable vaporizer configuration solution.

Next Step: Let Us Help You Customize. You are welcome to provide the following information, and our technical team will conduct a systematic evaluation to deliver the most suitable vaporizer solution for your project:

· Project location and extreme minimum temperature

· Peak hourly gas consumption and average daily gas consumption

· Applicable medium and working pressure requirements

· Outlet temperature and gas supply continuity requirements

Contact us today to get a professional configuration recommendation for your project.
