High transportation stability: Usually a three-point support layout is adopted, combined with full-wheel hydraulic control, which can ensure that the load of goods is uniform, safe and stable during transportation. The hydraulic suspension system can adjust the height of the cargo platform so that the goods can be transported smoothly under different road conditions, and the body can also be adjusted to maintain a balanced position when driving up and down ramps and on slopes.
Flexible steering: The steering system is advanced and can realize automatic steering and controlled steering. For example, steering is driven by the tractor or steering is performed by manipulating the steering control valve handle on the front and rear control boxes. Some are also equipped with hydraulic power steering devices, which can reduce the turning radius and turn flexibly in complex road conditions.

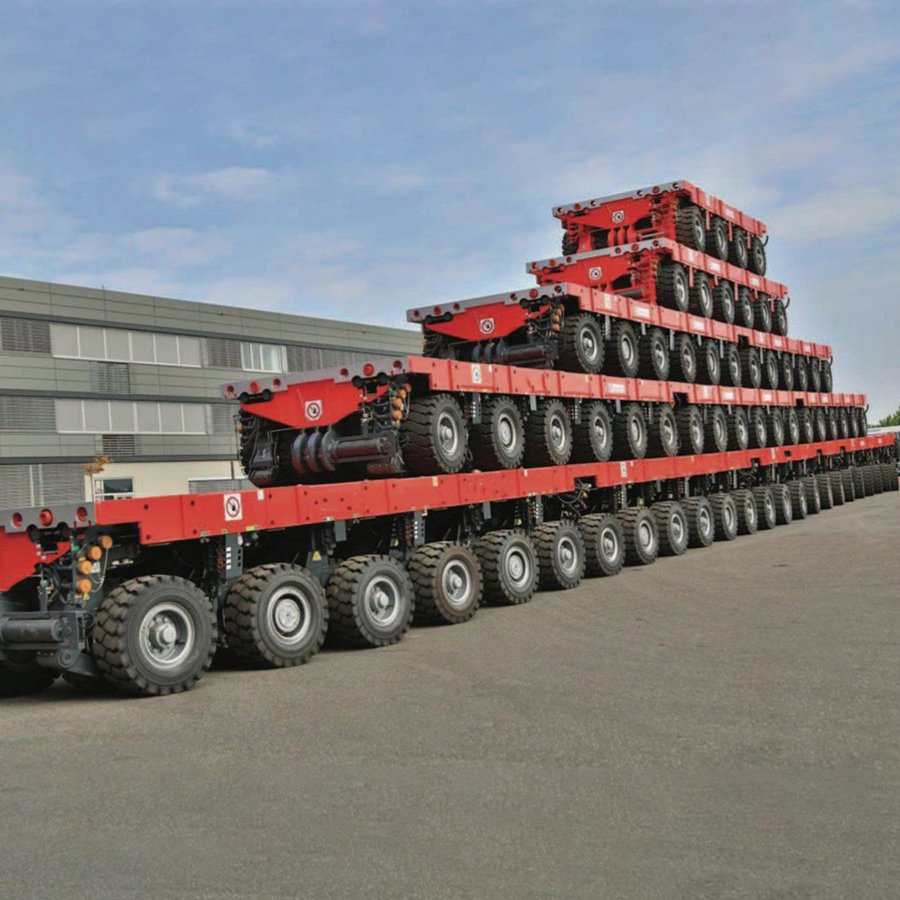

Good combination: It adopts modular design and has the functions of longitudinal and transverse splicing. It can be freely combined according to the size and weight of the goods. It is easy to splice and can quickly form different axis and bearing surface sizes to adapt to workpieces of different sizes and weights.

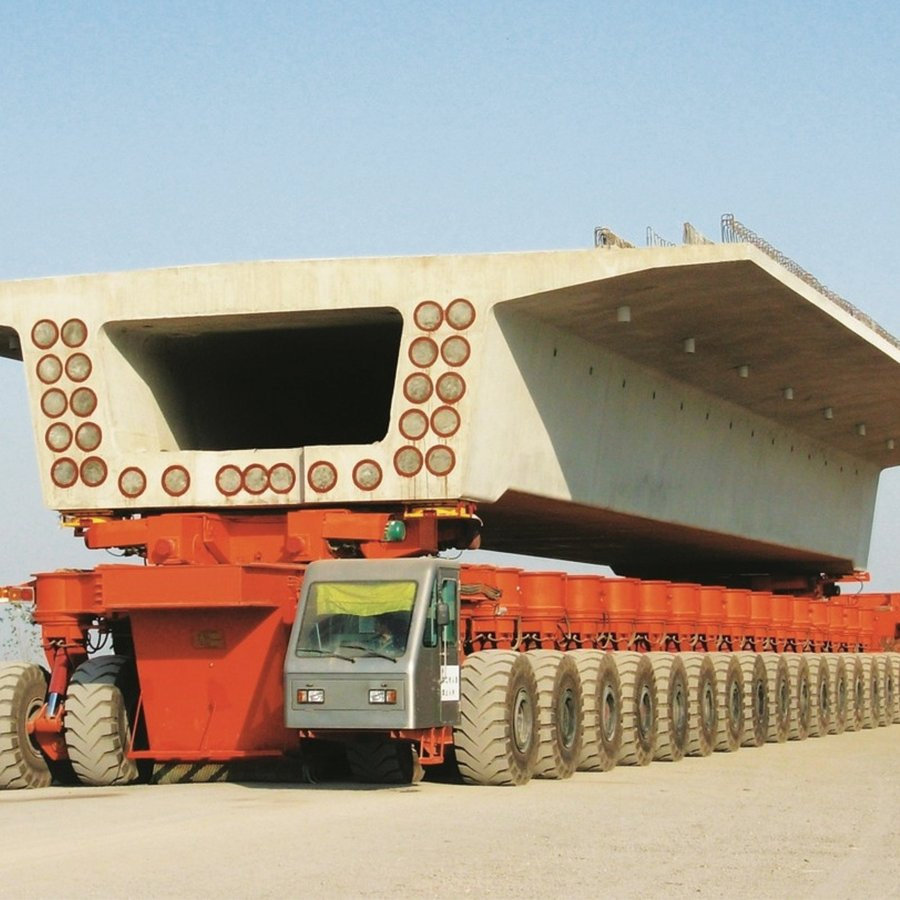

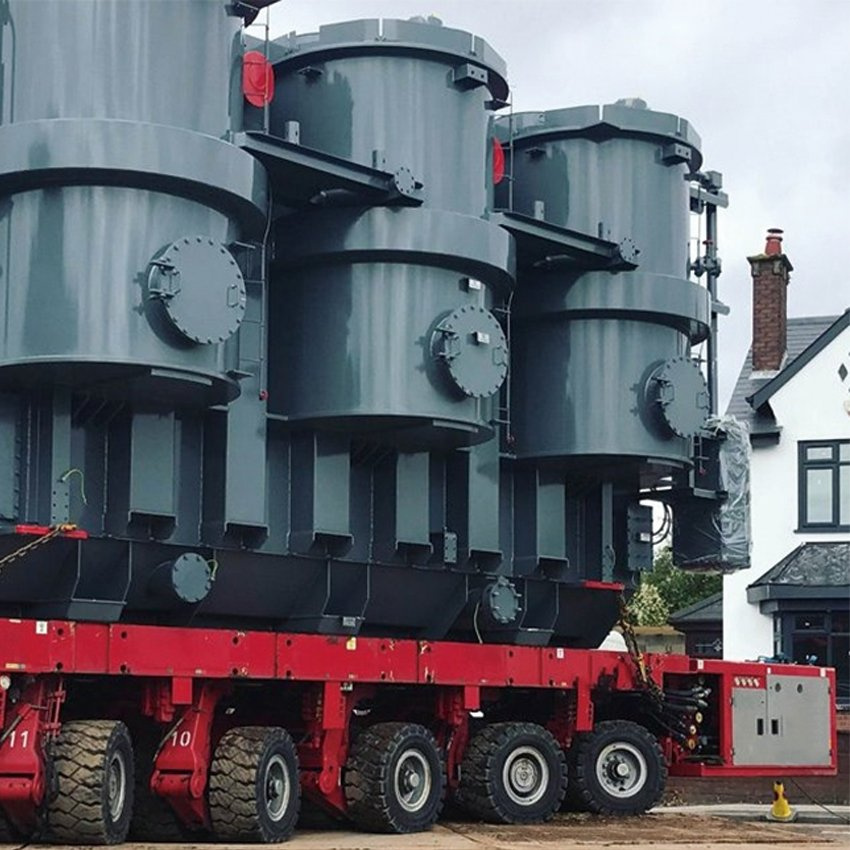

Wide adaptability: It is suitable for medium and long-distance road transportation of overweight or non-detachable oversized objects in multiple industries such as power construction, mining, metallurgy, chemical industry, hydropower and thermal power equipment manufacturing.
All products can be customized as required please contact us
Exercise speed | 5km/h | 3km/h | 1km/h | 0.5km/h |
Maximum payload | 186,000kg | 216,000kg | 246,000kg | 276,000kg |
Equipment self weight (approximate value) |
24,000kg |
24,000kg |
24,000kg |
24,000kg |
Allowable total weight | 210,000kg | 240,000kg | 270,000kg | 300,000kg |
Allowable axle load | 35,000kg | 40,000kg | 45,000kg | 50,000kg |
Load platform area, length x width | About 8,400mm×2,430mm | |||
Load platform height (lowest position) |
About1, 150mm | |||
Load platform height (driving position) |
About 1,500mm | |||
Lift/compensate stroke | About700mm ( ±350mm) | |||
Number of wheel frames (all) | 12 sets | |||
Number of wheel frames (drive) | 4 sets | |||
Number of wheel frames (braking) | 6 sets | |||
Number of wheel frames (driven) | 2 sets | |||
Traction force at 400 bar | About 4×70 Kn=280Kn | |||
braking force | About 6×55Kn=330Kn | |||
Maximum allowable driving speed | About 11.5km/h | |||
tire model | 24×355/65-15PR24 ，Conti IC40 | |||
steering angle | Gear and rack device，About+130°/ -100° | |||
Operating Temperature | About-40℃~+50℃ | |||
Platform allowable bending moment | About+7785kNm/-6262kNm | |||
N | Equipment name | Brand/Manufacturer | Factory |
1. | Engine | Deutz | Germany |
2. | Cooler | AKG | China |
3. | Drive Variable Pump | Rexroth | Germany |
4. | Drive Variable Motor | Rexroth | Germany |
5. | Reducer / Gearbox | Rexroth | Germany |
6. | Lifting & Steering Hydraulic Pump | Rexroth | Germany |
7. | Remote Controller | AUTEC | Italy |
8. | Display | PALFIN | China |
9. | Controller | TTC | Germany |
10. | Steering Valve Group | HAWE | Germany |
11 | Tube Fittings | Eaton | USA |
12 | Lifting Cylinder & Seals | with PARK Seals | Domestic (China) |
13 | Insertion Cylinder & Seals (with PARK Seals) | with PARK Seals | Domestic (China) |
14 | Coupling | KTR | Germany |
15 | Slew Bearing / Slewing Ring | Luoyang Bearing (LYC) | China |
16 | Explosion-Proof Valve | HAIT | China |
17 | Quick Coupler | Stucchi | Germany |
18 | Hydraulic Hose | Eaton | USA |
19 | Electrical Connectors | WEIEN | China |
20 | Pneumatic Components | RUILI | China |
Dimensions (L x W x H) | 2950 × 2310 × 1030 mm |
Joint Length | 2800 mm |
Weight | 4.5 ton |
Diesel Engine | Deutz BF6M2012C |
Emission Standards | Euro 3 |
Number of Cylinders/Type/Displacement | 6/inline/6.06L |
Power | 160 kW @ 2300 rpm |
Torque | 743 Nm @ 1400 rpm |
Fuel Consumption | 230g/kWh |
Cooling | Water cooking |
Starter Voltage/Power | 24 V / 7.5 kW |
Generator Voltage/Power | 24 V / 55A |
Battery Voltage | 2 × 12 V, 120 Ah / 24 V |
Fuel Tank | 170 L Filling volume |
ABOUT US
Jiangsu Huayan International Trade Co., Ltd. was established in 2005 and is headquartered in Xuzhou, Jiangsu Province, China. It is a leading integrated transportation solution provider integrating R&D, production and trade. Covering an area of 222,000 square meters, the company uses advanced automation equipment, a professional R&D team and cutting-edge manufacturing technology to provide high-quality special transportation equipment, including gas equipment (hydraulic modular trailers,gas pipeline slide container trailers, powder/liquid tankers and a full range of semi-trailers(heavy-duty low-bed,) for energy, hazardous chemical transportation and engineering logistics. Its core hydraulic system is compatible with international brands such as Goldhofer and Scheuerle, ensuring compliance with global technical standards. The company has more than 20 years of export experience and serves more than 30 countries including Peru, India, Russia and Brazil. The company has passed ISO9001, ASME, ADR certification, has a R&D team of more than 60 people (including 8 senior engineers), and has achieved a 100% order delivery rate through ERP+MES digital management. The company is committed to sustainable development, adhering to the values of innovation, quality, expertise and mutual benefit, and providing safe, efficient and environmentally friendly transportation solutions worldwide.
Patent certificate
Our company's products have passed IS09001, 14001 and CE certificates, and we can alsoprovide relevant certificates that meet customer national requirements.
Cooperative Brand
Our Customers
Core Technology Team
Cooperation Process
After order
Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
2. What products can you provide?
We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service.
