Product Introduction
The Heavy Equipment Low Bed Trailer is engineered for the safe and efficient transport of oversized and heavy equipment. With its multi-axle design and hydraulic removable gooseneck, this modular truck trailer offers exceptional flexibility and stability for transporting a wide range of heavy loads. Designed for durability and performance, this trailer is ideal for construction, mining, and other industrial applications.
Product Advantage
·Multi Axle Configuration: Equipped with multiple axles to provide superior load distribution, enhancing stability and safety during transport.

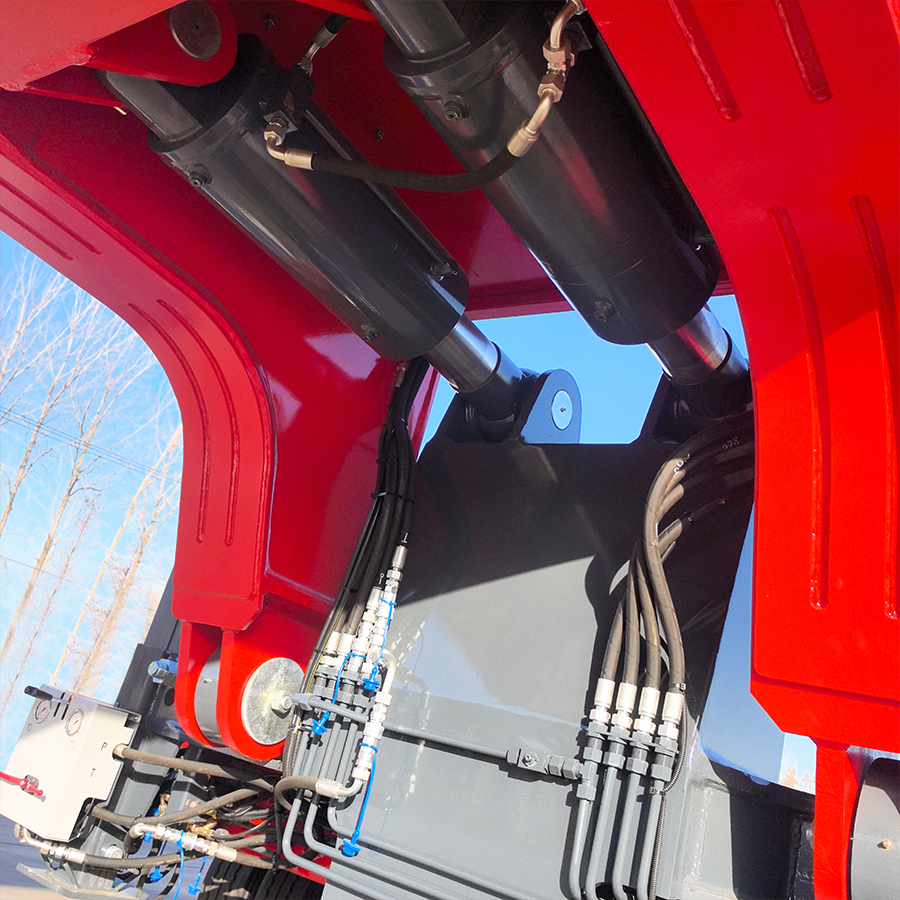

Hydraulic Removable Gooseneck: The hydraulic removable gooseneck allows for easy loading and unloading of heavy equipment, facilitating efficient operations.
Heavy Load Capacity: Designed to accommodate heavy loads, making it suitable for transporting construction machinery, mining equipment, and other oversized items.
Robust Construction: Built with high-strength steel and durable materials to withstand harsh operating conditions, ensuring long-lasting performance.
Versatile Applications: Suitable for a wide range of applications, including heavy machinery transport, construction, and industrial hauling
Enhanced Stability: The multi-axle configuration ensures better load distribution, reducing the risk of tipping during transit.
Easy Loading and Unloading: The hydraulic removable gooseneck allows for quick and efficient loading and unloading of heavy machinery.
Durable and Reliable: Constructed with high-quality materials, ensuring long-term performance and resistance to wear.
Versatile Transport Solutions: Can be configured to meet specific transport needs for a variety of heavy equipment.
Cost-Effective Solution: Offers competitive pricing for high-quality heavy equipment transport solutions.
Applications
· Heavy Machinery Transport: Ideal for transporting construction and mining equipment such as excavators, bulldozers, and cranes.
· Industrial Hauling: Suitable for transporting oversized loads in industrial applications, ensuring safe and efficient delivery.
· Construction Projects: Perfect for construction projects requiring the transport of large and heavy equipment.

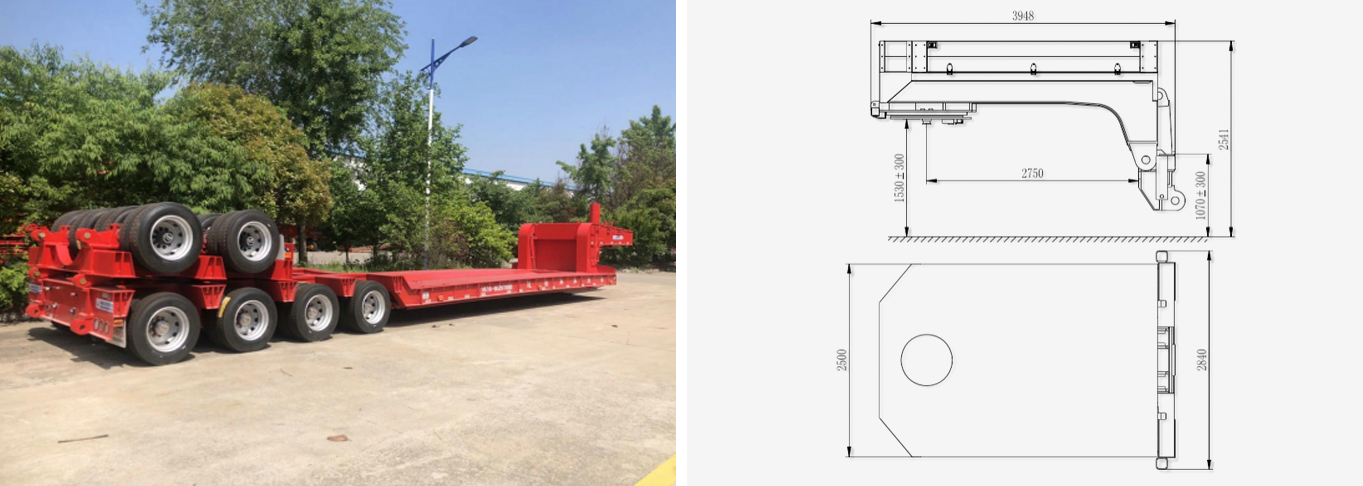

Hydraulic gooseneck (fifth wheel) load capacity (Kg) | 20,000~48,000 |
Hydraulic gooseneck rear turning radius | 2750 |
Width and height | 2500*2541±300 |
Height of traction turntable above ground | 1530 (axis height 1070) |
Steering mechanism | Wheel traction and controlled steering |
The maximum rotation angle of the tractor relative to the gooseneck | +70/-70 |
Specification of traction pin | 90#（ 88.9mm） |

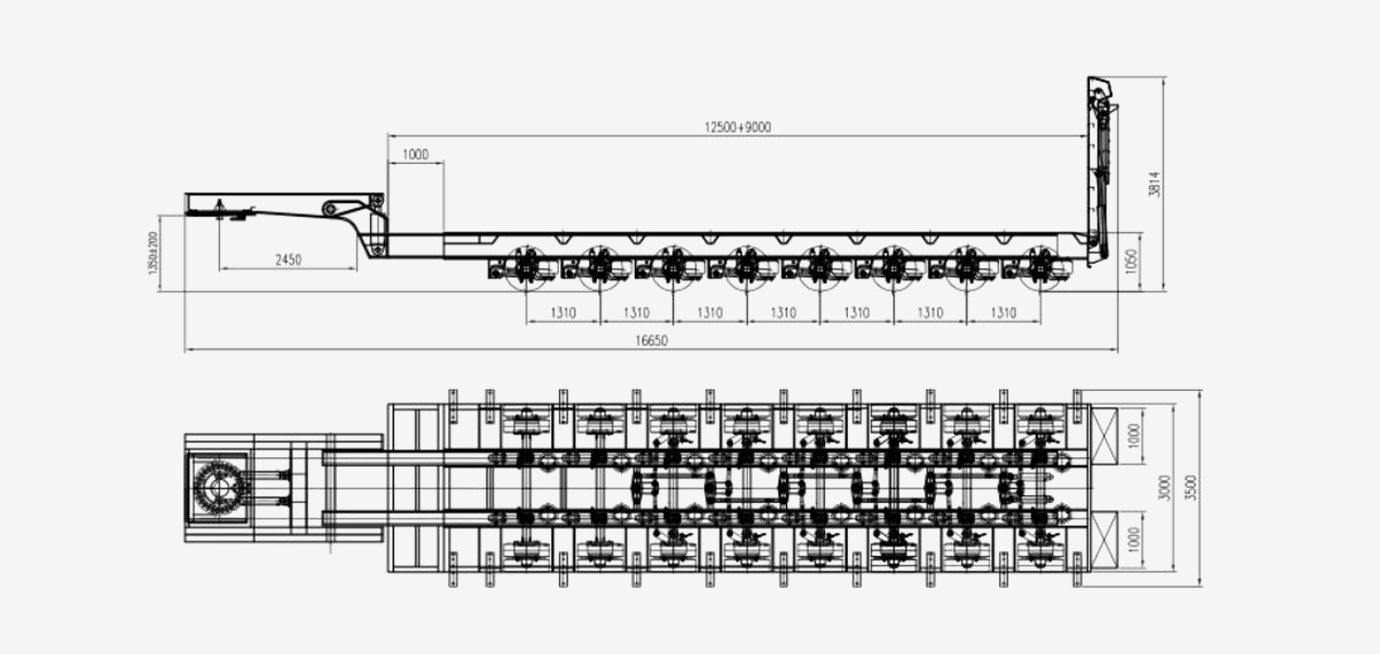

Technical Parameters
Heavy duty Flatbed Trailer Gooseneck lowbed semi trailer | ||||
Axles No. | 2 lines 4 axles | 3 lines 6 axles | 4 lines 8 axles | 5 lines 10 axles |
Pay load | 60-80tons | 80-120tons | 100-160tons | 100-200tons |
Tires | 16pcs | 24pcs | 32pcs | 40pcs |
Rims | 16pcs | 24pcs | 32pcs | 40pcs |
Size | Optional | |||
Electrical | LED light , 7 ways ,24V | |||
Painting | Sand blasting processing clean rust | |||
1 coat of anticorrosive primer | ||||
2 coats of finish urethane paint | ||||
Color as customer choice | ||||
Accessory | One tooling box with a set of standard trailer tool | |||
Usage | Is applicable for the transportation of the mechanical equipment, | |||
large objects, highway construction equipment, large tanks, | ||||
power plant equipment or machine, and all sorts of steel products. | ||||
Other Descriptions | The cargo platform is lower than others, | |||
is applicable for unsound road condition, | ||||
ensuring the stablenessof the transportation. | ||||
Remark | We can design model according to client's requirement | |||
Why Choose Us?
· Leading Manufacturer: We are a trusted manufacturer of heavy equipment transport solutions, known for our commitment to quality and customer satisfaction.
· Competitive Pricing: Our pricing structure ensures you receive excellent value for your investment in heavy equipment transport.
· Comprehensive Support: Our dedicated team is here to provide exceptional customer service and support throughout the purchasing process.
