Accurate gas flow measurement is not merely a technical box to check for pipeline operators. It stands as a critical financial and operational imperative across the entire energy sector. Precision directly protects revenue streams and ensures overall system integrity. Measurement uncertainty introduces severe financial risks within pipeline networks, utility grids, and industrial plants. Even minor calculation errors can cause massive revenue losses over time. These inaccuracies also expose operators to significant safety and compliance vulnerabilities.
This article breaks down the complex technical anatomy of a modern Gas Metering Station. We will explore the application requirements and precise engineering criteria necessary for specifying these critical facilities. You will learn exactly how to evaluate and select the right systems to safeguard your pipeline operations.
Custody transfer precision is paramount: Even a 0.1% measurement error can result in massive financial discrepancies; purpose-built stations mitigate this risk.
Systems over components: Modern natural gas metering stations rely on tightly integrated skids, combining primary meters, gas chromatographs, and flow computers.
Skid-mounted vs. Custom: Pre-engineered, skid-mounted systems are increasingly preferred for reducing onsite installation risks and accelerating deployment.
Compliance is foundational: Meeting AGA, API, and local environmental standards dictates equipment selection and station layout.
You can think of this facility as the cash register of a pipeline network. It performs tasks far more complex than basic flow monitoring. High-stakes financial and regulatory measurements happen at these precise junctures. Operators rely on this critical data to bill customers accurately and track massive energy inventories. Basic monitoring simply tells you gas is moving. High-stakes measurement tells you exactly how much energy changes hands down to the decimal.
Every reliable station performs a trifecta of vital operations. First, they measure precise gas volumes passing through the transmission line. Second, they analyze gas quality to determine the specific calorific value or BTU. Third, they regulate pressure to match the specific requirements of downstream pipelines. These three core functions must work together seamlessly to ensure a safe infrastructure environment.
Inaccuracy carries exceptionally heavy business risks. Unaccounted-for gas (UAG) creates massive financial black holes for utility companies. A measurement drift of just half a percent translates to thousands of lost dollars daily on high-volume lines. Precision engineering directly protects your operational revenue margins. It also ensures strict integrity across the entire distribution grid. Operators simply cannot afford blind spots in their volumetric data.
System reliability depends heavily on tight integration. High-end components will fail quickly if they cannot communicate perfectly. We must view these facilities as cohesive, synchronized data networks. Individual part specifications certainly matter, but system synergy matters significantly more.
We rely on several primary meter designs across the industry. Each serves a distinct operational purpose based on fluid dynamics. Let us compare the most common options using an evaluation lens.
Meter Type | Measurement Method | Ideal Use Case | Primary Advantage |
|---|---|---|---|
Ultrasonic | Acoustic transit time | High-volume transmission lines | Zero pressure drop; high turndown ratio |
Coriolis | Tube oscillation (Mass) | Varying gas compositions | Direct mass flow measurement |
Turbine | Mechanical rotor speed | Steady, clean gas flow | Proven, highly repeatable accuracy |
Ultrasonic meters handle high-volume applications perfectly. They create zero physical pressure drop in the pipeline itself. Coriolis meters excel when gas compositions change rapidly or unpredictably. They measure actual mass flow directly rather than just volume. Turbine meters offer proven historical reliability for steady flow conditions. You must map your specific meter choice directly to your desired operational outcome.
Volume alone does not determine actual gas value. You bill energy customers based on the delivered energy content. Real-time gas composition analysis is absolutely mandatory for fairness and compliance. Gas chromatographs measure specific hydrocarbon mixtures continuously. They calculate the precise BTU value of the flowing gas stream. This exact energy data ensures perfectly accurate financial billing.
Meters and analyzers generate raw electrical signals. Flow computers process this complex data instantly at the edge. They gather inputs from flow meters, pressure transmitters, and temperature sensors simultaneously. These powerful computers apply complex algorithms to calculate standardized volumes. SCADA integration then pushes this encrypted data directly to central control rooms.
You must prioritize audit-trail reliability at this specific point. Operators face intense regulatory scrutiny from government bodies. Strong cybersecurity protocols must protect all data transmission from external threats. A compromised flow computer immediately jeopardizes the entire financial transaction boundary.
Moving gas long distances requires exceptionally high pressures. Local distribution networks naturally require much lower pressures. Stations integrate heavy-duty pressure control valves to manage this transition safely. Overpressure protection systems heavily safeguard all downstream equipment. Slam-shut valves trigger instantly during dangerous pressure spikes. This tight integration prevents catastrophic pipeline failures and local leaks.
Operators deploy these specialized facilities across various network points. Each application demands highly unique engineering solutions. We categorize them based on their primary operational goals within the energy grid.
A custody transfer point marks a strict financial boundary. Absolute ownership of the gas changes hands at this exact location. These massive transactions occur between producers, transmission operators, and local distribution companies. Extremely tight contractual agreements govern the required measurement accuracy. These specific stations require the highest available tier of instrumentation. Even minor errors here trigger severe, multi-million dollar financial disputes.
Municipalities receive natural gas directly through city gate stations. These critical facilities face a highly complex dual requirement. They must accurately measure exceptionally high gas volumes entering the city. Simultaneously, they execute severe pressure step-downs for residential safety. Transmission pressures often exceed 800 PSI upon arrival. Local distribution lines usually require less than 60 PSI. A natural gas metering station at a city gate must handle this violent pressure drop quietly and safely.
Heavy industries consume massive quantities of natural gas daily. Gas-fired power plants rely on continuous, highly controlled fuel supplies. Stations here actively track plant efficiency and precise combustion metrics. They provide essential, granular data for environmental emissions reporting. Furthermore, these stations protect highly expensive gas turbines. They ensure the fuel arrives at the exact required pressure, temperature, and cleanliness.
Operators generally choose between two distinct construction methods. You can assemble everything on-site, or buy a pre-packaged system. The choice impacts your project timeline and overall budget significantly.

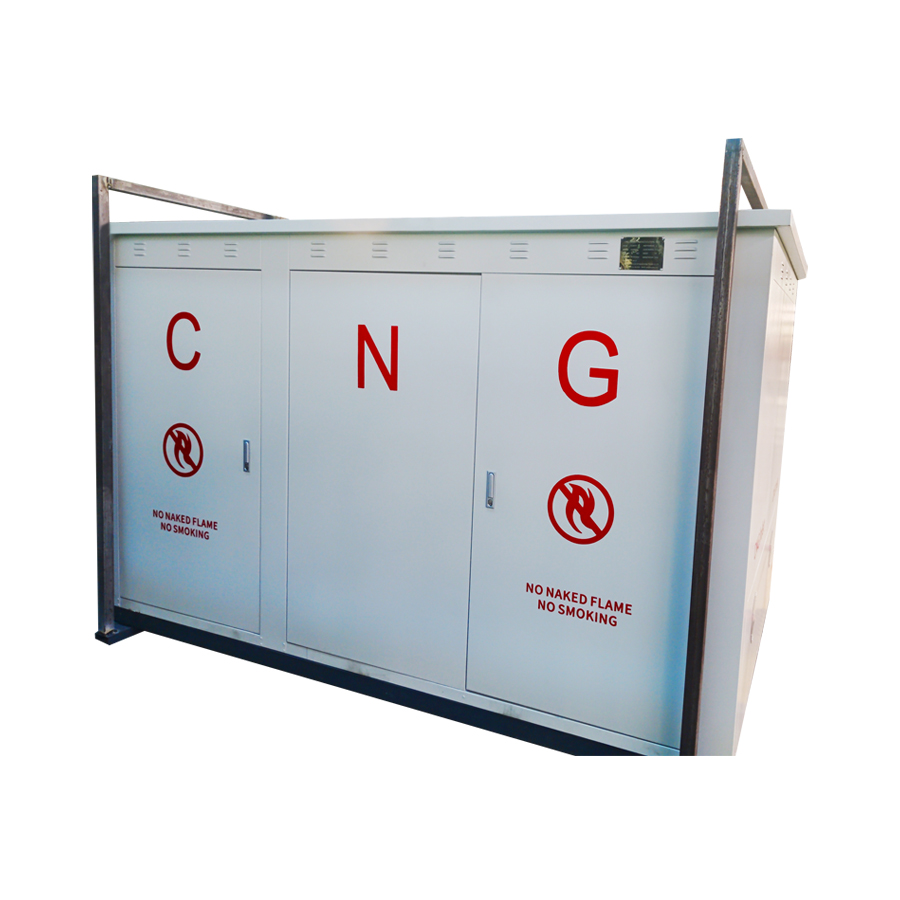

Pre-engineered, skid-mounted systems currently dominate modern infrastructure installations. Manufacturers build and assemble the entire system inside a controlled factory setting. They perform rigorous factory acceptance testing before shipping anything. This specific approach offers single-vendor responsibility for the entire functional package.
Skids feature a heavily reduced physical footprint on your site. They arrive completely ready for immediate pipeline connection. This drastically accelerates commissioning and removes costly weather-related delays. The business outcome remains exceptionally clear. You face a much lower overall project risk. You also benefit from highly predictable capital expenditures.
Sometimes, standard pre-packaged skids cannot meet unusual project demands. Custom site construction becomes strictly necessary under specific field conditions. Ultra-large transmission lines often exceed standard highway transport dimensions. Highly constrained legacy sites might require highly creative pipe routing. Phased capacity expansions also benefit greatly from flexible, stick-built approaches.
Use this brief checklist when choosing your preferred construction approach:
Analyze your timeline constraints: Skids deploy much faster and avoid weather delays.
Evaluate local labor availability: Stick-built requires highly specialized, local union welders.
Assess site accessibility: Large skids require heavy transport clearance and large crane pads.
Review testing requirements: Factory testing reduces frustrating onsite troubleshooting.
Regulatory compliance dictates every single aspect of station design. You cannot compromise on these strict engineering baselines. Ignorance of local or international standards invites steep regulatory penalties and shutdowns.
Several non-negotiable standards govern this entire industry globally.
AGA Reports clearly define calculation methods for various meter types.
API MPMS chapters establish incredibly strict measurement protocols.
ISO standards dictate broad global quality and testing frameworks.
These published documents form the solid legal foundation for all financial transactions. Engineers must design every pipe run according to these frameworks.
Regulators heavily scrutinize emissions originating from natural gas facilities. Stations must often incorporate continuous emissions monitoring systems today. Engineers heavily prioritize fugitive emission reduction across all valves and fittings. Zero-bleed pneumatic controllers actively replace older, venting equipment designs.
Noise attenuation represents another critical environmental factor. Massive pressure drops generate intense acoustic vibration. Stations located near residential areas require highly specialized noise reduction. Engineers deploy whisper-trim valves and heavy acoustic insulation to maintain community goodwill.
Safety systems must operate flawlessly during critical emergencies. Emergency shutdown (ESD) systems provide immediate, automated flow isolation. Double block and bleed valves ensure completely safe maintenance access. Operators regularly install redundant measurement runs. This allows continuous operational flow when one meter requires mandatory calibration. Overall system availability must remain near 100 percent.
Choosing the right engineering partner heavily determines your project's success. Avoid vendors merely selling isolated hardware parts. Look for true, experienced system integrators.
Evaluate their proven ability to deliver complete end-to-end solutions. They should perform internal fluid dynamics modeling for your project. This proves their custom piping designs will perform exactly as expected. They must also handle complete electrical wiring and SCADA integration internally.
Never accept uncalibrated systems for high-stakes applications. Emphasize the absolute necessity of certified flow calibration. The integrator must conduct rigorous Factory Acceptance Testing (FAT). They should test every single logic sequence before the equipment leaves their shop.
Scrutinize their promised post-installation services very closely. Ask them about their recommended maintenance frequency. Ensure they provide regular, secure software updates for all flow computers. Verify their local availability of critical replacement parts. A station sitting offline waiting for parts costs you heavily.
Start your procurement process highly methodically. We highly recommend initiating a front-end engineering design (FEED) study. Alternatively, request a thorough site-specific measurement audit. These steps clarify your exact technical needs before any capital is officially committed.
A Gas Metering Station operates as a highly engineered system where absolute accuracy dictates both profitability and safety.
Treat smart system integration as your true market differentiator; strictly avoid treating measurement components as commoditized, interchangeable hardware.
Prioritize pre-packaged, skid-mounted designs to heavily accelerate deployment timelines and sharply reduce on-site construction risks.
Rigorously apply established industry standards from AGA and API to ensure bulletproof regulatory compliance and financial auditability.
Do not leave your infrastructure measurement to chance. Contact a qualified engineering specialist today to review your specific custody transfer requirements. They can professionally assess an aging regulation station to uncover hidden measurement losses and improve your bottom line.
A: A metering station primarily measures the exact volume and energy quality of gas passing through a pipeline. A regulating station actively reduces and safely controls gas pressure. While technically distinct in purpose, operators frequently combine both critical functions into single Measurement and Regulation (M&R) stations to maximize overall infrastructure efficiency.
A: High-stakes financial transactions demand extreme precision. Standard uncertainty thresholds typically range from ±0.1% to ±0.5%. The exact requirement depends heavily on local regulatory frameworks and specific contractual agreements between the buying and selling parties. Purpose-built, highly calibrated instrumentation remains essential to maintain these incredibly tight tolerances.
A: Maintenance expectations vary significantly based on equipment types and daily flow volumes. Generally, operators calibrate primary flow meters annually. Gas analyzers often require monthly or even weekly verification. Strict contract stipulations or local regulatory mandates ultimately dictate your mandatory calibration schedule. Always refer to manufacturer guidelines for baseline recommendations.
