High-pressure natural gas transmission lines operate at hundreds of PSI. They move massive energy volumes across long distances efficiently. However, typical municipal distribution networks require strict low-pressure environments. End-user infrastructure cannot survive extreme force. A Gas Pressure Regulation Station serves as the critical intermediary here. It bridges this dangerous gap dynamically. The system reduces pressure seamlessly. It filters pipeline impurities and protects downstream networks from catastrophic overpressurization. For utility engineers and infrastructure planners, understanding these mechanics is absolutely vital. You must grasp safety redundancy standards perfectly. CFR Part 192 compliance remains a legal necessity. Recognizing component topologies helps you specify a highly reliable system. This ensures operators maintain the Maximum Allowable Operating Pressure (MAOP) consistently. Furthermore, careful design helps you avoid costly winter peak failures. Read on to discover how these sophisticated engineered environments keep our urban energy grids safe.
Dynamic Flow Control: Regulation stations rely on a mechanical balance of diaphragms, springs, and pressure sensors to lower transmission pressures (200-300+ psi) to safe distribution thresholds (typically under 60 psi).
Technology Topologies: Selection generally comes down to spring-loaded (direct-operated) regulators for simplicity versus pilot-operated regulators for high-accuracy, high-flow demands.
Built-in Redundancy: Compliance with stringent safety standards dictates the use of series configurations, monitor regulators, and relief valves to prevent exceeding MAOP.
Systemic Engineering: Modern regulating skids must account for the Joule-Thomson effect (gas cooling during expansion), requiring integrated heating and filtration.
Gas must travel vast distances at extreme pressures. This ensures efficient cross-country transport. Yet, it must reach city mains and service laterals at safe levels. Typical household appliances operate safely under 0.25 psi. Conversely, high-pressure transmission pipelines operate well over 300 psi. We face a significant physics problem.

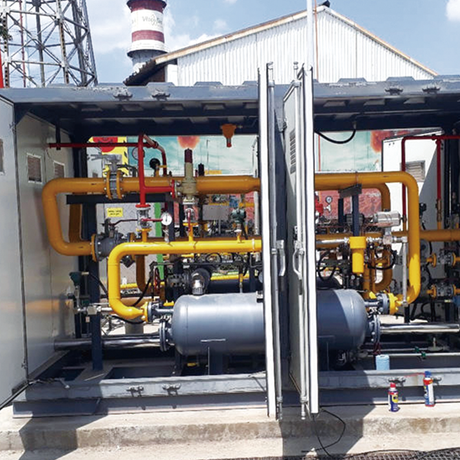

A gas regulator station perfectly bridges this divide. It sits at critical junctures in the well-to-burner supply chain. City Gate stations receive gas directly from interstate transmission pipelines. They hand this gas off to municipal distribution networks. This physical handoff requires immense mechanical precision.
The station automatically adjusts its valve openings continuously. It dynamically matches varying downstream demand. When residents turn on furnaces during winter storms, flow demand spikes exponentially. The station opens wider to maintain volume. Simultaneously, it strictly limits the output pressure. It functions as the ultimate system throttle. It balances supply and demand in real-time without human intervention.
Material constraints dictate these precise step-down stages. Typical plastic distribution piping cannot handle extreme forces safely. High-density yellow plastic pipe generally fails above 60 psi. You must use high-strength steel upstream. Downstream of the station, operators can safely transition to cost-effective plastic pipes. We call this absolute safety threshold the Maximum Allowable Operating Pressure (MAOP). Exceeding MAOP invites pipe rupture and extreme hazard. Therefore, the station physically guarantees the network's structural integrity.
To understand how a gas pressure control station functions, we must look inside the casing. The operation relies on a delicate mechanical balance. We call this the core triad of regulation. Every unit uses these three vital elements.
The Restricting Element (Valve/Plug): This physical barrier directly controls gas flow. It opens or closes the orifice passage. It physically allows more or less gas through the pipe.
The Sensing Element (Diaphragm): This flexible membrane responds instantly to downstream pressure changes. It measures the output force continuously. It moves up or down based on system demand.
The Loading Element (Spring or Pilot Gas): This component applies a precise counter-force against the diaphragm. You adjust this element to establish your desired set pressure.
When downstream pressure drops, the spring pushes the diaphragm down. This opens the valve wider. When pressure rises, it pushes the diaphragm up. The valve then restricts flow. This elegant dance happens instantly.
However, a modern station includes critical auxiliary conditioning components. It operates as a complete ecosystem.
Filtration and Scrubbers: Pipelines carry dirt, welding scale, and debris. Scrubbers remove these dangerous impurities. They prevent microscopic damage to the delicate internal regulator seats.
Odorization: Natural gas lacks any natural smell. Stations inject a chemical called mercaptan into the gas stream. This provides the distinct "rotten egg" odor. It ensures rapid leak detection before gas enters populated municipal lines. Operators utilize precision metering pumps to inject exact chemical ratios based on real-time gas flow data.
Heating Units: Rapidly dropping gas pressure causes a severe temperature drop. We know this thermodynamic principle as the Joule-Thomson effect. Without line heaters, ambient moisture freezes instantly. Internal hydrate formation can quickly block the entire regulating system.
Best Practices: Always install dual filtration paths. If one filter clogs during a winter peak, you can seamlessly switch flows without shutting down the station.
Common Mistakes: Ignoring the Joule-Thomson effect. A pressure drop of 100 psi reduces gas temperature by roughly 7 degrees Fahrenheit. Failing to heat the gas damages downstream equipment severely.
Engineers evaluate two primary mechanical approaches for pressure reduction. Both offer distinct operational profiles. You must carefully match the technology to your specific demand curve.
Spring-Loaded Regulators
These units utilize a direct-operated mechanism. The downstream gas pressure directly opposes a mechanical spring. They feature fewer internal components. They cost significantly less to procure and maintain over time.
Their simplicity ensures a rapid response to sudden load changes. Manufacturers design them to "fail open" or "fail shut" depending on specific safety priorities. However, spring-loaded units suffer from a phenomenon called "droop." They lose accuracy at higher flow capacities. The pressure drops as demand increases. You should deploy them for predictable loads. They work best in smaller district stations.
Pilot-Operated Regulators
These systems utilize a secondary, smaller regulator. We call this the pilot. The pilot controls the loading pressure acting on the main valve's diaphragm.
They offer extraordinary accuracy. They handle significantly higher flow capacities effortlessly. They maintain incredibly tight pressure control margins without experiencing droop. Primary city gate stations heavily prefer pilot-operated designs. They manage extreme winter flow rates perfectly. The tradeoff involves higher mechanical complexity. They also require stricter, more frequent maintenance routines.
Comparison Chart: Regulator Topologies | ||
Feature | Spring-Loaded (Direct) | Pilot-Operated |
|---|---|---|
Mechanism | Direct spring opposes downstream pressure | Secondary pilot dictates loading pressure |
Equipment Complexity | Low complexity, simple maintenance | Higher complexity, advanced maintenance |
Response Time | Very fast (nearly instantaneous) | Slightly slower reaction time |
Operational Accuracy | Prone to "droop" at high flows | Extremely tight pressure control |
Best Application | Small district stations, steady loads | City Gate stations, high-capacity runs |
Safety remains the paramount objective in pipeline engineering. Accidental overpressurization destroys infrastructure. It threatens lives and property. Industry standards establish a strict compliance framework. For example, operators strictly follow CFR Part 192 regulations in the United States. Preventing gas from exceeding the network's MAOP is a non-negotiable safety absolute.
To achieve this, engineers implement redundant fail-safe configurations. We rarely rely on a single line of defense. Operators evaluate several standard redundancy architectures to protect the grid.
Active/Monitor Setups: Operators place two identical regulators in series. The primary (active) unit controls the pressure daily. The secondary (monitor) unit remains wide open. It only takes over if the primary unit fails. This guarantees continuous flow without venting gas to the atmosphere.
Series Regulation: Stations stage pressure drops across multiple units. They might drop 300 psi to 150 psi initially. The next stage drops 150 psi to 60 psi. This prevents catastrophic downstream failure if a single high-pressure component breaks.
Parallel Runs: Facilities build secondary bypass runs. If a main run requires annual maintenance, the parallel run assumes the load. This ensures continuous, uninterrupted gas flow during unexpected component failures.
Physical failsafes provide the ultimate backup layer. Relief valves act as this final defense mechanism. They vent excess gas safely to the atmosphere. Tall vent pipes disperse the gas harmlessly above ground. In extreme overpressure scenarios, automatic shut-off valves deploy. They completely sever the gas supply. They isolate the downstream grid entirely to prevent explosions.
Best Practices: Always calculate the relief valve venting capacity accurately. It must safely exceed the maximum possible flow of a failed-open primary regulator.
Common Mistakes: Failing to inspect vent pipes for bird nests or debris. Blocked vents render relief valves entirely useless during emergencies.
Infrastructure buyers face complex choices during design. Sizing and shortlisting equipment requires deep engineering insight. A well-engineered regulating skid minimizes long-term maintenance headaches.
Evaluation Dimensions
You must calculate flow capacity and turndown ratios meticulously. Winter peak load demands wildly exceed summer baselines. The equipment must operate accurately across this entire spectrum. A 100:1 turndown ratio means the valve handles maximum flows effectively while still precisely managing flows at one percent of that peak. Engineers use advanced software to plot these flow curves. They simulate severe weather events. They verify the skid handles absolute worst-case scenarios smoothly.
Next, map your exact pressure differentials. Knowing your precise inlet maximums and outlet minimums is crucial. It helps engineers select appropriate valve trims. Incorrect sizing causes severe valve cavitation. This leads to premature mechanical wear and dangerous vibrations.
Implementation Risks
Installations near residential zones face strict noise attenuation requirements. Massive pressure reduction generates intense acoustic energy. High decibel levels trigger community complaints. You might need buried station vaults. Alternatively, specify specialized noise-reducing labyrinth trims inside the valves.
You must also evaluate the environmental footprint. Above-ground installations require substantial real estate. They need heavy security fencing and crash bollards. Underground vaults save space but complicate routine maintenance access.
Procurement Strategy
Historically, operators sourced individual field-assembled components. This carried a high risk profile. Site welding, inconsistent field testing, and bad weather derailed budgets easily.
Today, forward-thinking utilities specify factory-tested, prefabricated systems. A pre-piped, pre-certified skid arrives ready to drop into place. It drastically reduces site installation time. Furthermore, factory assembly guarantees absolute compliance with strict welding and pressure vessel codes. You eliminate field errors completely.
A gas pressure regulation station represents a highly engineered, fail-safe environment. It perfectly balances volatile high-pressure supply with strict downstream safety constraints. From simple spring-loaded mechanisms to complex active/monitor setups, every component serves a protective purpose.
To maximize reliability, keep these actionable next steps in mind:
Prioritize advanced hydraulic modeling to calculate your exact capacity requirements before ordering hardware.
Carefully evaluate spring-loaded versus pilot-operated topologies against your specific seasonal load profiles.
Partner closely with integrators who deeply understand local regulatory compliance and CFR Part 192 rules.
Always account for the Joule-Thomson effect by sizing integrated heating units appropriately.
Taking these proactive engineering steps guarantees an efficient, hazard-free infrastructure network. It keeps municipal grids functioning smoothly through the harshest winter peaks.
A: A thermodynamic principle where natural gas cools significantly as its pressure is rapidly reduced, requiring line heaters to prevent system freezing.
A: Under standards like CFR Part 192, these stations typically require rigorous capacity, mechanical, and set-point testing at least once a calendar year (not exceeding 15 months).
A: High-density plastic piping used in distribution typically has a maximum operating pressure threshold around 60 psi. Transmission lines operating at 200+ psi require steel pipe up until the regulating skid safely steps the pressure down.
