High-pressure gas transmission networks demand absolute precision at every connection point. Moving volatile natural gas from national transmission lines to local distribution networks requires extreme control over pressure reduction and flow measurement. We rely on this precise control to ensure safe custody transfer and stable process safety. A PRMS System serves as the critical physical and digital boundary separating high-pressure networks from vulnerable industrial end-users. It transforms high-pressure energy into safe, measurable, and highly usable fuel. Without this vital infrastructure, downstream piping systems face catastrophic rupture risks, and utility providers suffer severe financial leakage. This comprehensive guide covers technical architectures, application-specific evaluation criteria, and site implementation realities. Engineering and procurement teams will learn how to accurately define their next project specifications, mitigate common deployment risks, and match system components to exact operational profiles.
Operational Reality: A modern PRMS system is not just mechanical piping; it requires tight integration of telemetry, gas heating, and custody-transfer-grade metering.
Evaluation Priority: System sizing must account for peak flow, minimum turndown ratios, and site-specific environmental constraints, not just nominal pressure drops.
Risk Mitigation: Pre-fabricated PRMS skids reduce site installation risks, but require rigorous upfront engineering to ensure compliance with ASME, API, and local regulatory codes.
Total Cost of Ownership: Prioritizing energy efficiency (e.g., waste heat recovery) and digital lifecycle management significantly reduces long-term OPEX.
Managing natural gas flows extends far beyond assembling basic pipework and valves. Precision at the station level directly impacts overall enterprise revenue and public safety. A highly engineered gas pressure control system prevents critical mechanical failures while maximizing resource efficiency.
Custody transfer relies entirely on absolute measurement accuracy. When natural gas changes ownership, even minor measurement deviations cause severe financial leakage over time. Gas volumes constantly fluctuate based on flowing temperature and pipeline pressure. High-grade custody transfer metering guarantees buyers and sellers exchange exact energy values. You cannot afford to lose margins because of a one percent drift in meter calibration. Upgrading to highly accurate measurement instrumentation protects your revenue stream from hidden losses.
Uncontrolled pressure surges rapidly destroy sensitive downstream equipment. You must implement robust over-pressure protection across all distribution networks. We rely on specialized active and monitor regulator configurations to maintain steady output pressures. Furthermore, SLAM shut valves act as the ultimate safety barrier. They instantly block gas flow during sudden catastrophic pressure spikes. This mechanical redundancy prevents hazardous blowouts, pipe ruptures, and potential ignition events.
Reducing high gas pressure inherently consumes thermal energy. Modern stations now actively integrate advanced energy recovery mechanisms. They minimize waste heat and optimize thermal balancing across the entire process. We observe a strong industry shift toward sustainable pressure reduction methods. Facilities face increasing mandates to lower emissions and curb wasted heat. By optimizing the station footprint, operators meet strict environmental regulations without sacrificing flow capacity.

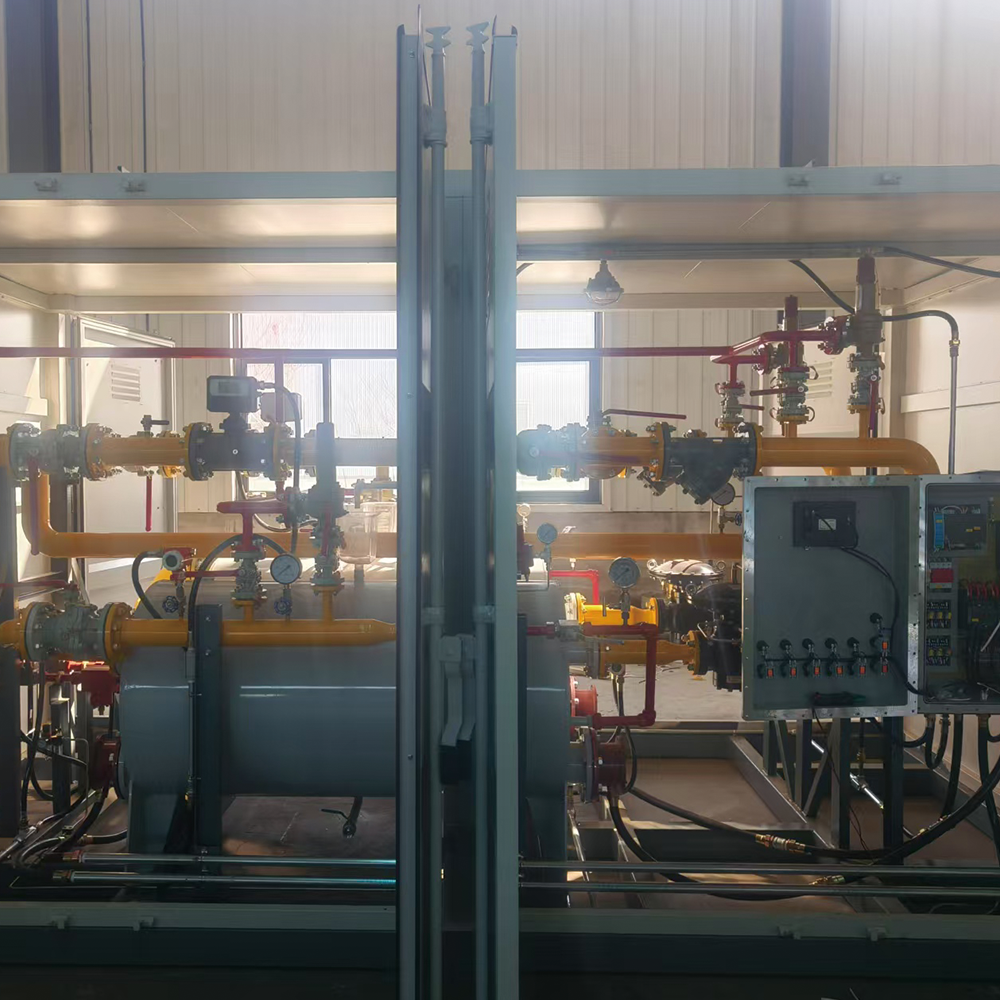

A modern pressure regulating and metering station integrates multiple specialized subsystems. They work seamlessly together to clean, heat, regulate, and precisely measure gas streams.
Raw natural gas carries dangerous liquids and solid particulates. These hidden contaminants rapidly ruin sensitive meter bearings and aggressively erode valve seats. Filtration units physically strip out these hazards before they reach critical zones. You need robust knockout drums for large liquids and fine coalescing filters for microscopic aerosols. They guarantee long-term metering accuracy and protect delicate downstream instrumentation from premature wear.
Reducing gas pressure causes severe and rapid temperature drops. We define this thermodynamic reality as the Joule-Thomson effect. For every bar of pressure dropped, gas temperatures typically fall by roughly half a degree Celsius. If left unchecked, this chilling effect freezes valves solid and forms dangerous ice-like gas hydrates. Gas heating systems directly counteract this chilling process. Water bath heaters, catalytic heaters, and shell-and-tube heat exchangers keep the gas stream safely above freezing points.
The heart of the entire station is the gas regulation system. It steps down massive transmission pressures to usable operational levels safely.
Active and Monitor Regulators: Two separate regulators operate in series. If the primary active unit fails open, the backup monitor instantly assumes flow control.
Fail-Safe Mechanisms: SLAM shut valves sit upstream. They monitor pressure limits continuously. If they detect extreme over-pressure or under-pressure events, they trip shut. They cut off flow entirely to protect local distribution networks.
Accurate financial billing requires highly sensitive electronic instrumentation. You must carefully select the right meter technology for your specific flow profile.
Ultrasonic Meters: They operate without moving parts. They remain best for massive, high-volume flows where obstructions cause unacceptable pressure drops.
Turbine Meters: These mechanical meters work beautifully for steady, medium-to-high industrial gas loads.
Rotary Meters: They capture exact volumes mechanically. They are perfect for lower distribution flows with high turndown requirements.
Electronic volume correction devices (EVCs) constantly adjust raw volumetric data using real-time temperature and pressure readings. Gas chromatography equipment analyzes the exact chemical composition to determine precise heating values. Finally, odorization injection units actively add mercaptan to the gas stream. This crucial safety step gives completely odorless natural gas its distinct, recognizable smell.
Meter Technology Selection Matrix | |||
Meter Technology | Ideal Application | Turndown Capabilities | Maintenance Profile |
|---|---|---|---|
Ultrasonic | High flow, City Gate, Transmission | Extremely High | Minimal mechanical wear, relies on acoustic sensors |
Turbine | Steady industrial loads, Power Plants | Medium | Requires periodic bearing lubrication and spin testing |
Rotary | Variable distribution, Commercial feeds | High | Susceptible to damage from heavy particulates |
Every gas network faces unique operational demands. You must match the station architecture to your specific load profiles and spatial constraints.
These massive hubs handle immense volumes and enormous pressure drops. City gate stations require absolute maximum redundancy. They must meet strictly audited custody transfer compliance standards. A failure here affects heating for entire municipalities. They utilize parallel metering streams, redundant heating systems, and highly robust multi-stage filtration setups.
Gas-fired power plants have highly erratic, rapidly variable load profiles. Turbines demand instant gas surges during peak power generation times. A power plant feed needs extremely wide turndown ratios. The regulators must deliver ultra-rapid response times. Slow valves cause turbine trips and severe regional power outages. The system must adapt instantly from low idle flows to maximum capacity.
CNG virtual pipeline sites operate at extreme operational pressures. They routinely drop compressed gas from 250+ bar down to standard 4 bar distribution levels. These specialized sites prioritize robust, multi-stage heating setups. The Joule-Thomson effect is incredibly severe at these massive pressure drops. We often build these configurations on an ultra-compact PRMS skid. This compact design fits seamlessly into tight industrial footprints and remote off-grid locations.
Project engineering teams must choose between modular and site-built station designs.
Pre-packaged Skids: They offer guaranteed precision weld quality performed in controlled factory environments. They undergo complete Factory Acceptance Testing (FAT) before shipment. This guarantees faster field deployment, minimizes on-site hot work, and reduces weather delays.
Built-in-Place Structures: They provide unmatched flexibility for highly restrictive, irregular, or existing legacy sites. Built-in-place methodologies work exceptionally well when transporting a massive, heavy skid via local roads proves logistically impossible.
Procuring critical gas infrastructure requires strict adherence to global safety and engineering frameworks. Ignoring these proven standards invites catastrophic operational risks.
Baseline compliance dictates the entire station architecture. ASME B31.8 strictly governs gas transmission and distribution piping systems. API standards dictate rigorous custody transfer metering protocols globally. You must also specify ATEX or IECEx certifications for all hazardous area electronic instrumentation. These explosive atmosphere ratings prevent devastating ignition risks around volatile gas leaks.
Never size a pressure station based solely on nominal pressure drops. You must comprehensively assess the required turndown ratios and exact flow coefficients (Cv). Engineers must mathematically calculate maximum velocity limits through the entire piping network. Excessive gas velocity causes severe internal erosion, deafening acoustic noise levels, and dangerous harmonic vibrations.
Modern gas networks rely heavily on continuous digital data streams. The station control panel must handle comprehensive SCADA integration effortlessly. Advanced telemetry provides remote diagnostics and real-time flow data directly to central operators. Predictive maintenance algorithms send instant alerts. They warn field teams about failing regulators long before they physically break.
Evaluation Criteria Checklist | ||
Evaluation Phase | Critical Requirement | Impact on Operations |
|---|---|---|
Fluid Dynamics | Perform CFD Modeling | Prevents acoustic fatigue and high-velocity internal pipe erosion. |
Structural Design | Conduct Skid Lifting Analysis | Ensures safe transport and prevents frame twisting during crane hoisting. |
Quality Assurance | Execute Comprehensive FAT | Verifies all telemetry, valves, and mechanicals before field deployment. |
Evaluate your manufacturing partner very carefully. Do they possess in-house engineering expertise? They should provide complete fluid dynamic modeling. They must conduct structural skid analysis for safe lifting. Always demand comprehensive Factory Acceptance Testing (FAT). You want proof of performance before signing off on final equipment delivery.
Even perfectly engineered stations face real-world deployment challenges. Recognizing these risks early keeps complex projects on schedule and prevents budget overruns.
Garbage data fed into engineering models leads to drastically undersized equipment. Project owners frequently underestimate extreme seasonal flow variations. Gas composition changes also drastically alter thermodynamic heating requirements. This poor data leads to undersized water bath heaters or rapid regulator diaphragm wear. Always rigorously verify input data during the initial FEED stage.
Transitioning from the controlled factory to the rugged site introduces friction. Factory Acceptance Testing (FAT) rarely perfectly mimics chaotic Site Acceptance Testing (SAT). Site civil works often fail to align with exact skid footprints. You might face frustrating SCADA communication handshake issues. Early, consistent communication between civil contractors and electrical automation teams mitigates these expensive delays.
You must design your station for actual human workers. Filter elements eventually clog up and require routine manual replacement. You must ensure filters can be safely bypassed using redundant streams. Field workers need sufficient physical clearance to swing heavy wrenches and swap parts without initiating total station shutdowns.
Run-to-failure and reactive maintenance models are entirely obsolete. We are transitioning rapidly to predictive digital twin models. Smart sensors continuously monitor regulator diaphragm health and stem travel. They track metering calibration drift over long time horizons. This digital approach catches mechanical degradation early, preventing unexpected outages.
The global energy industry no longer views a gas station as simple, commodity pipework. We now treat it as a highly engineered, digitally integrated asset crucial for network stability. Success requires aggressively balancing strict compliance codes with application-specific operational realities. You must match precise custody transfer metering with utterly robust fail-safe systems.
Moving forward, focus on these critical steps:
Rigorously validate your flow data and gas composition limits during the initial FEED stage to prevent expensive sizing errors.
Prioritize modular skid deployments to streamline installation timelines and guarantee factory-level testing quality.
Integrate advanced SCADA telemetry right away to transition your teams from reactive repairs to intelligent predictive maintenance.
Are you planning a new gas infrastructure expansion? Compile your load profiles, pressure parameters, and site environmental constraints today. Engage experienced structural and mechanical engineering teams early for a comprehensive preliminary sizing and feasibility review.
A: A standard regulating station primarily focuses on basic pressure reduction. A PRMS adds highly accurate custody-transfer metering, advanced gas heating systems to prevent freezing, and complex SCADA telemetry for remote monitoring. It serves as a financial and physical boundary, requiring much stricter compliance and instrumentation than simple regulators.
A: When high-pressure gas expands during regulation, it experiences a rapid temperature drop known as the Joule-Thomson effect. Without gas heaters, this severe chilling freezes valves, forms solid gas hydrates, and destroys sensitive equipment. Heaters counteract this thermal loss to keep the gas stream flowing safely.
A: Deployment timelines vary based on complexity, but typically span 24 to 40 weeks. Front-end engineering and design (FEED) takes roughly 4 to 6 weeks. Procurement and fabrication require 16 to 24 weeks. Final Factory Acceptance Testing (FAT), shipping, and site installation usually consume the remaining 4 to 10 weeks.
A: The heavy mechanical components, like piping and structural skids, easily last 25 to 30 years with proper maintenance. However, the digital telemetry, SCADA interfaces, and highly sensitive custody-transfer metering components operate on much shorter lifecycles. They typically require significant upgrades or replacements every 7 to 10 years.
