| Quantity: | |
|---|---|
Main performance parameters of the axis module
| Brand: | Wind blade transportation |
| Dimension: | 16250mm*3700mm*5000mm |
| Loading capacity: | 23.5 Tons |
| Axle: | 3 lines 6 axles |
| Max rotation angle: | 360 |
| Hydraulic station: | 40KW Four-cylinder Diesel Engine |
| Tail: | Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher |
| Transportable wind blade specification: | 121-155 model |
| Diameter of lifting cylinder: | 320mm; four-axis tire 8.25R16 |
| N | Name | Parameters |
| 1 | Wheelbase | 1550 mm |
| 2 | Wheelbase | 735/1820 mm |
| 3 | Number of tires | 8 pieces/each axis |
| 4 | Tire specifications | 215/75R17.5 |
| 5 | Rim specifications | 6.00-17.5 |
| 6 | Cargo bed width | 2990 mm |
| 7 | Cargo platform height (middle heavy load) | 1070mm |
| 8 | suspension travel | ±300 mm |
| 9 | Steering mechanism | All-wheel hydraulic traction steering or control steering |
| 10 | Frame main material | Q550D |
| 11 | Maximum turning angle in the first round | 55° |
| 12 | Frame form | Flat grid format |
| 13 | Cargo platform support method | Three-point support or four-point support |
| 14 | The effective load capacity of each axis | 22.5tons(18km/h) |

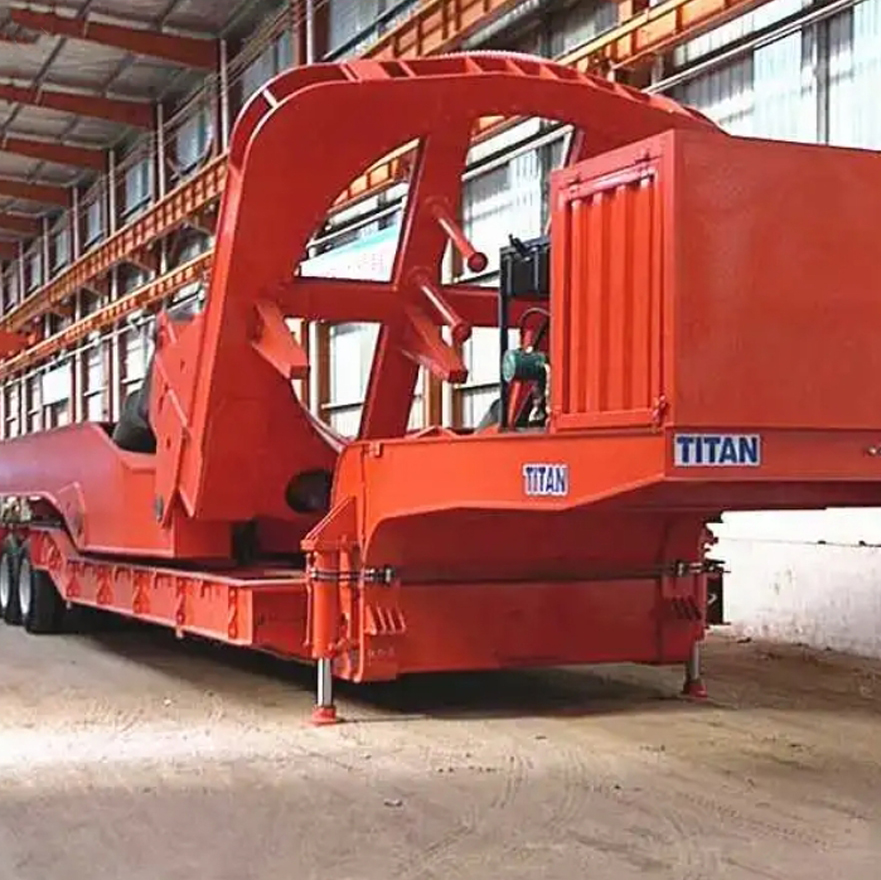

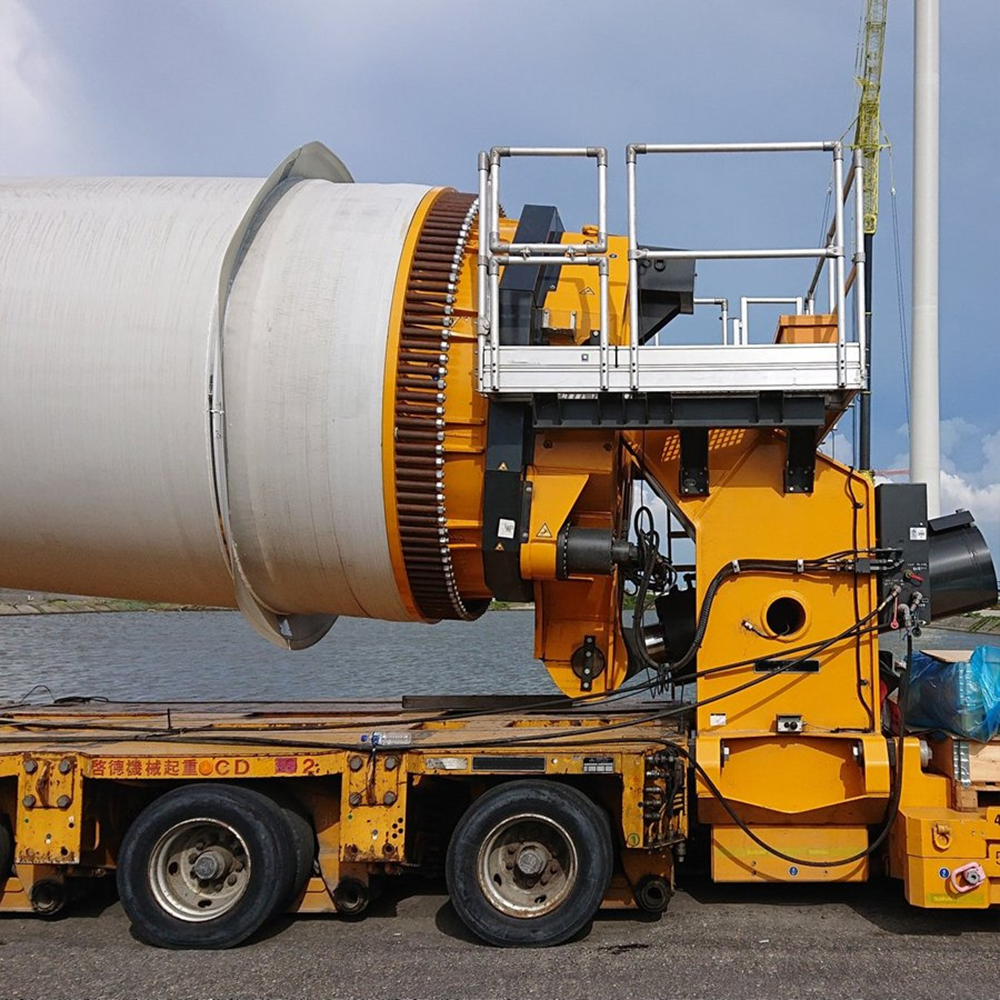

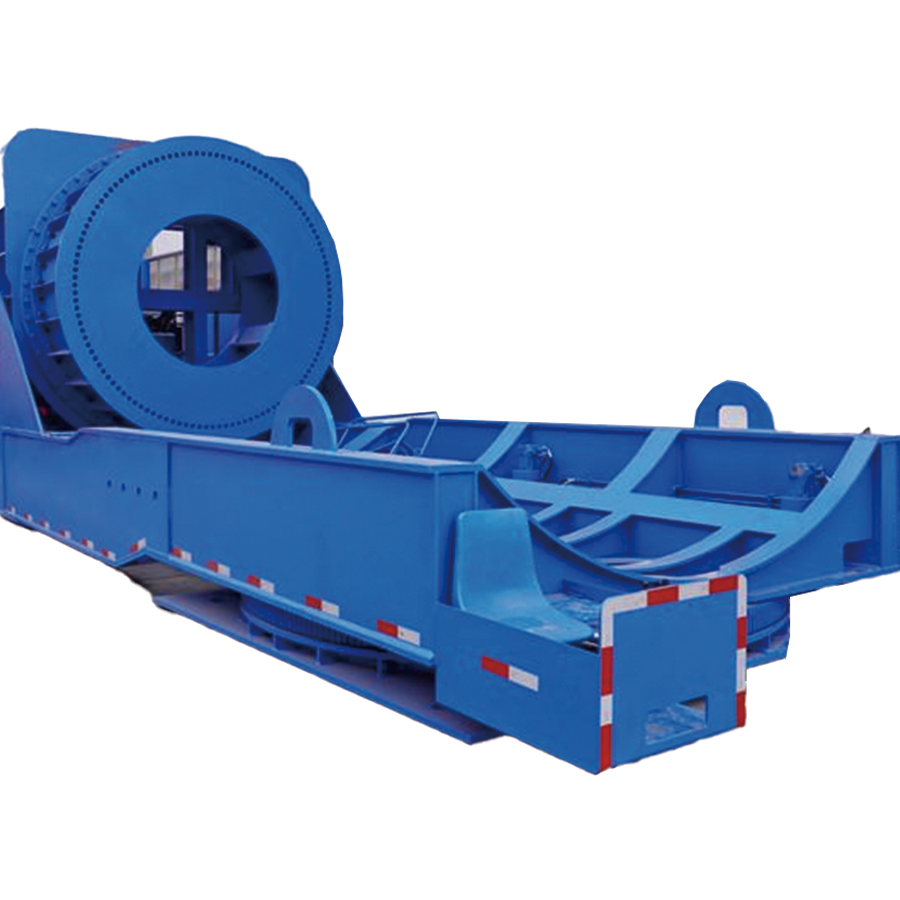

The wind turbine blade transporter has modular design and all-terrain adaptability as its core advantages. Its two-stage blade adapter can be flexibly adjusted according to the blade diameter (2-6 meters). With the intelligent steering system and hydraulic suspension chassis, it can travel stably under extreme road conditions with a slope of ≥15° and a curve radius of ≤15 meters. The equipment controls the blade deflection within 50mm through dynamic balance control and a three-point support structure. In addition, the use of lightweight materials (carbon fiber support structure reduces weight by 30%) and electric hydraulic module trailers has increased its fuel efficiency by 20% and reduced carbon emissions by 50%.
The hydraulic telescopic beam wind vane truck is known for its optimized load distribution and intelligent monitoring technology. Its hydraulic telescopic beam has a length of 44-82 meters. With the multi-axis linkage system, the single-axis load can be controlled within 45 tons to reduce road damage. This model is also equipped with a remote monitoring system that can send back data such as temperature, humidity, and tire pressure in real time, improving transportation efficiency by 20%.

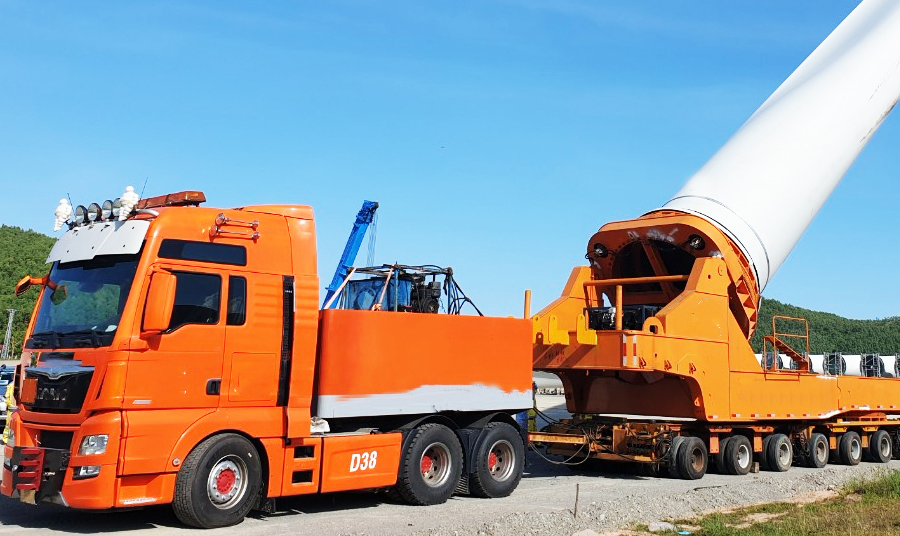

Huayan wind turbine blade transporter has become a benchmark product for wind turbine blade transportation with its modular adaptation, intelligent adjustment function and all-terrain adaptability. Its hydraulic telescopic beam type performs well in long-distance trunk transportation, while the modular adaptation system is more suitable for complex mountainous and cross-border projects. In the future, as blade length continues to increase and transportation scenarios become more diverse, companies need to consider blade size, transportation distance and terrain complexity when selecting models, and give priority to brands with independent intellectual property rights and global services.
ADVANTAGES
1. Max rotation angle of the rotor blade 360°.
2. Angle of inclination up to 60°.
3. Radio remote control with display of wind speed, transverse gradient, blade position, and ballast position.
4. Titan wind blade adapter can combine with a modular semi-trailer.
5. The height of the trailer platform can be 500mm to 1000mm.
6. Self-balancing counterweight ensures the transport stability and safety.
7.The Windmill blade adaptor lowers the wind blade to pass under electric wires on a public road

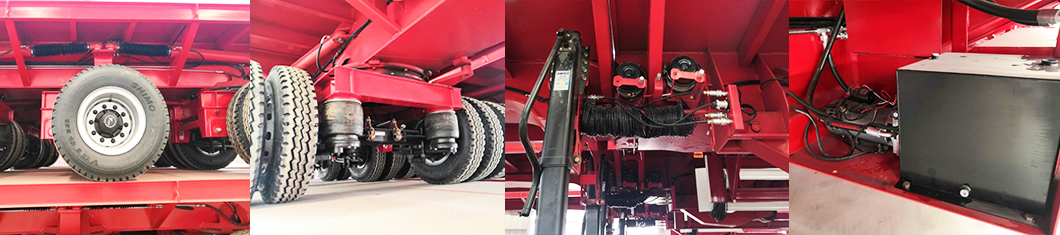

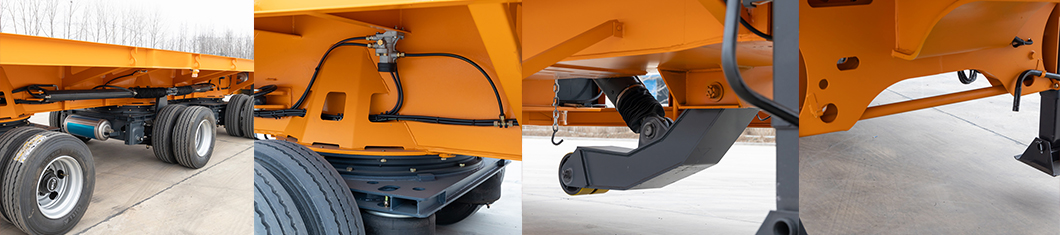

Steerable axles, AIR SUSPENSION,Extendable telescopic beam, Powerpack,2.5KW power pack system helps the trailer to steer easily,The wireless remote control panel enables the operator to steer the trailer safely and conveniently. If you want to transport windmills on mountains, then the blade adapter is needed.

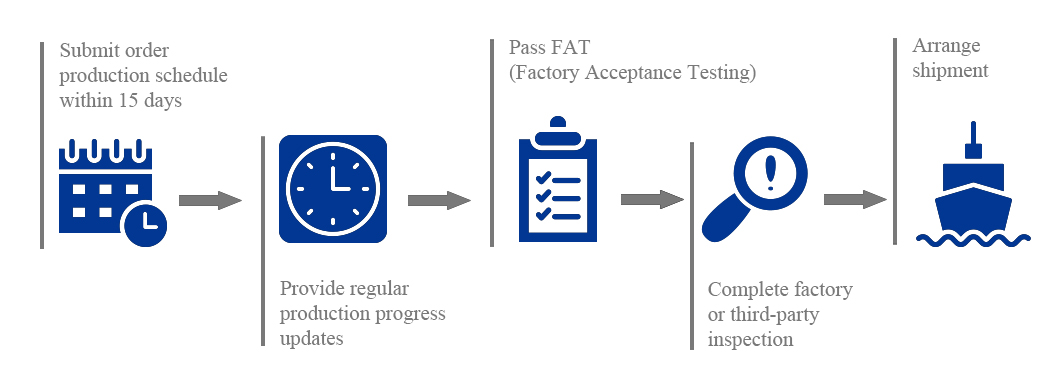

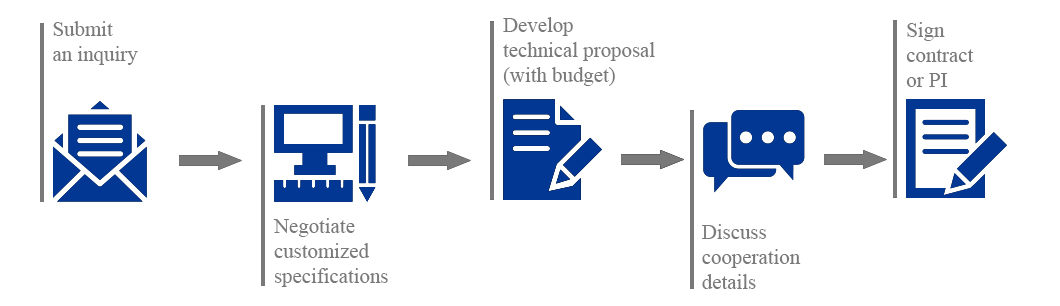

Cooperation Process
After order

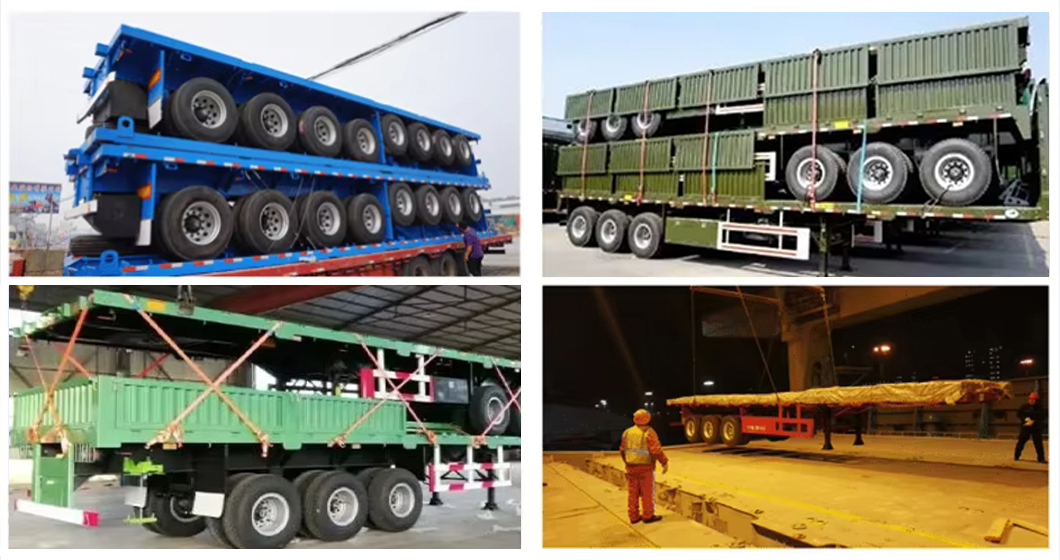

Delivery capability
Our company will prepare a delivery schedule for your project, and we have good logisticscapabilities to provide you with domestic and international logistics delivery capabilities in China.
FQA
1. Are you a manufacturer or trading company?
We are a manufacturer and supplier of specialized transport equipment, which offers a one-stop solution for all kinds of difficult transport jobs.
2. What products can you provide?

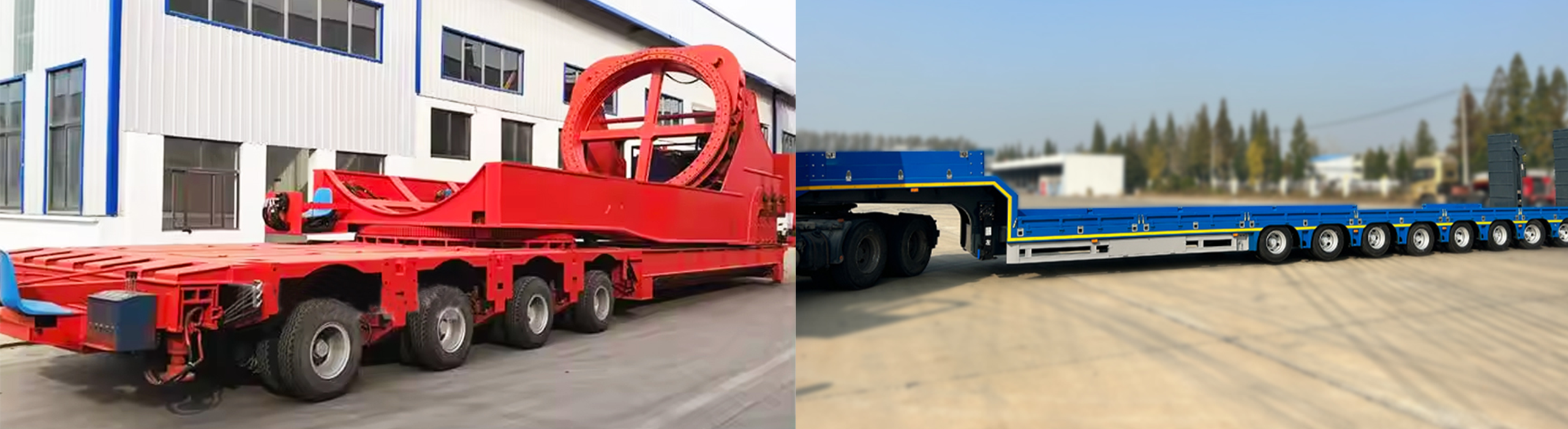

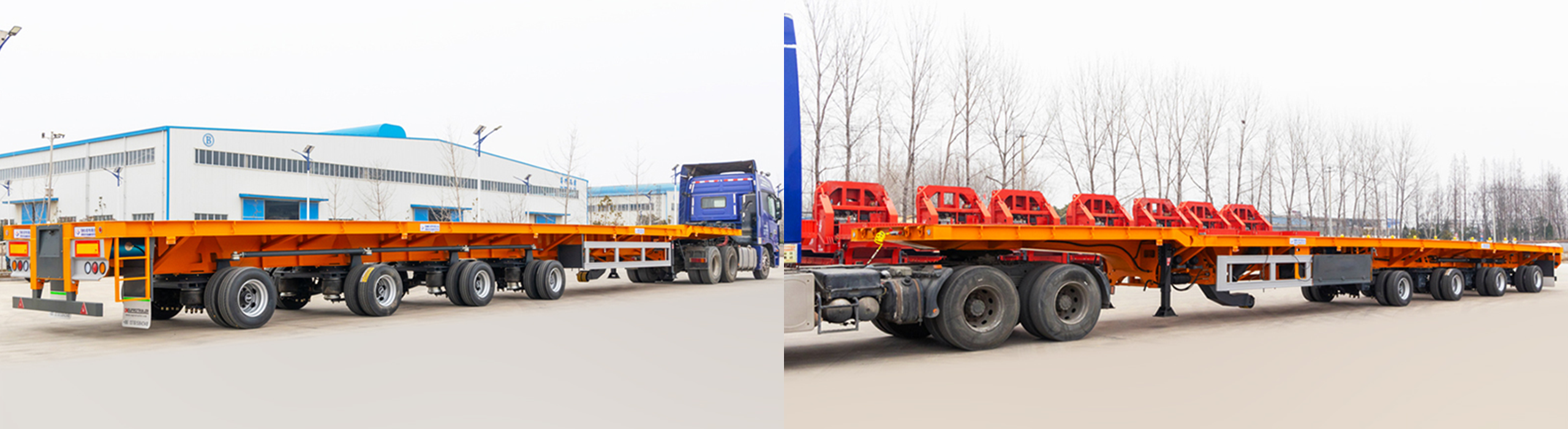

We specialize in special transport vehicles including wind blade trailers, modular trailers, low bed trailers, and flatbed
trailers. It can be customized as requested.
3. May I have the best price from you?
Sure. We are always on the way to promoting our product price and service competitive
4. Do you provide a one-stop service so I can save my time and labor?
You will own a professional team in China by cooperating with HUAYAN
5. What's the delivery time?
If the standard models, then we can ship them out within 10 - 15 working days
If special trailers or customized trailers, 25 working days.
6. What's the warranty time?
The ordinary semi-trailer is 10 years, and the heavy-duty trailer, special trailer warranty time is 8 years.
7. What's your after-sale service?
The after-sale service during the lifetime and the spare parts.
We can provide remote video guidance or door-to-door technical service
