Transitioning high-pressure natural gas transmission lines to safe, usable distribution pressures presents severe physical challenges. Operators face complex operational obstacles during this process. These include extreme temperature drops, intense acoustic vibration, and catastrophic overpressure risks.
Unlike traditional site-built facilities, a pre-engineered Natural Gas Pressure Reduction Skid functions as a unified modular solution. It effectively consolidates essential filtration, thermodynamic heating, regulation, and precision metering into a single, factory-tested unit. This approach removes massive amounts of uncertainty from complex pipeline infrastructure projects.
The primary purpose of this article is to provide engineering and procurement teams with an evidence-based framework. We aim to help you specify, evaluate, and deploy modular pressure control systems safely. You will learn how to sequence components correctly, adhere to strict sizing laws, and ensure compliance with international safety standards.
Component Synergy: A reliable gas pressure reduction unit must strictly sequence liquid knockout, particulate filtration, thermodynamic heating, and dual-stage regulation.
The Modular Advantage: Pre-packaged skids reduce field-assembly risks, accelerate deployment schedules, and guarantee Factory Acceptance Testing (FAT) before site arrival.
Rigorous Sizing Laws: Correct specification relies on strict flow velocity limits (e.g., maintaining header velocities below 13 m/s) and compliance with international codes (ASME B31.8, API 6D).
Safety & Redundancy: Modern skids mandate active/monitor regulator configurations and slam-shut valves with sub-2-second response times to protect downstream assets.
Every successful design relies on a sequential functional architecture. We must process the raw natural gas through distinct phases to ensure safety and precision.
You must always start by eliminating liquids. Raw natural gas often carries entrained water and hydrocarbon liquids. Moisture accelerates internal pipeline corrosion exponentially. Knock-Out (KO) drums are absolutely necessary in this first stage. They utilize gravity and centrifugal force to drop liquid condensates out of the gas stream. If you skip this step, you risk severe downstream liquid hammer. Liquid hammer can instantly destroy delicate valve trims and pipe fittings.
Following liquid separation, we employ advanced coalescing gas filters. These specialized filters capture ultra-fine solid particulates and aerosolized liquids. We must remove these microscopic contaminants thoroughly. Otherwise, abrasive debris will score the expensive regulator seats. Furthermore, dirty gas can easily foul the sensitive nozzles inside downstream gas turbines.
Pressure reduction creates a massive thermal challenge. When natural gas undergoes adiabatic expansion, its temperature drops significantly. We call this the Joule-Thomson effect. A severe pressure reduction causes potential ice blockages inside the piping. It also promotes the dangerous formation of methane hydrates. Hydrates are ice-like crystalline structures that physically plug pipeline cross-sections.
Operators must integrate robust heating solutions to counteract this effect. Standard integrations usually include large water bath heaters. These units safely transfer thermal energy to the gas stream before the pressure cut. For smaller applications, engineers might utilize electric heat tracing wrapped directly around the piping. Alternatively, some systems employ catalytic heaters built safely within the skid footprint.
The core of the system lies in its regulation capabilities. Engineers typically compare two primary regulator types. Direct-acting, or spring-loaded, regulators offer an incredibly rapid response to sudden flow changes. However, pilot-operated regulators excel at high-capacity, highly precise control. They manage large volumes with exceptional accuracy.
Metering requires an equally rigorous approach. You must include sophisticated flow conditioners inside the piping. These devices eliminate turbulent swirl and stabilize the gas flow profile. You then position ultrasonic or turbine meters according to strict American Gas Association (AGA) guidelines. Adhering to AGA Report No. 9 for ultrasonic meters guarantees custody-transfer accuracy. For example, you must place temperature sensors exactly 2 to 5 pipe diameters downstream of the meter. This specific placement ensures highly accurate volume calculations.
You cannot guess piping dimensions in high-pressure gas applications. Correct specification relies entirely on strict engineering laws.
Conservative engineering dictates absolute flow velocity limits. You must standardize main pipeline velocities at a maximum of 20 meters per second (m/s). More importantly, you must restrict header boxes to a maximum of 13 m/s. High velocities strip away pipe wall material over time. These strict limits minimize internal erosion, dangerous vibration, and excessive mechanical fatigue.
Noise reduction is a non-negotiable requirement for any pressure reducing station. High-velocity gas passing through a narrow valve restriction creates intense acoustic energy. Prolonged exposure to high-decibel noise damages personnel hearing and violates strict OSHA workplace regulations. You must detail the necessity of noise reduction during the initial design phase.
Designers frequently utilize Whisper Trim™ technology inside the regulator valves. This specialized trim divides the gas into smaller streams, altering the acoustic frequency. Alternatively, engineers might specify buried header designs to trap the noise underground. Your primary goal is to achieve standard sub-85 dB occupational limits. In sensitive residential zones, you should target an aggressive 30 dB noise reduction.
We can outline clear sizing expectations based on the specific application profile. The required capacity dictates the overall physical dimensions of the skid.
Station Category | Primary Function | Typical Inlet Pressure | Typical Outlet Pressure |
|---|---|---|---|
City Gate Stations (CGS) | High-volume transitions handling extreme pressure drops for major municipal utility grids. | Up to 1400 psig | Approximately 250 psig |
Town Border Stations (TBS) | Medium-capacity distribution nodes bridging the gap between regional networks and local users. | Up to 250 psig | Approximately 60 psig |
Procurement teams constantly weigh the benefits of modular design against traditional construction. The commercial assessment heavily favors the pre-packaged approach.
We must frame the modular skid primarily as a risk-mitigation tool. Custom site-built stations face variable labor costs and constant weather delays. They require prolonged, complicated site integration involving dozens of separate vendors.
In contrast, pre-packaged skids deliver absolute schedule predictability. You build the entire system in a controlled factory environment. This environment eliminates weather interruptions entirely. Consequently, you can guarantee delivery schedules with a remarkably high degree of confidence.
Engineering, Procurement, and Construction (EPC) firms require streamlined workflows. They benefit tremendously from single-source accountability. Having one vendor handle the entire project reduces administrative friction and enhances quality control.
This single vendor performs the initial thermodynamic process simulation using Aspen Plus® modeling. They handle the structural fabrication and the intricate pipe welding. Finally, they guarantee rigorous Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT). This unified approach prevents vendors from blaming one another when integration issues arise.
Space efficiency remains a critical commercial advantage. Engineers design these systems efficiently on compact structural steel bases. They optimize the 3D layout to utilize every square inch of the frame without compromising maintenance access.

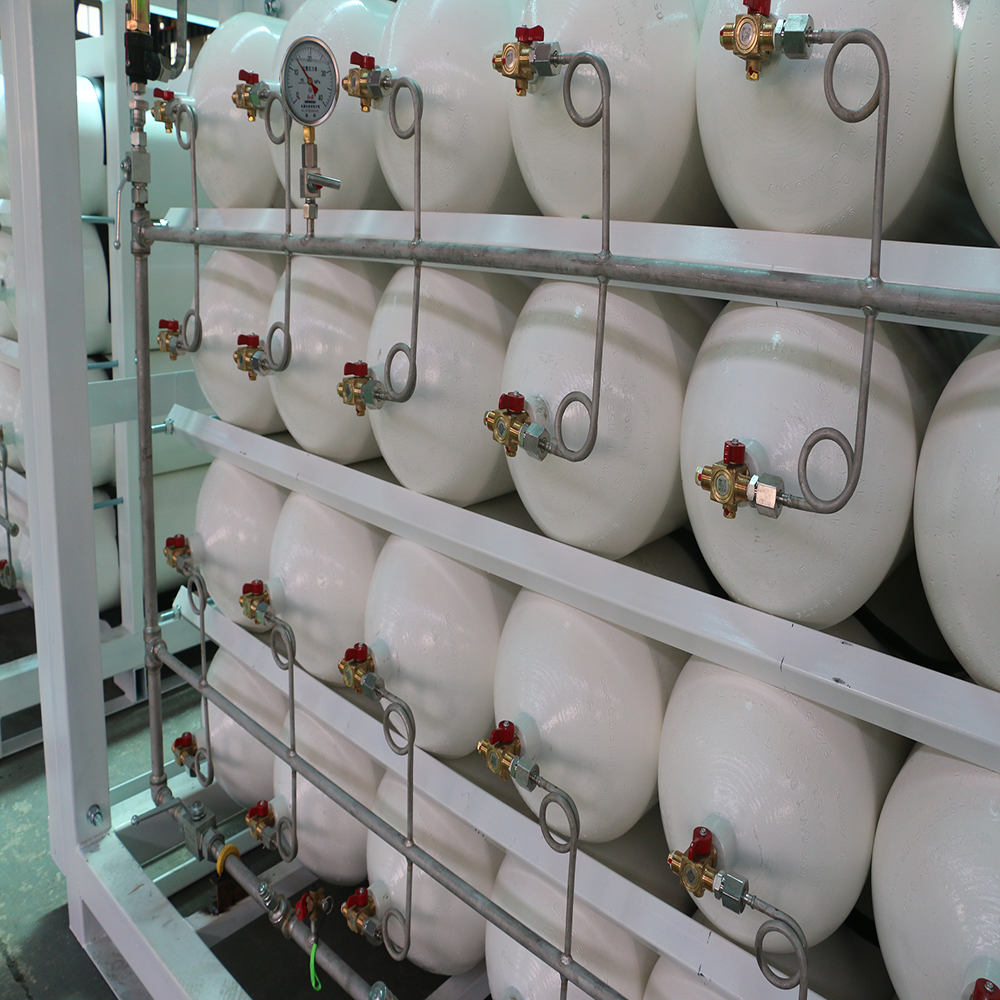

For mobile applications, portability is paramount. Teams often install mobile Compressed Natural Gas (CNG) off-load systems directly inside standard ISO containers. This allows operators to transport the equipment via standard freight networks. Upon arrival, they can initiate the gas flow in a matter of hours instead of weeks.
You need a methodical approach when selecting a gas pressure reduction unit. Follow this structured framework to ensure absolute safety and compliance.
Safety Redundancies and Overpressure Protection: You must specify the exact requirement for dual regulator configurations. Demand either a Worker/Monitor setup or an Active/Standby arrangement. An Active/Standby configuration operates differently, running two parallel lines where one remains completely closed until needed. Furthermore, mandate the inclusion of robust Slam-Shut valves. You must require documented response times of less than 2 seconds. Ensure these safety devices meet zero-emission or low-bleed environmental standards.
Regulatory Compliance and Materials: Create a strict checklist of non-negotiable industry standards. You must adhere to ASME B31.8 for safe gas transmission. Pipeline valves must comply entirely with API 6D specifications. Your electrical control panels require complete NEC or IEC certification. If you operate in European markets, you must secure ATEX and PED compliance. Material selection also demands careful scrutiny. Choose between standard carbon steel and high-grade stainless steel. Base this decision entirely on the presence of corrosive hydrogen sulfide (H2S) and your calculated corrosion allowance.
Digitization and Predictive Strategies: Modern operations demand high integration readiness. Evaluate your equipment based on its long-term digital capabilities rather than just the initial physical build. Look for seamless integration with predictive maintenance software. Implement Condition-Based Monitoring systems to track valve health in real-time. By utilizing smart diagnostics, you can significantly reduce your physical inspection frequency. This proactive strategy extends the operational lifespan of the entire system safely.
A highly engineered pressure control skid serves as the backbone for several critical infrastructure sectors.
Municipalities rely heavily on these stations for their daily energy needs. They safely step down utility-grade gas from high-pressure cross-country pipelines. They condition this volatile energy source and feed it directly into local municipal distribution grids. These stations ensure that households and commercial businesses receive gas at safe, usable pressures continuously.
Combined-cycle power plants operate with incredibly tight mechanical tolerances. They demand perfect fuel conditioning at all times. The skid supplies precisely metered and intensely filtered fuel gas directly to the gas turbines. Any fluctuation in pressure or temperature can disrupt the turbine's efficiency. Therefore, power generation applications require the highest tier of rapid-response regulation and thermodynamic heating.
Heavy industrial manufacturing consumes massive volumes of natural gas daily. These customized stations regulate gas for massive industrial burners and complex chemical injection systems. They provide the necessary backbone for expansive manufacturing plant infrastructure. Reliable pressure control ensures that industrial heating processes remain stable, efficient, and exceptionally safe for plant personnel.
Procuring a natural gas pressure reduction skid is not merely a component purchase; it is a critical safety and flow-assurance investment. Your facility's operational integrity depends entirely on the reliability of this centralized system.
Procurement teams must prioritize vendors who offer rigorous process simulation and deep engineering expertise. You must demand transparent acoustic and velocity calculations before approving any design. Furthermore, you should prioritize stringent Factory Acceptance Testing over raw upfront metrics. Integrating smart telemetry into the initial skid design is the most reliable way to drive down long-term maintenance requirements.
Verify all flow velocity calculations strictly against the 13 m/s header limits.
Ensure your chosen vendor utilizes advanced thermodynamic modeling for precise heater sizing.
Request complete performance documentation for all integrated slam-shut valves.
A: The worker regulator handles primary pressure reduction. The monitor is a secondary backup installed in series, set slightly higher, which takes over instantly if the worker fails open, preventing downstream overpressure.
A: For every 100 psi drop, natural gas temperature drops roughly 7°F. Skids must incorporate pre-heaters to prevent pipelines from freezing, which can destroy valves and halt gas flow.
A: Routine tasks include replacing coalescing filter elements, draining KO drums, stroke-testing slam-shut valves, and calibrating flow meters. Advanced skids utilize differential pressure sensors to alert operators exactly when filter maintenance is required.
