Gas demand does not disappear just because a pipeline is not available. Factories, industrial parks, remote energy users, and temporary supply points still need a stable source of fuel, and that is where a CNG Tube Semi Trailer becomes highly practical. Instead of waiting for fixed infrastructure, operators can move compressed natural gas by road and deliver it where it is needed. As a transport solution provider, Jiangsu Huayan International Trade Co., Ltd. develops equipment for this kind of application, and understanding how the system works helps customers see why this trailer is more than a vehicle body with cylinders attached.
A CNG tube semi trailer is designed to transport compressed natural gas from a filling source to an end-use location. The gas is stored in high-pressure tubes mounted on a trailer chassis, then moved by road to industrial users, stations, or distribution points. This makes it possible to supply gas even when permanent pipeline access is not available.
The key purpose is mobility. Instead of bringing the user to the gas network, the trailer brings the gas network to the user in a transportable form. That makes the equipment especially valuable in projects where speed, flexibility, or location limits make fixed pipeline construction difficult.
A liquid tanker carries fluid in a tank body, but a CNG tube semi trailer works with compressed gas stored in pressure tubes. That difference changes the whole operating logic. The structure, safety systems, loading method, and unloading method are all based on gas pressure control rather than liquid transfer alone.
Because of this, the trailer needs a combination of pressure-resistant storage, reliable piping, secure valve layout, and a chassis structure that can support both the tube bundle and transport stresses during road use.
In many real projects, a CNG tube semi trailer is part of a virtual pipeline system. This means gas is delivered by transport equipment instead of by underground pipeline. The trailer fills at a gas source, travels to the user, unloads through a controlled connection, and then returns for the next cycle.
This approach is widely used when customers need gas supply quickly, temporarily, or in areas where building a full pipeline is not yet practical. It turns transport equipment into part of the energy delivery system itself.

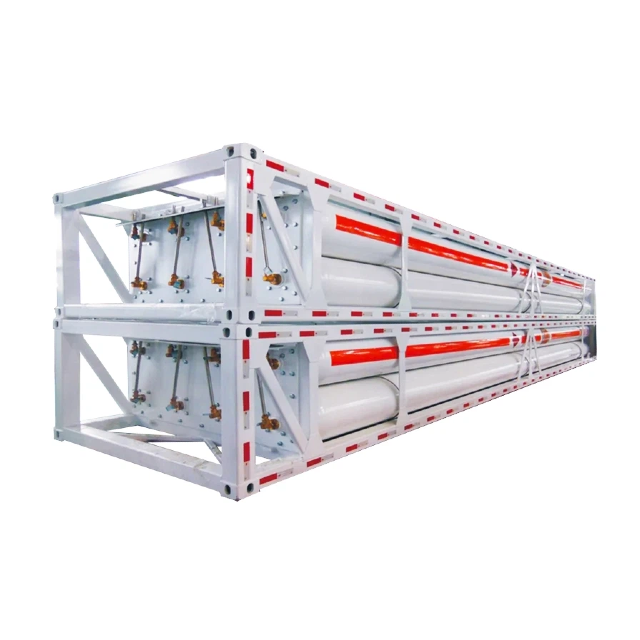

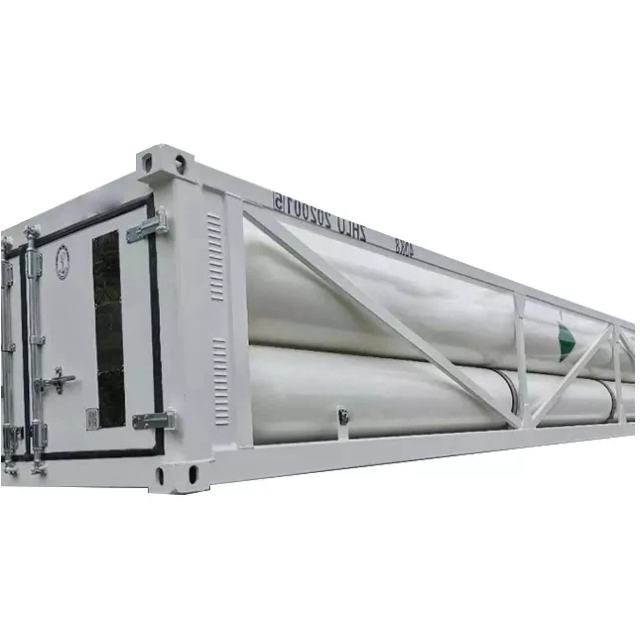

The storage tubes are the heart of the trailer. These high-pressure cylinders hold compressed natural gas safely during transport and delivery. Their number, material, and arrangement affect the trailer’s capacity, working pressure, and total layout.
Because the gas is stored under pressure, the tube system must be designed and manufactured to suit demanding operating conditions. Capacity alone is not enough. The storage system also needs structural reliability and consistent performance over repeated filling and unloading cycles.
The chassis carries the full tube bundle and keeps the load stable on the road. This part of the trailer is not simply a transport base. It has to support concentrated weight, resist vibration, and maintain structural stability during loading, travel, and unloading.
That is why chassis design matters so much in this kind of equipment. A strong support frame helps protect the tube bundle, keeps the trailer balanced, and supports longer service life under repeated use.
The trailer also includes valves, manifolds, pressure-related components, and safety devices that control gas movement and system protection. These parts guide gas during filling and unloading while helping operators manage pressure safely.
The operation area should be laid out clearly and practically so that connection, monitoring, and routine procedures can be completed efficiently. In gas transport equipment, usability and safety work together.
Before the trailer is loaded, natural gas is compressed to the required pressure level at the filling station or gas source. This is a necessary step because the trailer carries compressed gas, not low-pressure natural gas in its original state.
Compression allows a larger amount of gas to be stored within the available tube volume. Without that compression step, road transport would be far less efficient.
Once the gas is ready, it enters the tube bundle through a controlled filling process. Operators do not simply push gas in as fast as possible. Pressure, system condition, and filling sequence must be managed carefully to protect the equipment and maintain safe operation.
A proper filling process helps balance efficiency with control. It also reduces the chance of unnecessary stress on valves, pipelines, and storage tubes.
After filling, the system is checked before the trailer leaves the site. Operators confirm pressure status, connection condition, and overall readiness for transport. This stage matters because the trailer is moving from a controlled station environment to real road conditions.
A well-managed pre-dispatch check supports safer travel and reduces the chance of avoidable problems during delivery.
During transport, the compressed gas remains stored inside the high-pressure tubes. The storage system is designed to keep the gas contained until controlled unloading begins at the destination. The gas does not move like loose cargo. It remains part of a sealed and engineered pressure system.
This is why the integrity of the tube bundle and related piping is so important. The system must remain stable over distance, vibration, braking, and route variation.
The tubes may store the gas, but the frame protects the whole transport arrangement. Road shock, uneven surfaces, repeated deceleration, and long-distance hauling all place stress on the chassis and support structure. If the frame is not strong enough or well matched to the load, long-term reliability suffers.
For this reason, the trailer is not just about storage capacity. Structural design is part of the working principle because it keeps the gas system secure throughout the transport cycle.
Road transport risk is managed through route planning, operating procedures, inspection routines, and good equipment condition. Drivers and operators need to pay attention to road quality, braking behavior, tire condition, and visible system integrity. Safe transport depends on both equipment design and disciplined operation.
At the delivery point, the gas is unloaded through a controlled pressure-based process. The trailer connects to downstream equipment or a receiving system, and the gas flows out according to pressure control and site requirements.
This is not the same as unloading ordinary bulk material. The process must remain stable, monitored, and consistent with the working pressure of the receiving side.
The trailer can be connected to customer-side gas systems, decompression equipment, or temporary receiving infrastructure. In many applications, the trailer forms one stage of a wider delivery chain rather than acting alone. That is why compatibility with the operating site matters.
A good trailer supports smooth integration into these real project environments instead of functioning only as a transport product on paper.
In continuous gas supply projects, one trailer may unload while another is already on the way or waiting for the next cycle. This rotation model helps maintain uninterrupted supply. It is one of the reasons CNG road delivery can work effectively in virtual pipeline systems.
The trailer therefore supports both transport and supply continuity. It is part of an operational rhythm, not just a one-time delivery tool.
Many customers need gas in areas where pipeline infrastructure is unavailable, delayed, or uneconomical. A CNG tube semi trailer makes supply possible without waiting for permanent civil works.
Some industrial plants use this equipment as backup supply or to handle temporary peak demand. When main supply is interrupted or demand rises above normal levels, mobile gas delivery becomes valuable.
The trailer is also useful in mobile gas supply and regional energy distribution applications where flexibility matters more than fixed layout. This makes it attractive for varied project models and developing gas markets.
Buyers want to know how much gas the trailer can carry and at what working pressure it operates. These two factors shape delivery efficiency and project suitability.
Gas transport equipment must meet relevant standards, regulatory requirements, and project expectations. This affects not only legality, but also buyer confidence in long-term operation.
Customers also care about how reliably the trailer performs over time. Tube quality, chassis strength, valve layout, maintenance access, and structural durability all influence lifecycle value.
Stage | What Happens | Main Components Involved | Key Safety Point |
Filling preparation | Gas is compressed to required pressure | Compression system, valves, tube bundle | Confirm correct filling conditions |
Trailer loading | Gas enters the storage tubes in a controlled way | Tubes, manifolds, piping | Avoid unstable or rushed filling |
Pre-dispatch check | System status is checked before transport | Valves, pressure indicators, chassis | Confirm readiness for road travel |
Road transport | Gas remains sealed during movement | Tube bundle, support frame, suspension | Maintain structural stability |
Unloading | Gas is delivered to receiving equipment | Valves, manifolds, outlet connections | Control pressure during transfer |
A CNG tube semi trailer is not just a trailer carrying gas cylinders. It is part of a complete delivery process that begins with compression, continues through safe transport, and ends with controlled gas supply at the destination. For customers working with remote energy delivery, industrial backup supply, or virtual pipeline operations, Jiangsu Huayan International Trade Co., Ltd. provides transport solutions built for real gas movement needs, including CNG and hydrogen applications. If you would like to discuss project requirements, system layout, or transport configuration, contact us to learn more about a dependable CNG tube trailer solution.
Its main function is to store, transport, and deliver compressed natural gas by road to locations that need mobile or non-pipeline gas supply.
A liquid tanker carries fluid in a tank body, while a CNG Tube Semi Trailer stores gas in high-pressure tubes and works through controlled pressure-based loading and unloading.
It is commonly used in virtual pipeline projects, remote industrial supply, backup gas delivery, peak-shaving operations, and mobile gas distribution scenarios.
Most buyers focus on working pressure, gas capacity, standards compliance, structural reliability, maintenance convenience, and long-term operating value.
